Huang series
Focus Lighting Manufacturer
HUANG SERIES
Check different
Features:
Ultra Thin 48mm thickness
UGR<9 Anti-Glare design

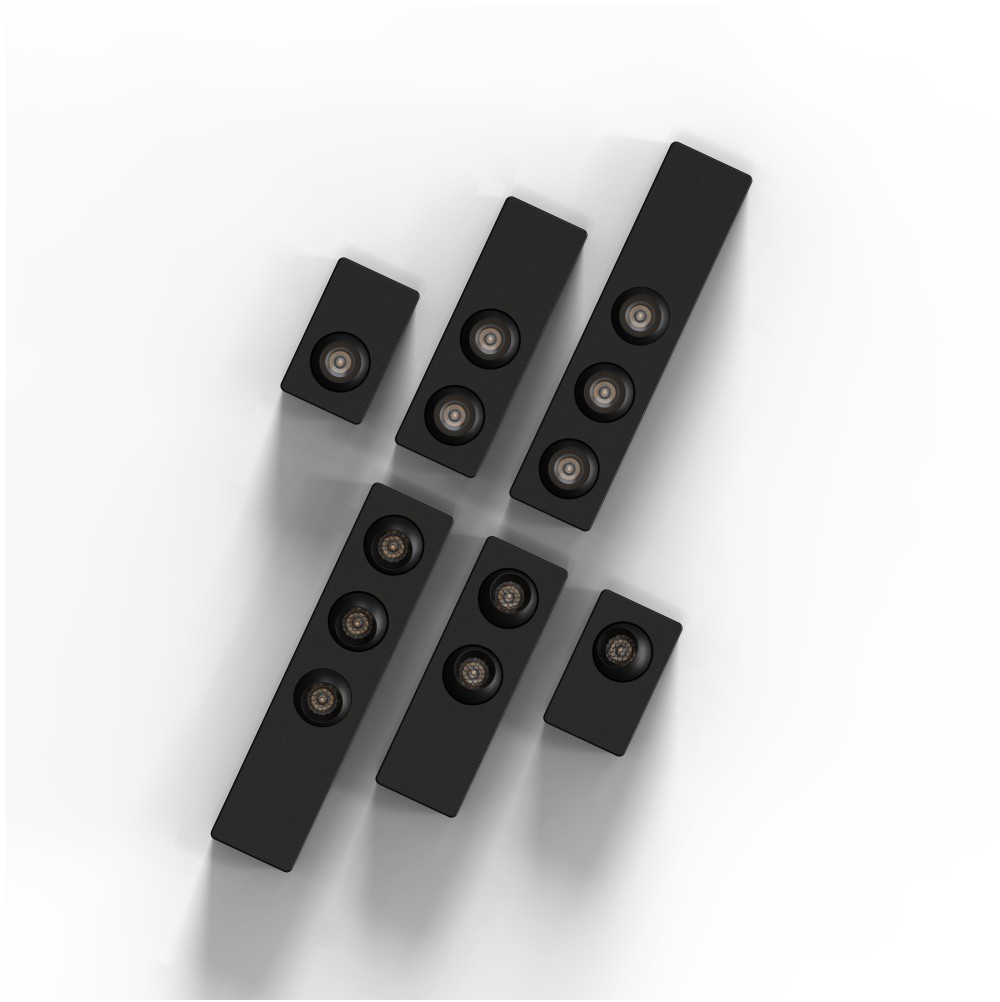

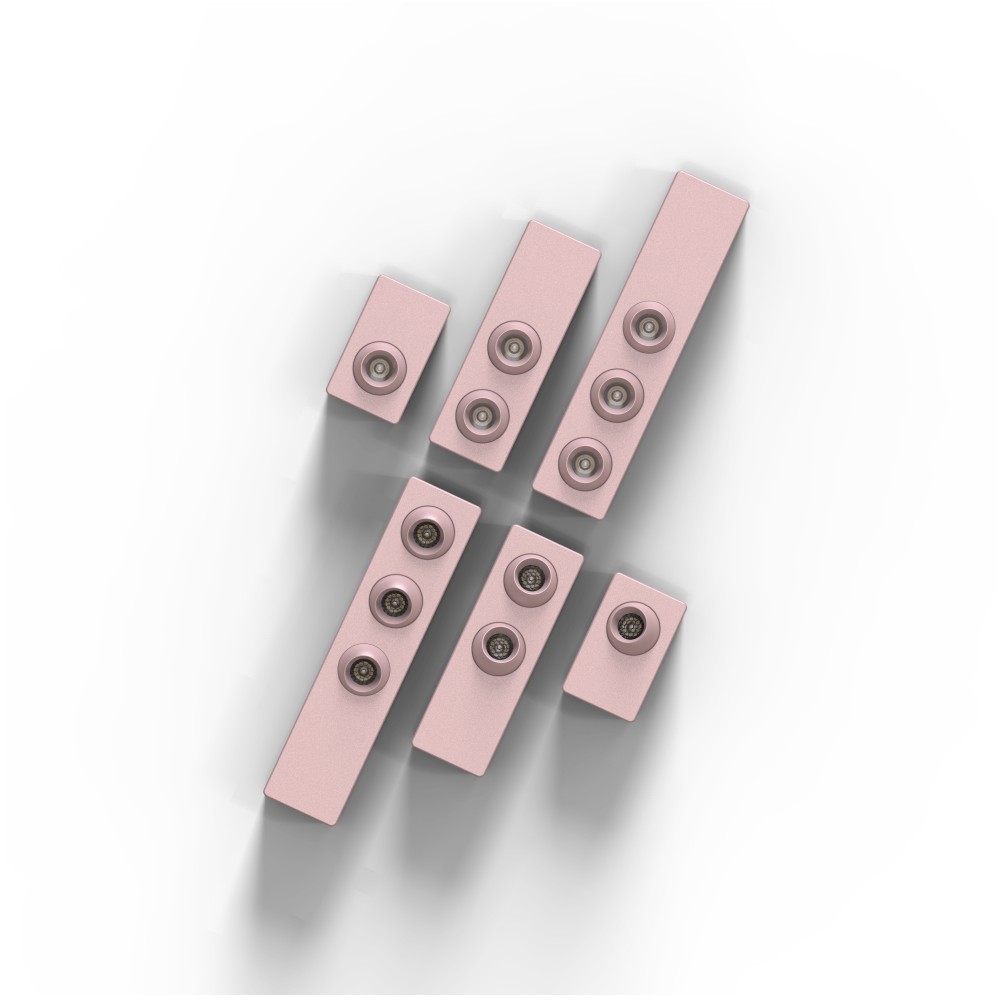

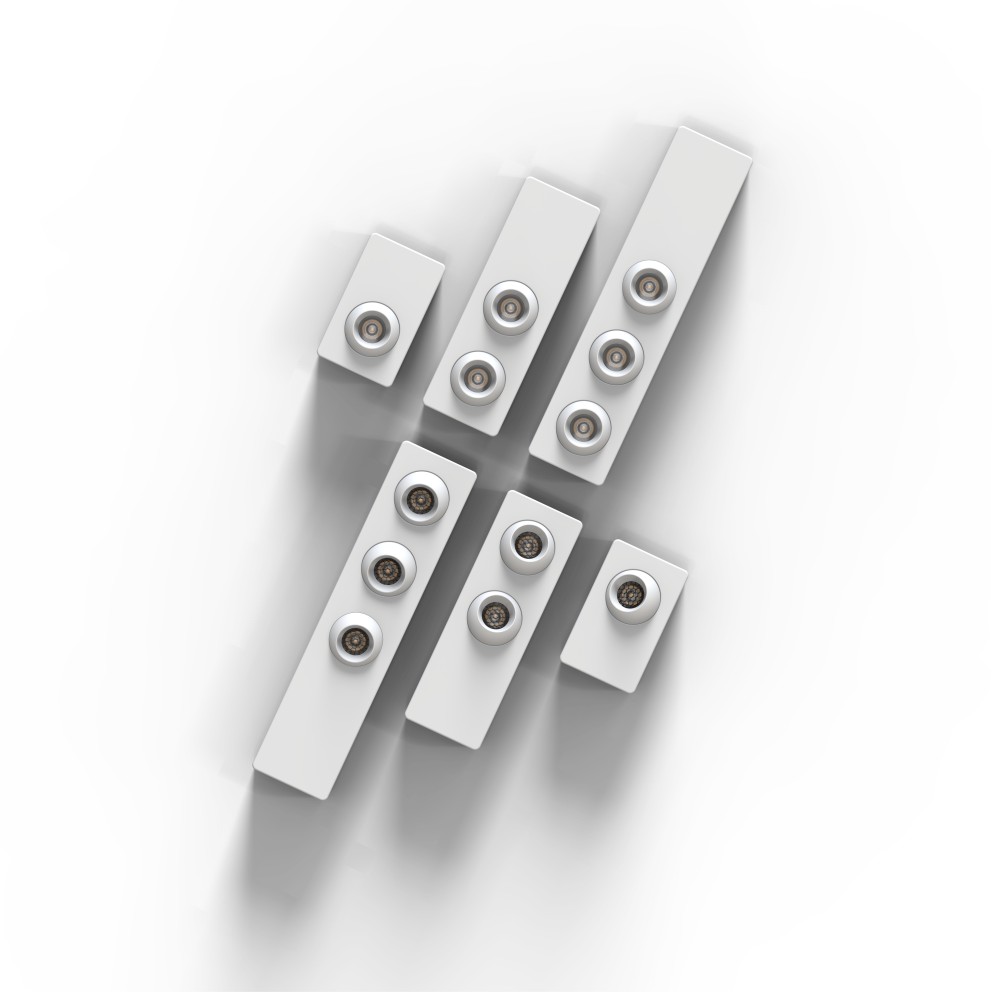

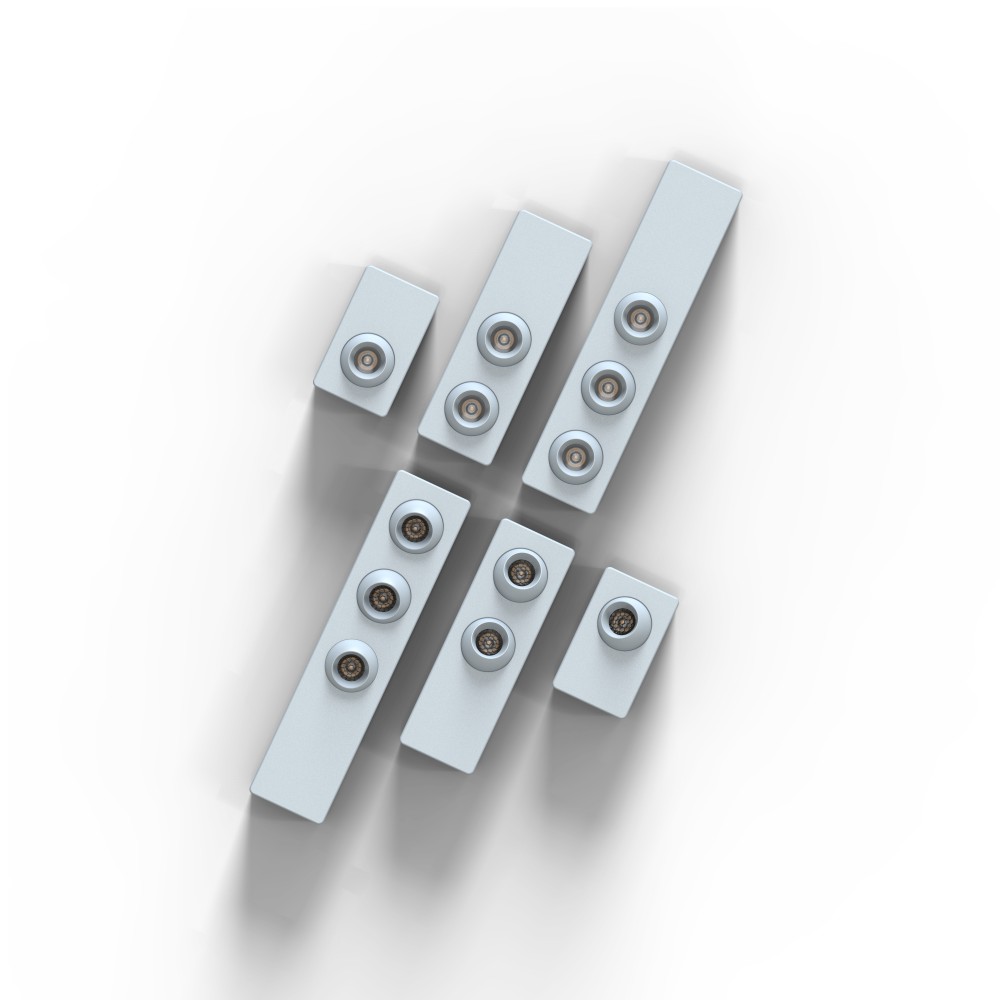

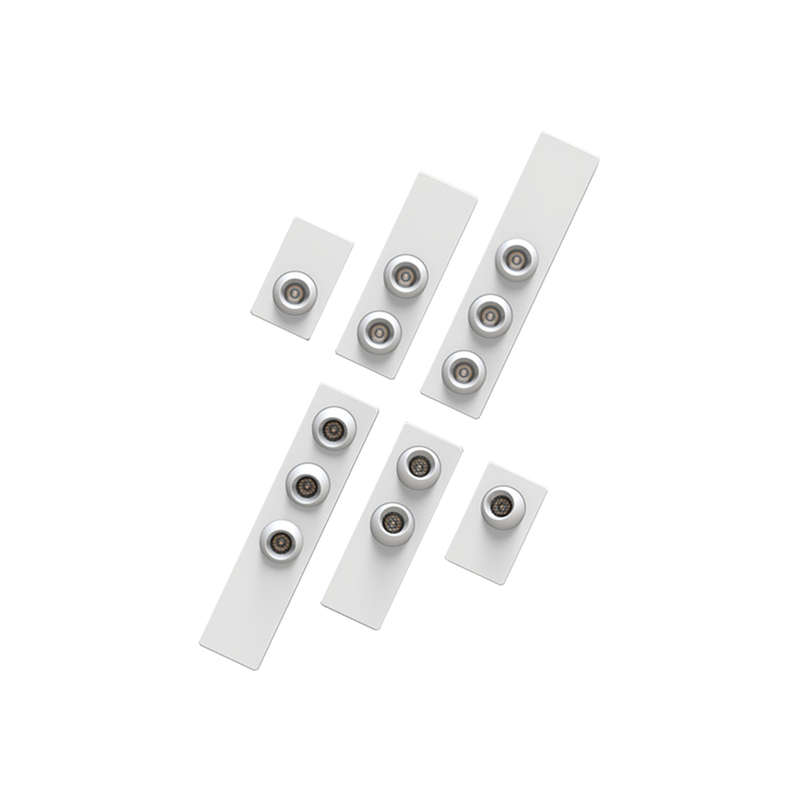

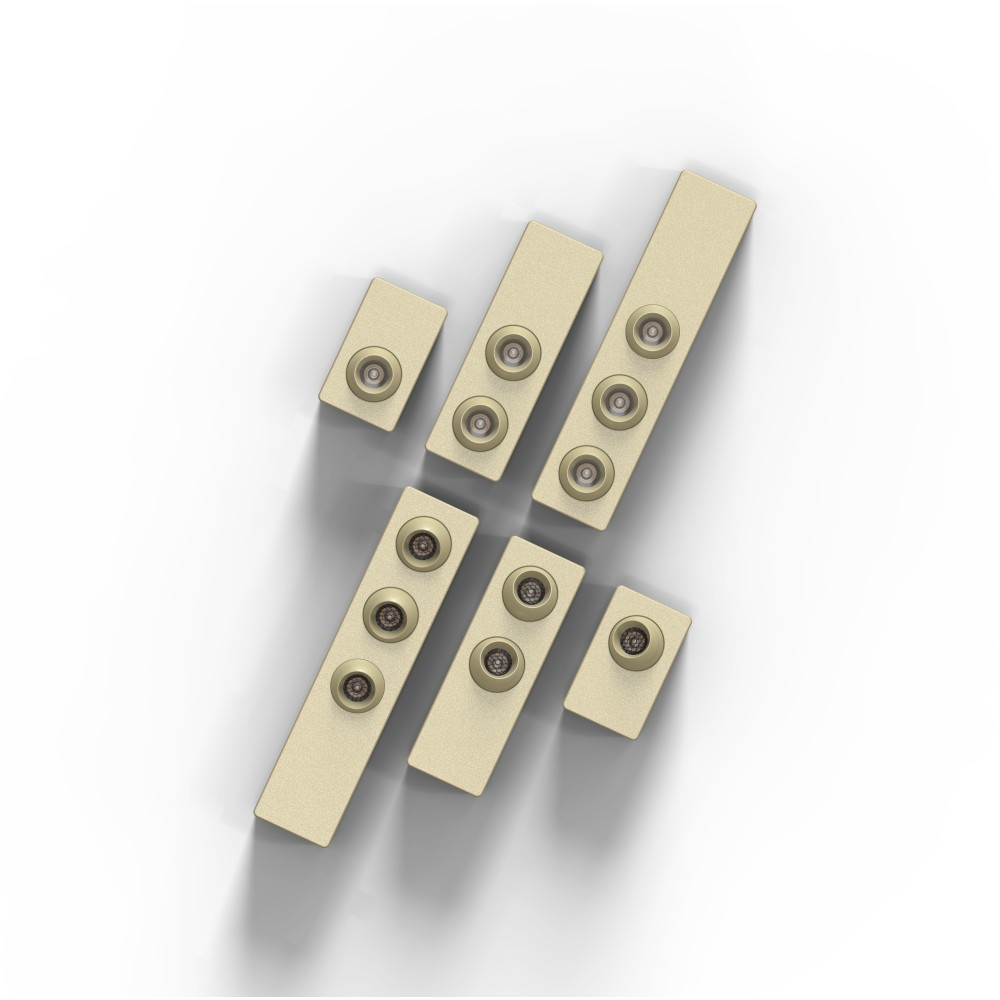

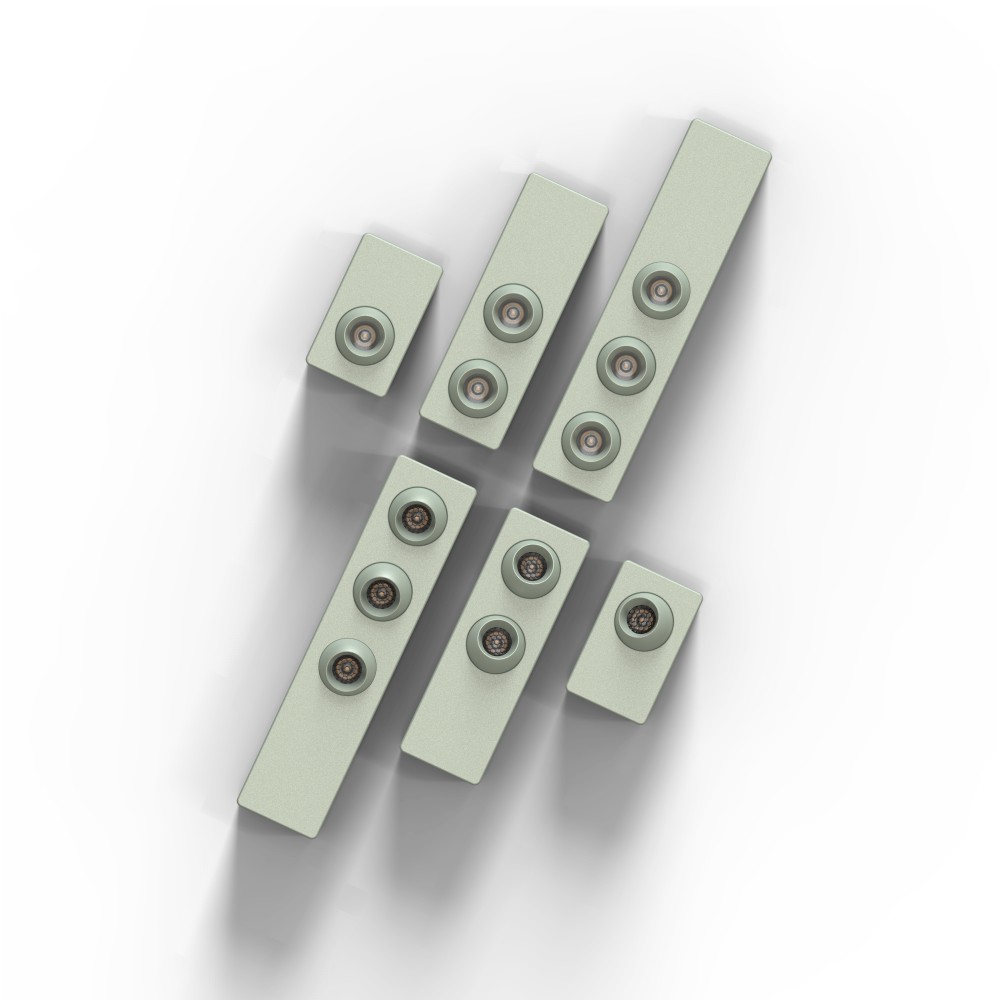

Aluminum body, 6 colors optional: White/ Black/Pink/Blue/Green/Yellow

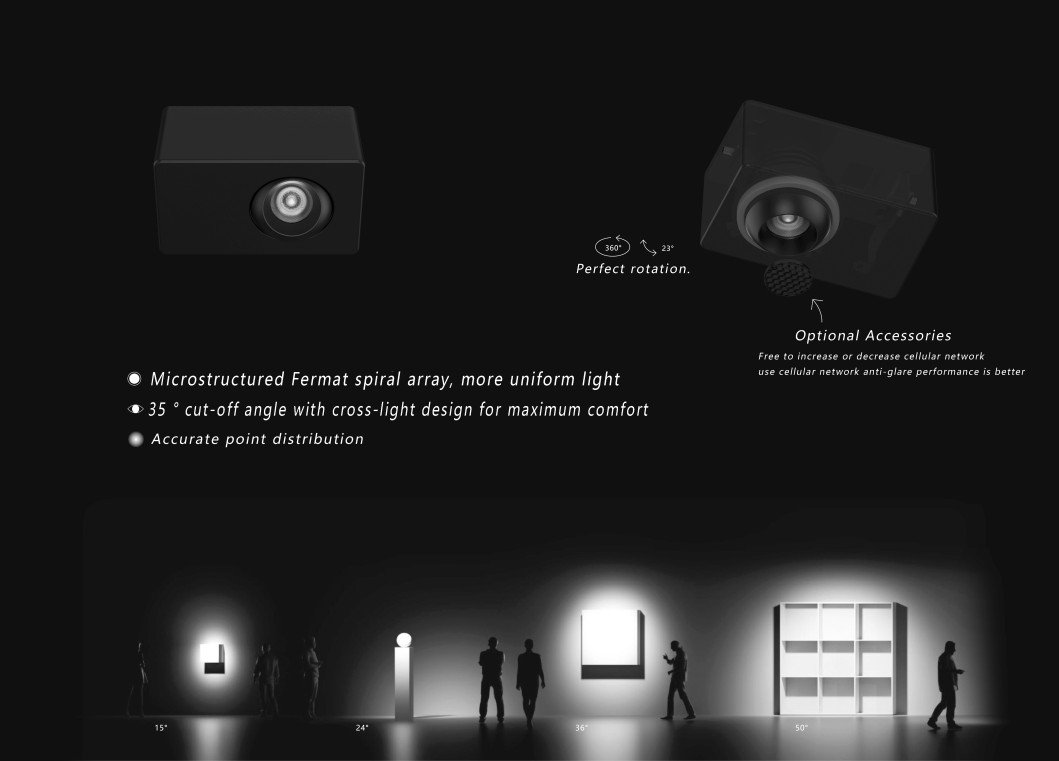

360° Rotatable, up and down 23° adjustable
Power: 5W, 10W, 15W, 30W, 40W, 60W
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：80lm/W
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)

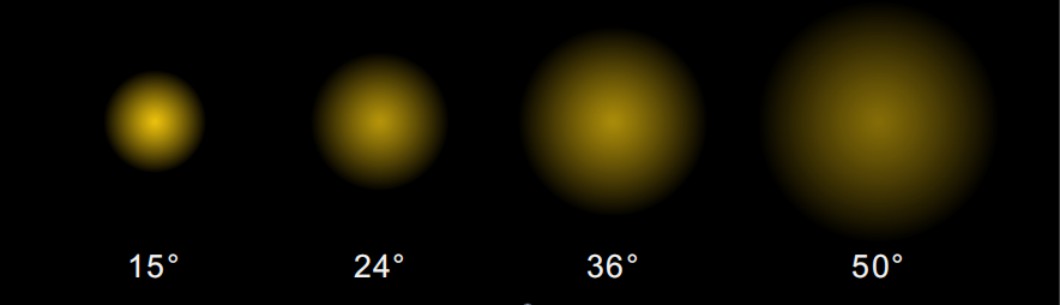

Beam Angle(°)：Lens 15°/24°/36°/50°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White/ Black/Pink/Blue/Green/Yellow
Warranty：5 years

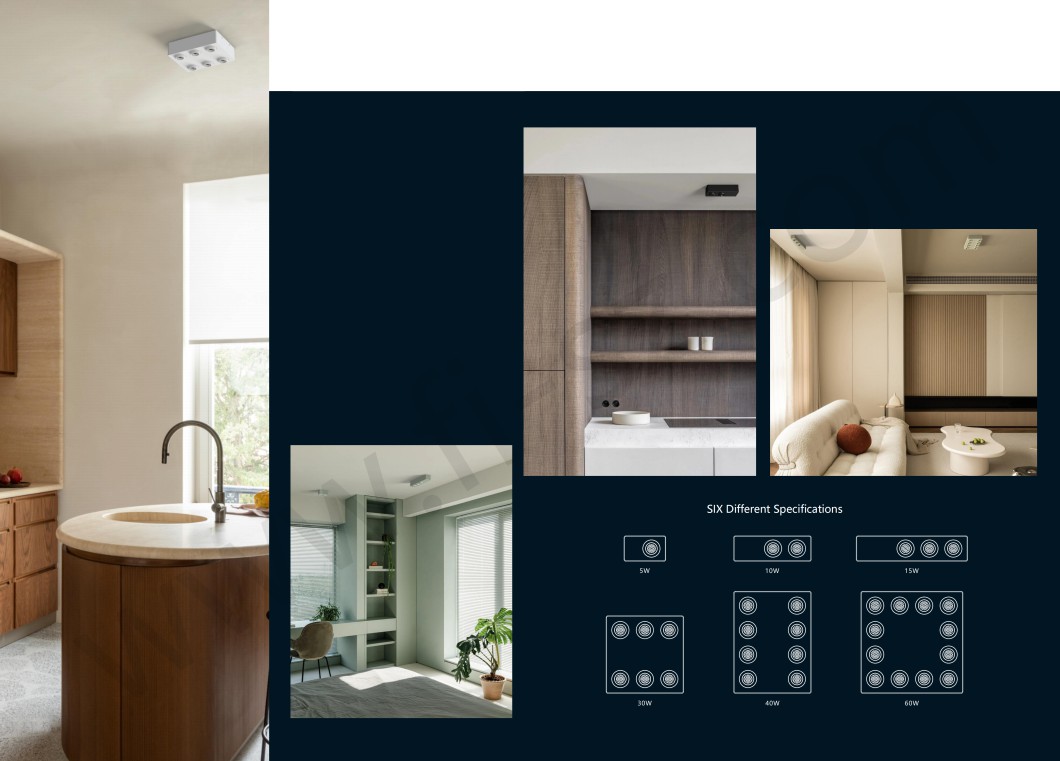

Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Surface Mounted | ||||

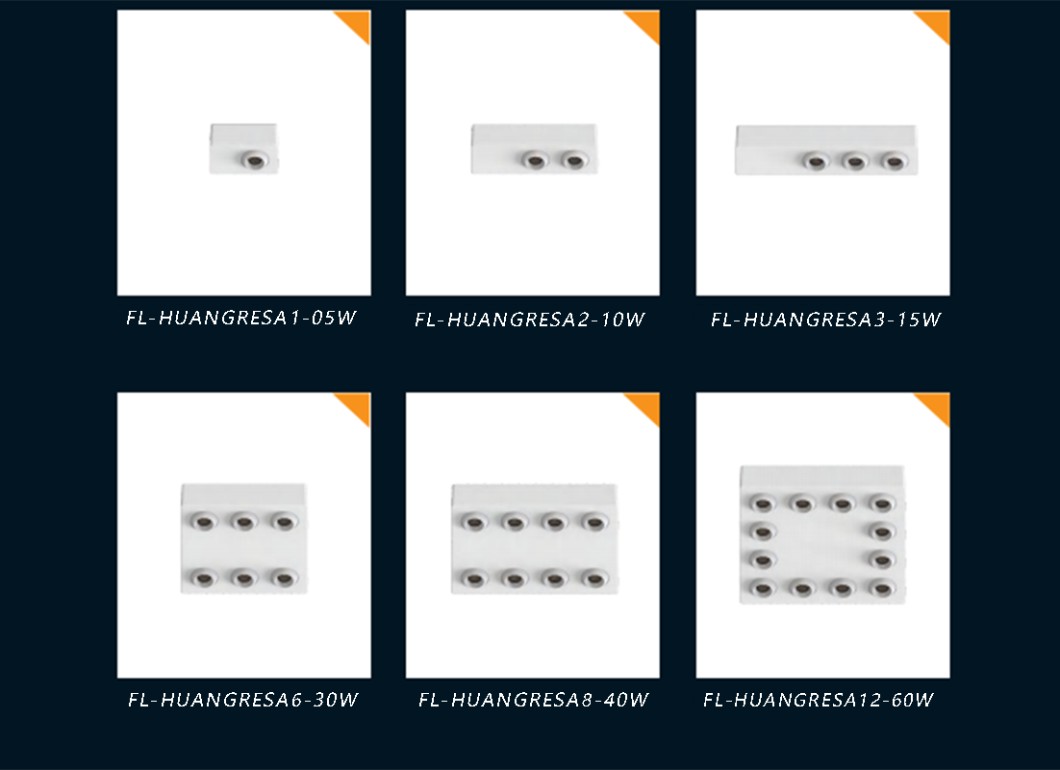

| Model | Power | Product Size | Direction | Shape |
| FL-HUANGRESA1-05W | 5W | L105*W64*H48mm | Adjustable 360° Rotatable,up and down 23° adjustable | Rectangle |
| FL-HUANGRESA2-10W | 10W | L195*W64*H48mm | ||
| FL-HUANGRESA3-15W | 15W | L280*W64*H48mm | ||
| FL-HUANGSSA6-30W | 30W | L195*W195*H48mm | Square | |
| FL-HUANGRESA8-40W | 40W | L257*W195*H48mm | Rectangle | |
| FL-HUANGSSA12-60W | 60W | L257*W257*H48mm | Square | |
Application：

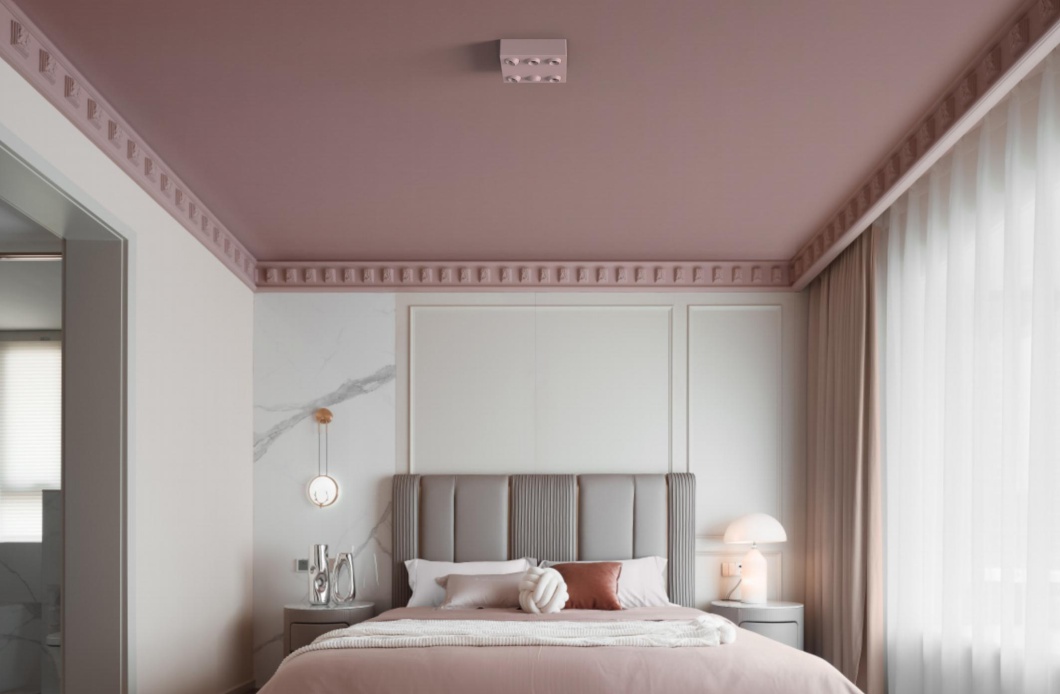

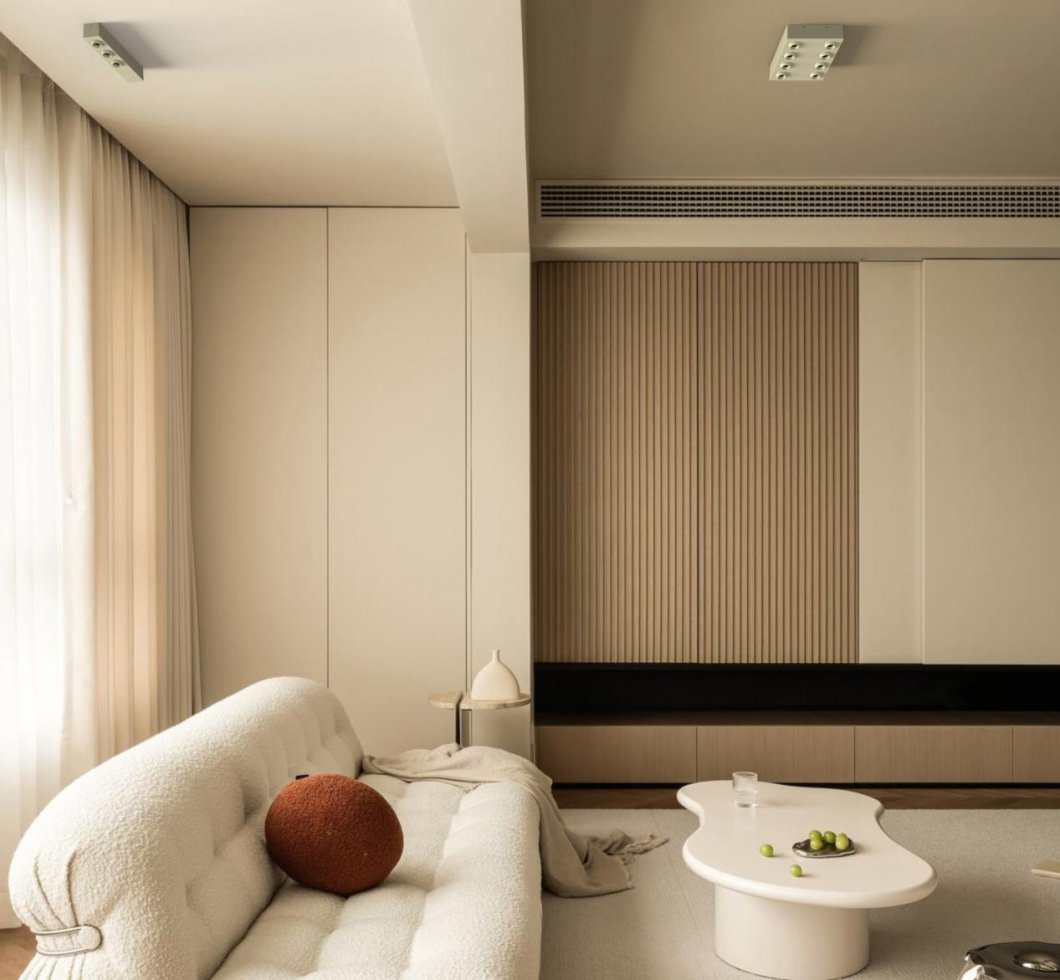

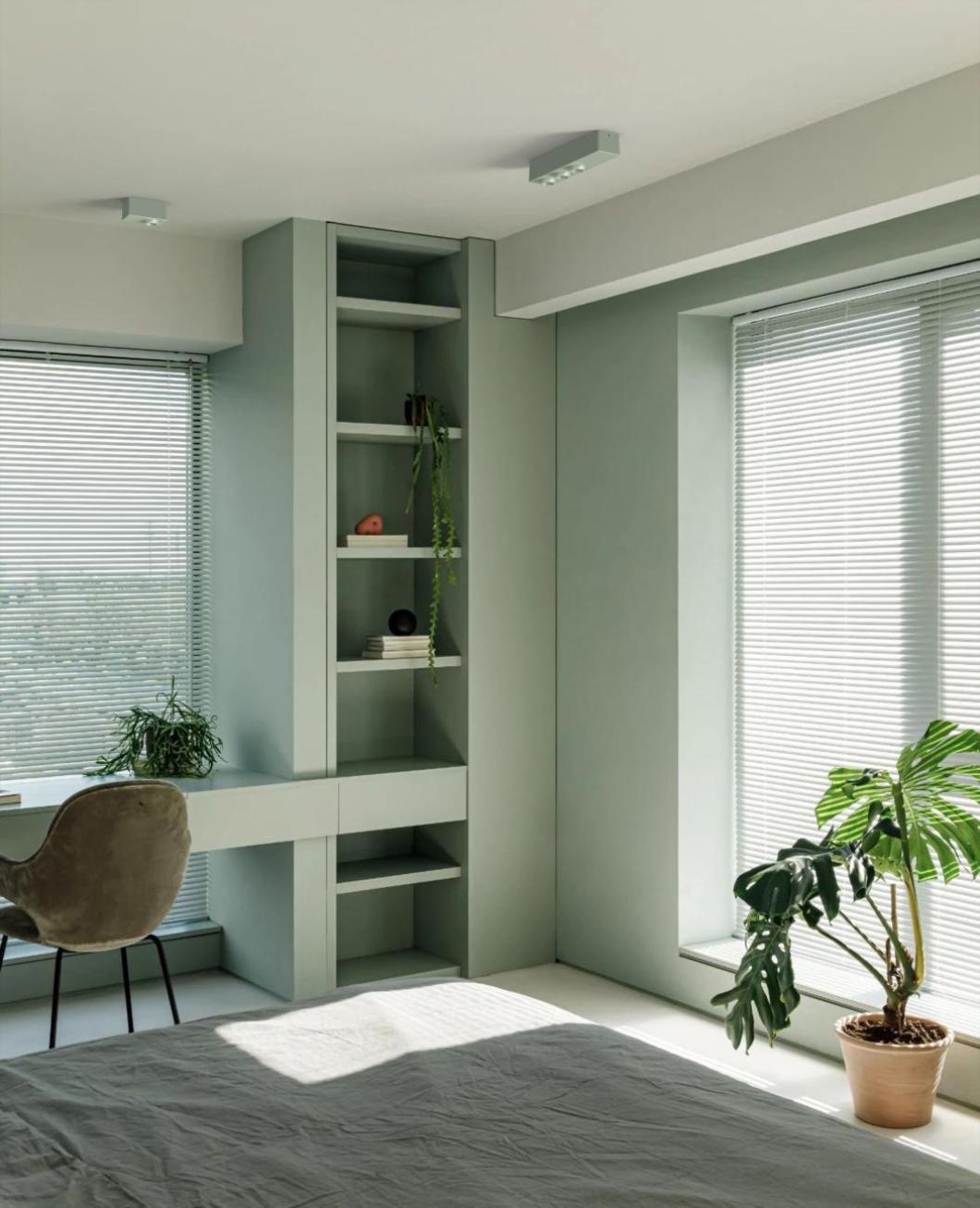

For villa project if your room decoration with different color, our lightings perfectly with your decoration. For example gril room like pink color, Boy room like blue color, Master room like white/ black colors.
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
