Magnetic Track Light

What's Magnet Track Light and How does it work?

Magnetic track lights use magnetic technology to attach the light modules to the track.The 8 contact points on the light fixture's track head make an elastic connection with the 8 conductive strips inside the track to power the lights.
Two magnets on the light fixture head and the iron piece at the bottom of the track attract each other to secure the fixture.
The low-voltage power supply is within a safe range,allowing you to touch the track to move or adjust the lights easily and quickly. The diversity of the track suits any ceiling type and can be installed in a recessed, surface

mounted, or suspended manner.
The variety of light fixtures allows for versatile combinations in any space. This design makes magnetic track lights highly flexible and adjustable, making them the preferred choice for villa and home lighting designers.

Magnetic Tack Lighting Manufacturer

100% magnetic track lighting factory located in Shenzhen, China. Shenzhen is a young and smart city, famous for high technical. Our factory combine Shenzhen's features focus on smart lighting produced. Dali CCT tunable system,

Tuya smart home, 0-10V CCT Tunable Triac dimmable, Philip Hue, Casambi and POE lightings.

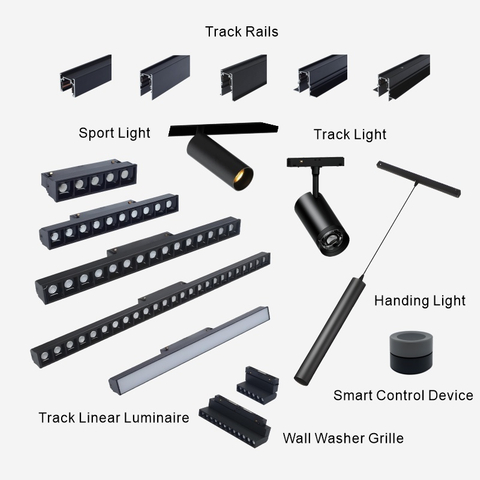

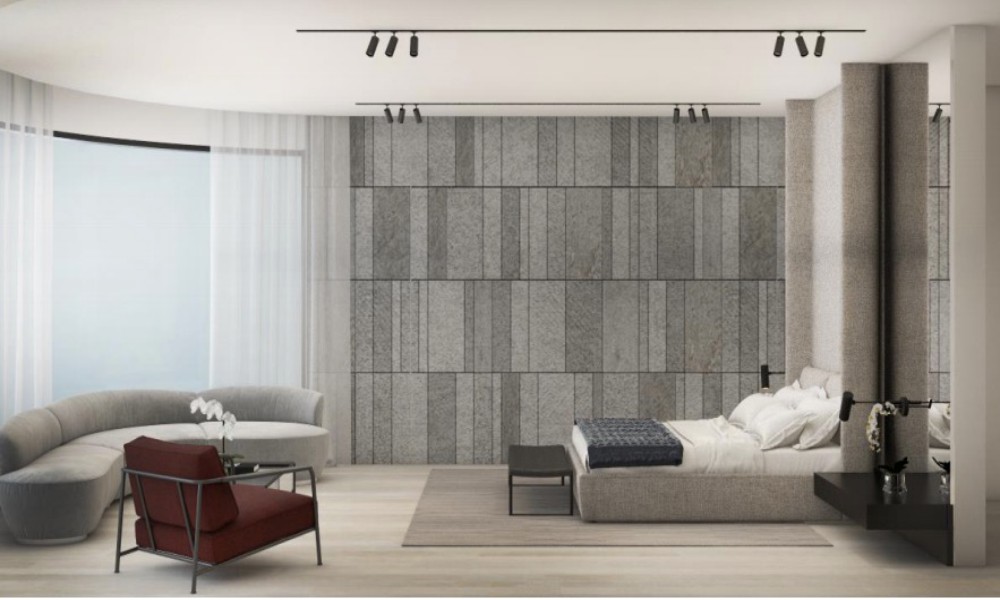

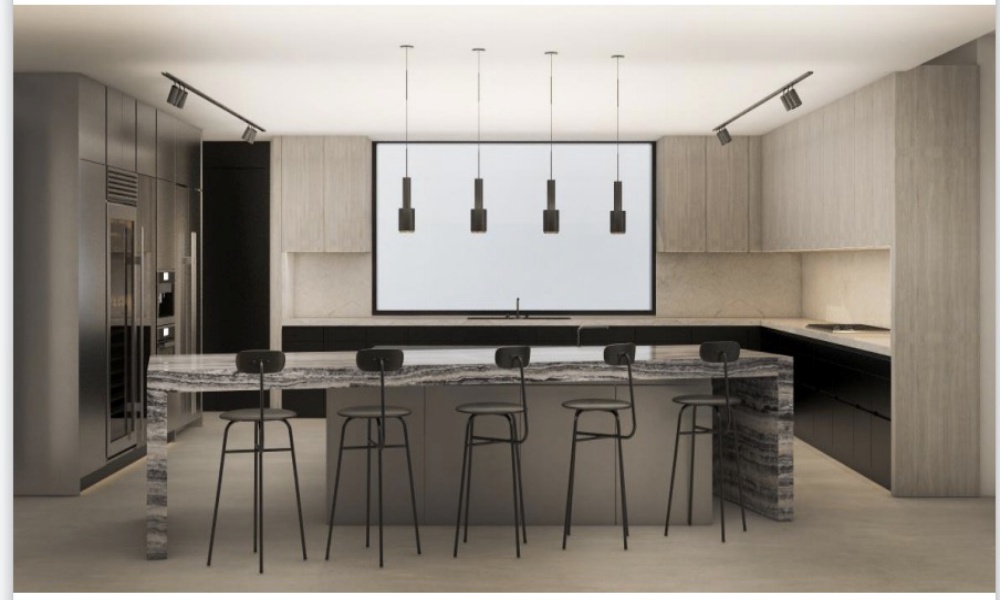

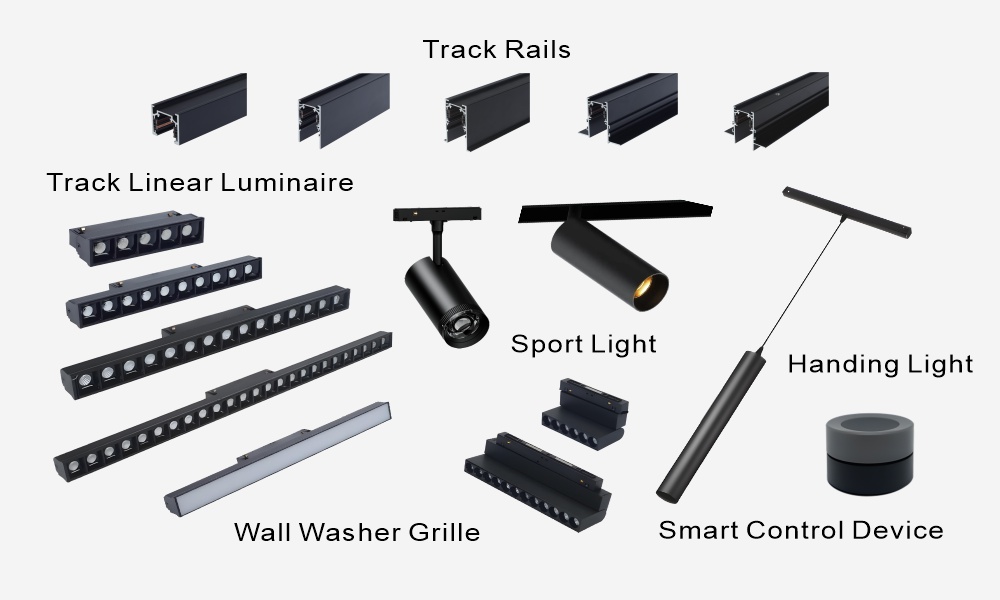

Villa, high ceiling 4-6 meters commercial building---M35 Hu series is your best choice

Features：

1. 4 wires track rail reach to more functional with dimmable and CCT tunable 2700-6500K, RGB color, 1800-4500K customized.
2. Work with DALI, TUYA, Philip Hue smart control achieve single lamp control.
3. 5 different Track rails for all different ceilling installation.
4. Bigger size track rail on high ceiling looks elegant on villa and commercial buildings.
5. Track rail Max 16A can bear 768W more lighting modules.
6. M45 Strong Magnet reach to 85℃ , more safety to fix the lighting fixtures.
7. Include I, L, T, X connectors, DIY lighting design no limited.
8. Bluetooth speaker work with system relax your mind.

Request Sample Box

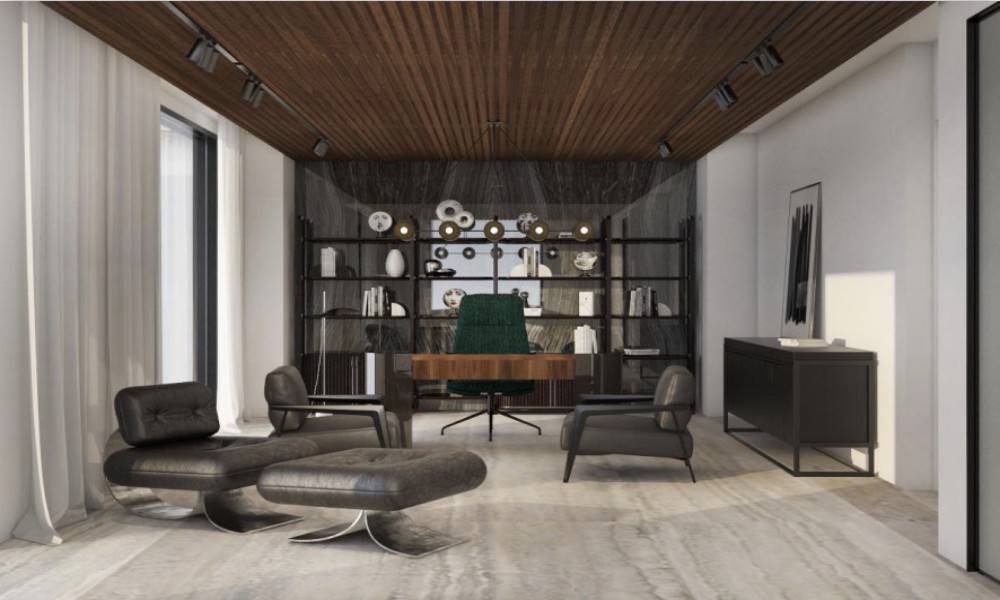

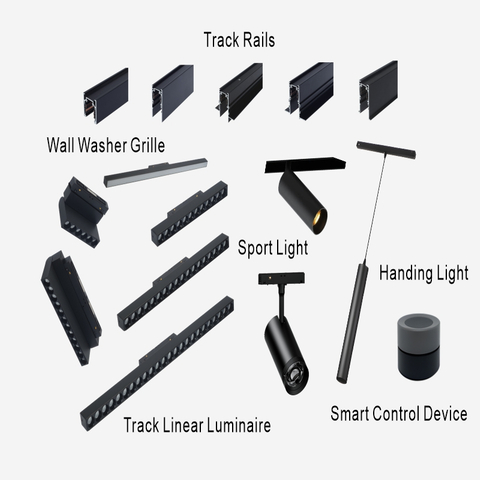

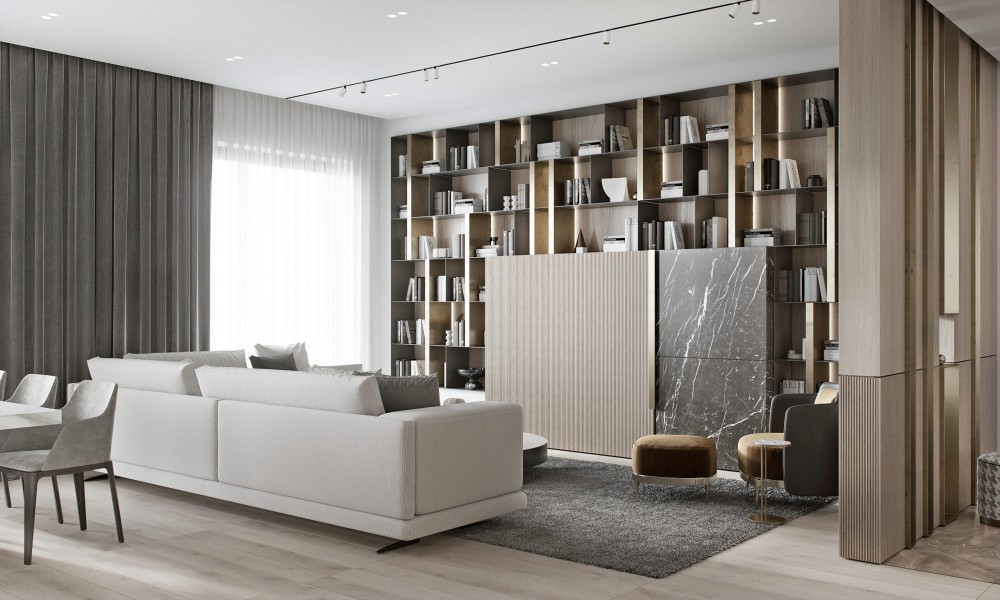

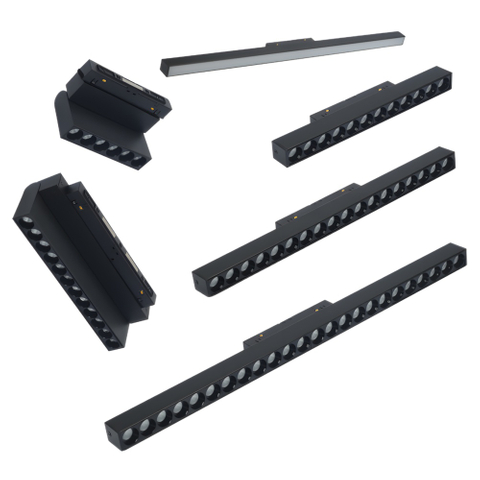

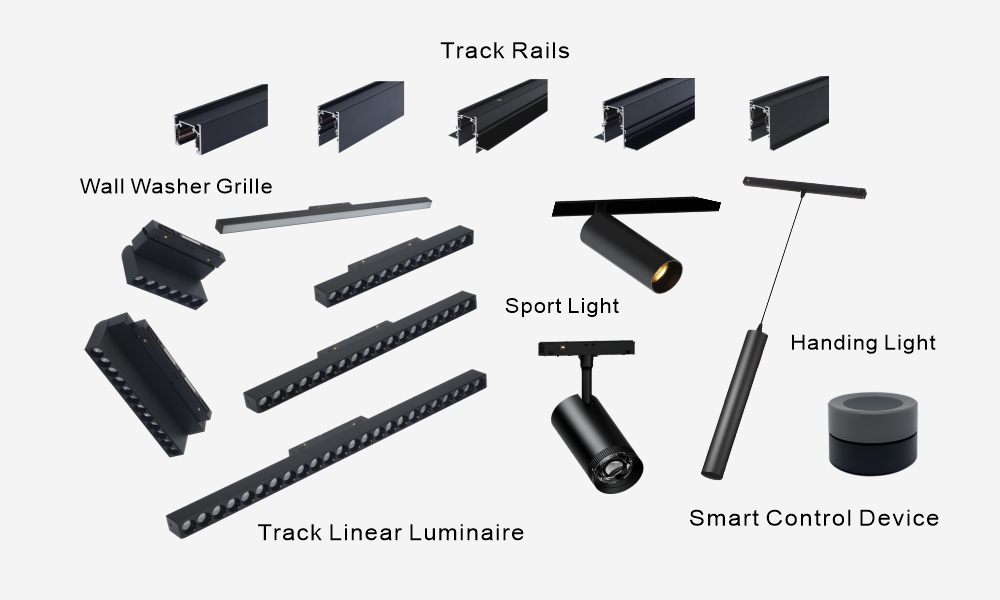

Residential smart home --- M20 Zhu series is your best choice

Features:

1. Smart house with app control, center panel control, voice control. Work with Tuya app, smart life app, Yandex, Alexa, Google, Smart things, Philip Hue.
2. 4 wires track rail more functional with dimmable and CCT tunable 2700-6500K, RGB color, 1800-4500K customized.
3. Bluetooth speaker relax your mind, watch movie and listen music.
4. Middle size track rail more economical price with lower shipping cost reduce your import cost.
5. 5 different Track rails for all different ceilling innstallation
6. Safty to touch and remove lightings, you can adjust the lighting positions and change lighting design as you like at any time.
7. Convinent for maintain and repair.

Request Sample Box

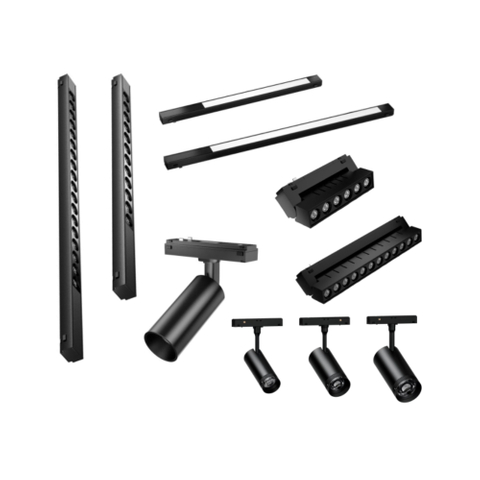

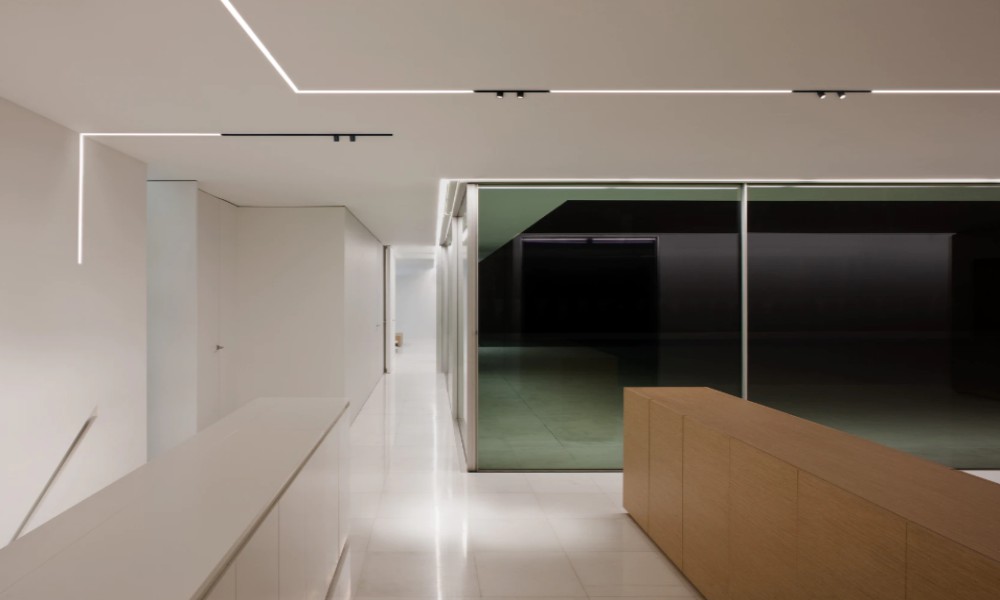

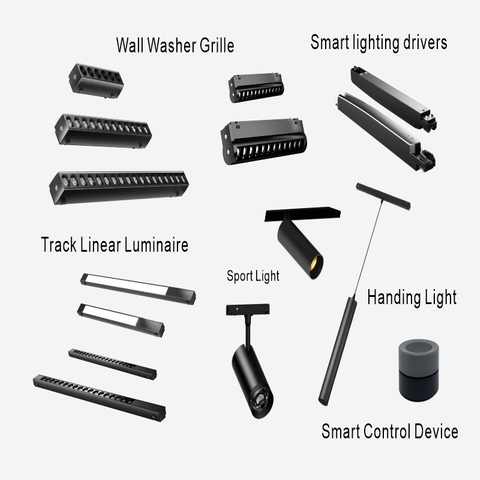

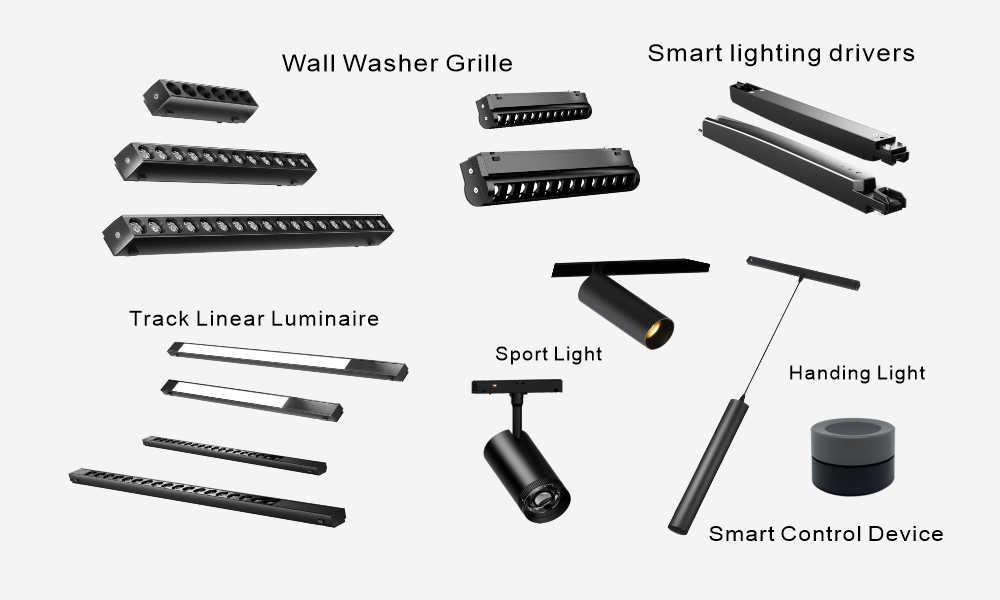

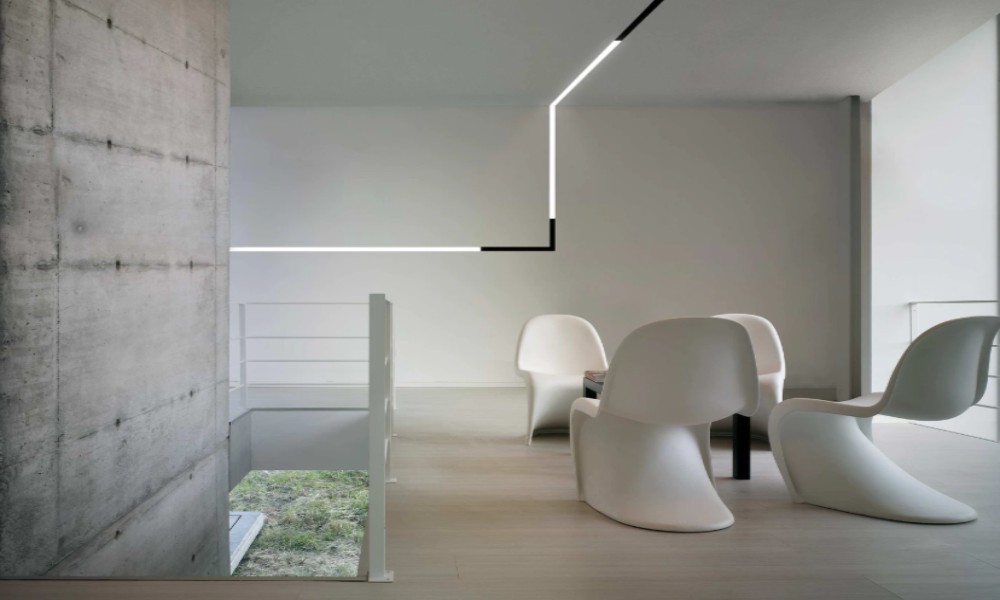

Low ceiling 2-2.5m or retrofit building---Ultra Thin Tang series is your best choice

Features:

1. Ultra thin Surface and Pendant track rail is easy to install, no need to broken your current ceiling.
2. 2 wires track rail can reach to Tuya smart control, dimmable and color change from warm white to cool white.
3. Best economical solution for retrofit buildings.
4. Include I, L, T, X connectors, DIY lighting design no limited.

Request Sample Box

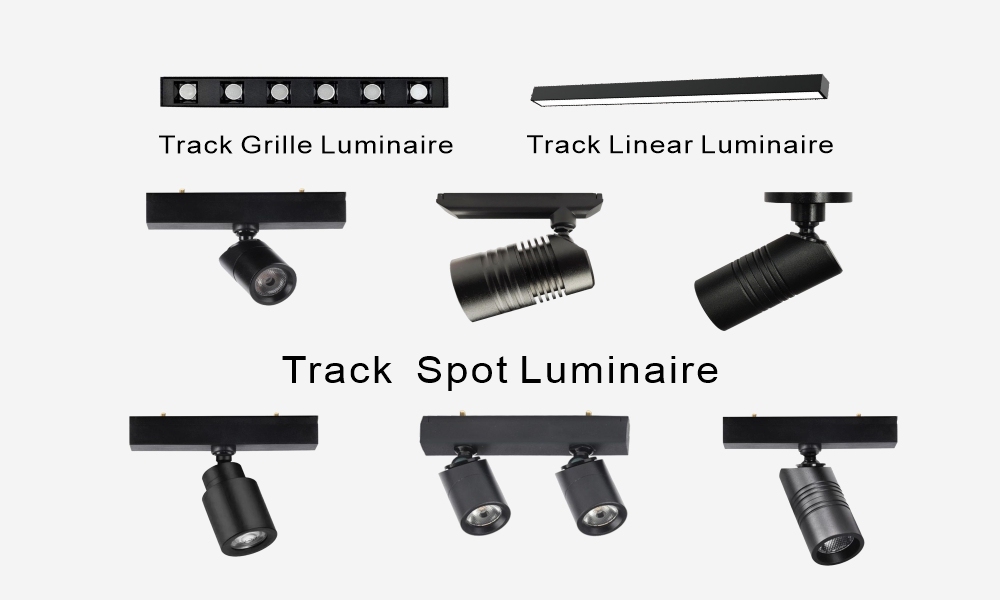

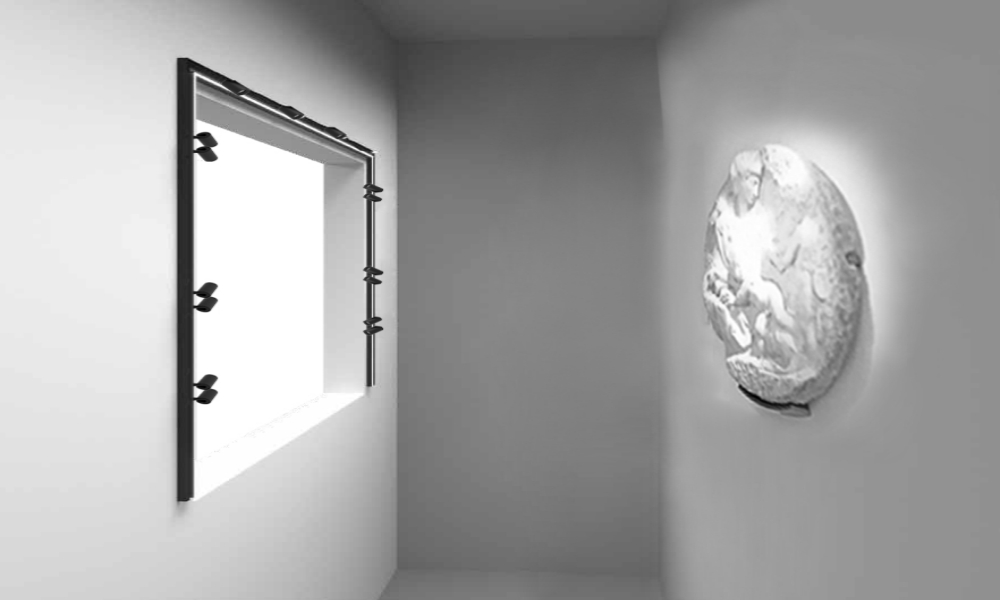

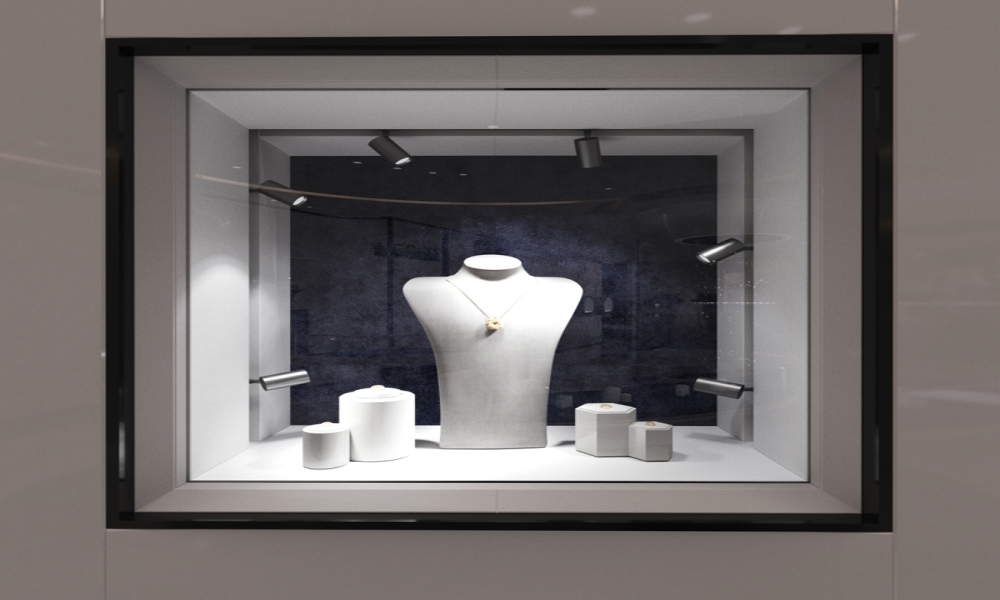

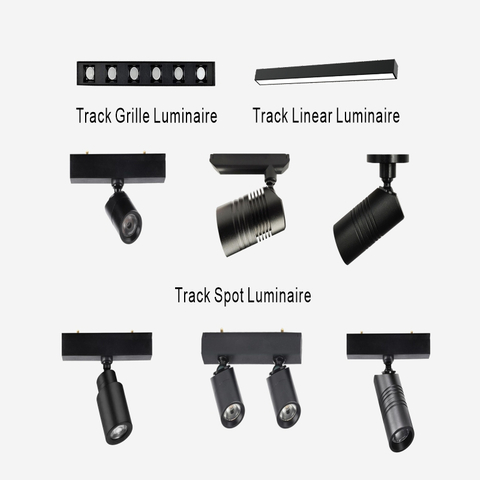

Jewelry store, Cloth Store, Museum Display Showbox---Mini Li series is your best choice

Features:

1. Surface, recessed and stand installation perfect for all display showbox.
2. 4 different lighting modules DIY design according to different size and shape dispalybox.
3. Dimmable and non-dimmable functional optional.
4. Warm white color for golden, cool white color for Diamond. Different color based on your goods make your goods looks more valuable.

Request Sample Box

4 Types of Magnetic Track Lights Comparisons

There are 4 different types of magnet track lighting. You can choose the right series from your applications, functions and project budget. Below chat is the comparisons for your better understanding and make the right decesion.

What’s Difference between 4 types of magnet track lighting?

Comparision	M35 Hu Series	M20 Zhu Series	Ultra Thin Tang Series	Mini Li Series
Application	Villa,Commercial with high ceiling	Commercial and residential	Low ceiling and retrofit building	DIsplay showbox for stores and museum
Track Rail Width/Thickess	36mm inner cooper 22mm	36mm inner cooper 16.5mm	Width 27mm thickness 8.5mm	Width14mm thickness 6mm
Installation Way	Recessed, Surface Suspension	Recessed, Surface suspension	Surface suspension	Recessed,Surface suspension
Connectors	I.L.X,T	I,L	I.L.X,T	I, L
Suitable for ceiling height	4-6 meters	3 meters	2-2.5 meters	1 meter

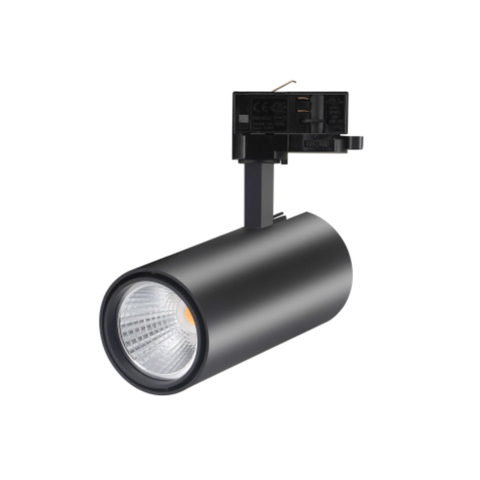

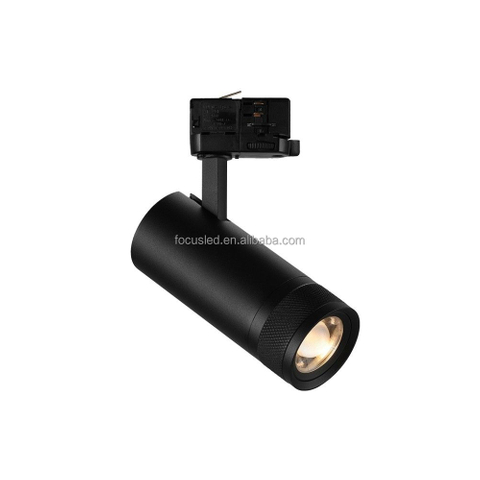

lighting module options	LED Linear Light, Grille light, Wall washer lighing,Spot light, Zoomable track light,Pendant light	LED Linear Light, Grille light, Wall washer lighing,Spot light, Zoomable track light,Pendant light	LED Linear Light, Grille light, Wall washer lighing,Spot light, Zoomable track light,Pendant light	LED Linear Light, Grille light, Spot light, Zoomable track light
functional options	Tuya, DALI.Philip Hue.Dimmable and CCT Tunable	Tuya, DALI.Philip Hue.Dimmable and CCT Tunable	Tuya smart Dimmable and CCT Tunable	Dimmable
Copper wire quantity	4 wires	4 wires	2 wires	2 wires
Types of Power-onPrinciple	Internal/ External driver	Internal/ External driver	Internal driver	External driver
voltage	DC48V/DC24V Optional	DC48V/DC24V Optional	DC48V	DC12-24V

Video call now to check difference by showroom

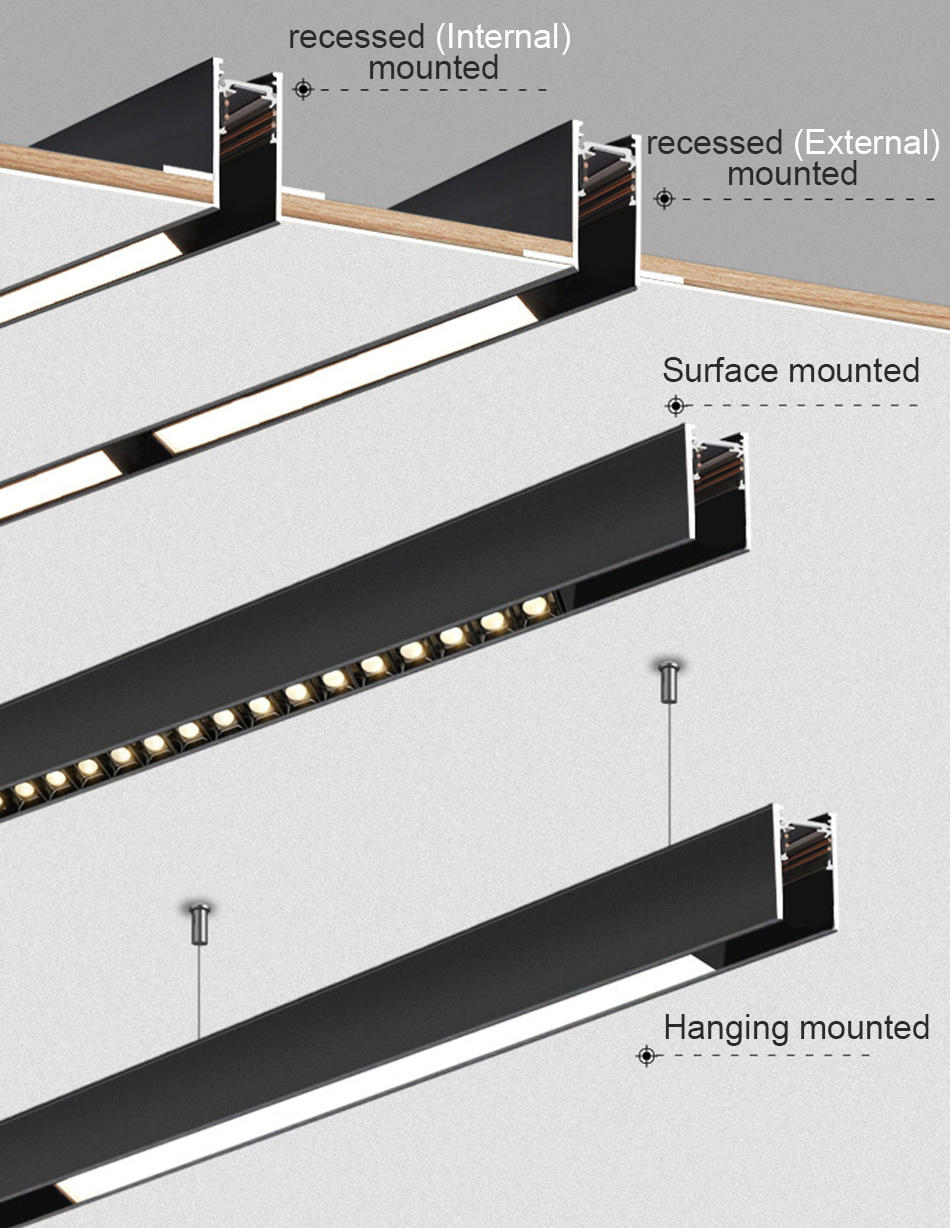

Magnetic Track Light Installation

There are 5 different track rails so have 5 different installation ways. Magnetic track light ceiling Recessed with trimless EMT models is the most popular track rail. Below video and installation instructions would be helpful for you.

Magnetic Track Light Ceiling Recessed With Trimless:

Recessed Track Lighting With Batch Ash:

Step :
1. Ceiling cut hole width according to track width.
2. Put the track into the slot and fix the track on the ceiling with M4 tapping screws
3. Install gypsum board on the track, block both sides of the track, and use the screws to fix.
4. Batch ash 2-4 times, so that it is flush with the ceiling

Step :
1. Ceiling cut hole width according to track width.
2. Put the track into the slot and fix the track on the ceiling with M4 tapping screws
3. Batch ash 2-4 times, so that it is flush with the ceiling

Recessed Track Lighting With Batch Ash:

Surface Mounted Magnetic Track Light:

Pendant Lighting Installion:

Step :
1. Ceiling cut out size according to track width and height.
2. Put the track into the slot.
3. Fix the track on the ceiling with M4 tapping screws

Step :
1. Drill holes on the wall to install expansion bolts.
2. Fixed the rail to the wall used the screws.

Step :
1. Drill holes on the wall to install expansion bolts.
2. Fixed the base of ropes onto wall or ceiling.
3. Inset the ropes into the track rail back side to fix.
4. Adjust the length of ropes.

Download Installation Instruction

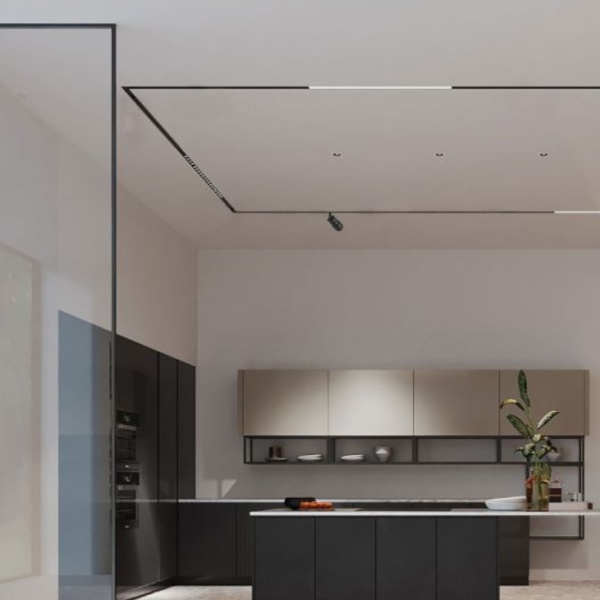

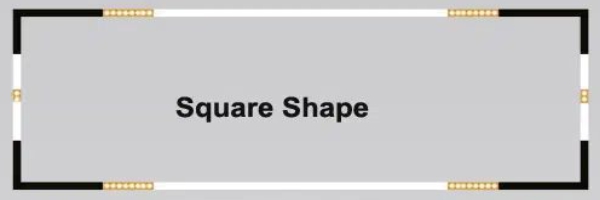

Magnetic Track Light Design And Application

Magnetic track lighting combines functionality with stylish design, making it popular with interior designers. The system allows for easy installation and adjustment of individual fixtures, ensuring minimal installation hassles while allowing for frequent reconfiguration of fixtures without rewiring. Ideal for highlighting artwork, creating ambient lighting or illuminating specific areas, magnetic track lights are popular in galleries, retail spaces and modern homes. Their low-profile appearance and adaptability make them a seamless choice for evolving interior designs that are both beautiful and functional.

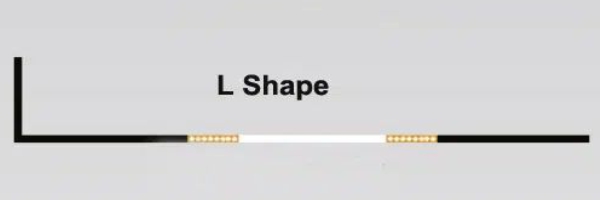

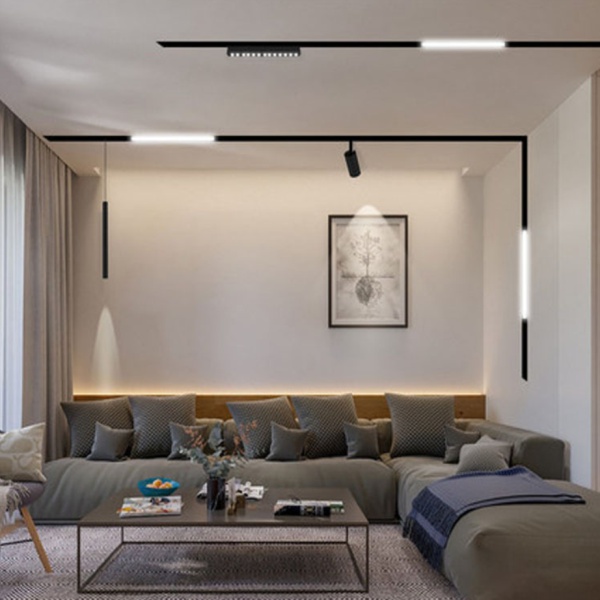

L Shape Design

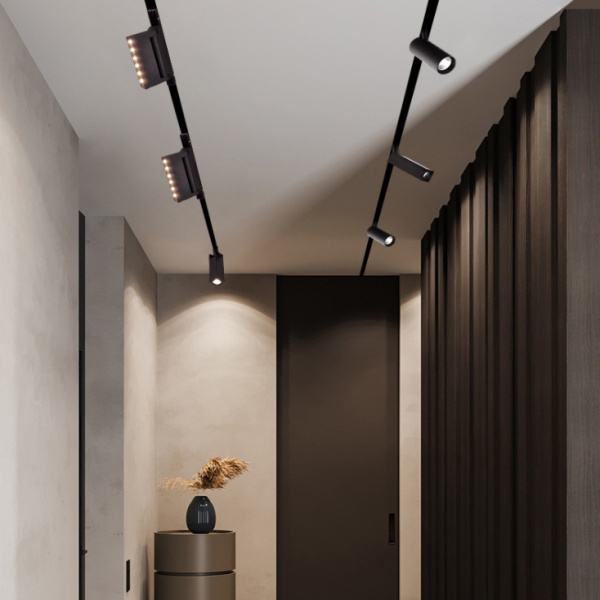

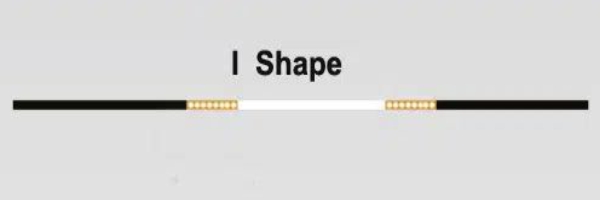

I Shape Design

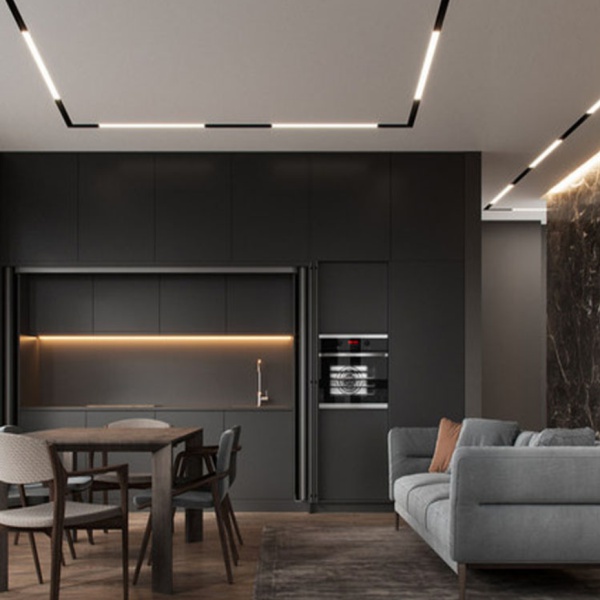

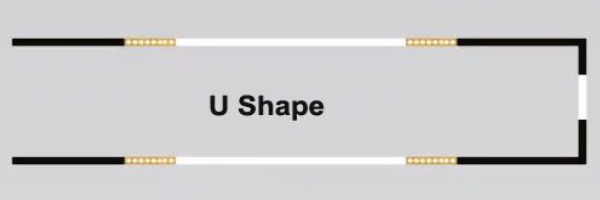

U Shape Design

S Shape Design

Smart Magnetic Track Light Different Functional

Magnetic track rail has 4 wires, 2 wires are L and N. 2 wires are signal wires. It can reach many different functions by 2 signal wires working with smart drivers. Like DALI, Tuya, Philip Hue, Triac dimmable, or 0-10V dimmable. Also LED chips range color temperatures from 1800K-25000K, even RGB, and RGBW. So it can achieve adjustable brightness and color temperature in different spaces and applications.

Magnetic Track Light VS Traditional Track Light

Magnetic track lights represent a new design trend that has only recently gained popularity, becoming favored by interior lighting designers. They are primarily used in new constructions. Traditional track lights, having been developed over many years, are very common in both commercial and residential buildings. There are many differences between them. The following list of differences can help you better understand their applications, characteristics, and functions.

Magnetic Track Light VS Traditional Track Light, which solution is best for you?

Request Sample

1. Magnetic track light is DC48V/ DC24V low voltage system, more safe.Traditional track light is AC110V / AC220V high voltage system, need professional electrical workers to install, maintance and repair.

2. Magnetic track light fixed with strong magnet, lightings can be moved on the track. If finished the installation, the owner not satisfied with lighting design, they can adjust the lighting positions and lighting decoration according to real application. Traditional track light fixed with track head's lock to the rail, lightings are locked. If want to change the position, has to be made by professional electrical work.

3. Magnetic lighting system have many different track rails for different ceiling, many different lighting modules to be chosen combine to work DIY different decoration style. Traditional track lighting system mostly have 2 track rails, recessed, surface and suspension, mostly track light modules， simple and single design.

4. Magnetic track lighting easier to achieve more functional than traditional track lighting. Like Tuya smart, Philip Hue, DALI CCT tunable, 0-10v CCT Tunable, Triac dimmable, work with POE system and other Niche Integrated Systems. But high voltage traditional track lighting functional mostly according to driver's functional in the market, Customized functional is limited.

Which solution is best for your project according to your project's requirement and budget. Normally magnetic track lighting system budget is higher by 15%-25% than traditional track lighting system if same track rail length and lightings.

Contact Magnetic Track Lighting Factory Now

Our sales are professional in lighting knowledge and dedication to serving customers. They are working in a factory. They can follow your order status and update you at any time you need. They accept quality inspection when you need it. They are empathetic and can help customers resolve issues quickly when needed.

FAQ

Q Do you accept OEM/ODM Bespoke products？

A
Do you accept OEM/ODM Bespoke products？

Yes, we support OEM/ODM service and also bespoke products.
Q Are your lighting system compatible with only yours or also others in the market?

A
Are your lighting system compatible with only yours or also others in the market?

M35 Hu Series private module is only compatible with our lighting system.

M20 Zhu series, Ultra-thin Tang series, and Mini Li series magnet lighting systems are compatible with most track rails in the market.
Q How to calculate your magnetic lighting system project's total import budget?

A
How to calculate your magnetic lighting system project's total import budget?

Step 1: Choose the right track rail according to your installation way, recessed, ceiling, or hanging?

Step 2: Choose the right lamps according to design style and client's budget.

Step 3: Choose the right accessories according to the lighting layout.

Step 4: Calculate shipping cost + import tax.
Q What you can get from when cooperating with us?

A What you can get from when cooperating with us?
1. 100% factory price. Under the same quality standard, the price from the factory must be competitive.

2. Work with the factory, you can get the newest product's information for the first time. Every new product only has 1-2 years of profit time. You are here.

3. You can get our full support, from the promotion of high-resolution images, videos, documents, and IES test reports, to fast responses to your questions and problems solved.

4. Quality more reliable.

5. Fast delivery time.
Q How to identify and cooperate with real manufacturers to reduce your costs?

A
How to identify and cooperate with real manufacturers to reduce your costs?

1. Video call for inspection of your order any time you need.

2. Your questions could be instant and professional replies, and your problems could be quickly solved.

3. Sales could be a professional service for you to avoid risk and help you reduce the import cost.
