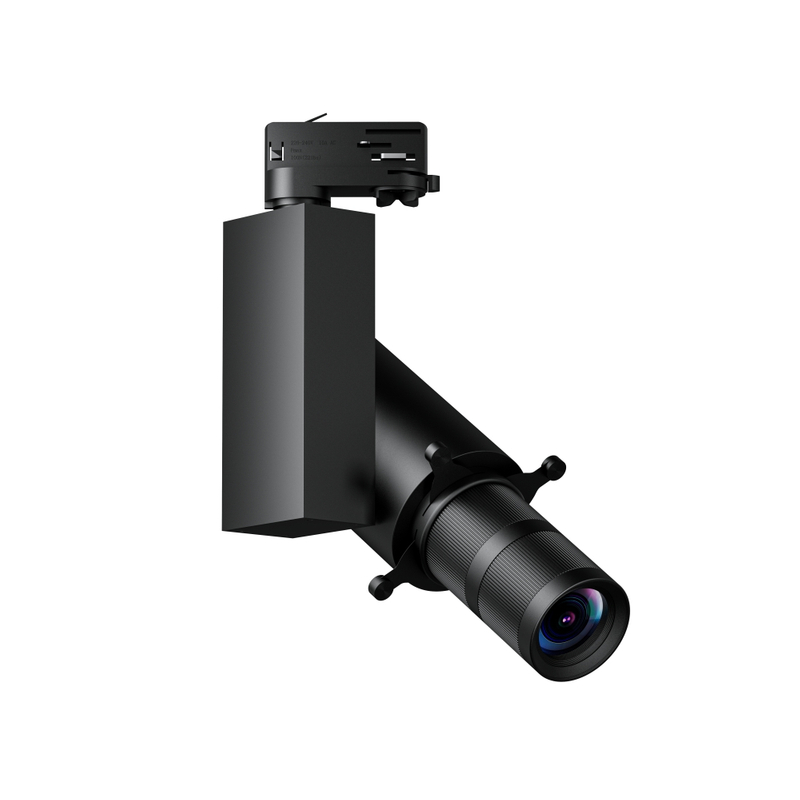

Yang Series
Focus Lighting Manufacturer
Shapeable LED lighting is mostly used in museums and art galleries. It's a high-quality product with a professional camera lens. Matt white color, black color available. The light uses a bidirectional stepless zooming; short stroke, and wide focal length; Projection functionality, the image can be customized as shown in the figure below video:
Customized projector LOGO can be different application:
Features Functional:
TUYA Smart Dimming and Color change 2700-6500K
DALI 2700-6500K Color tunable
0-10V CCT tunable
0-10V local dim
Triac dimmable
Specifications
| Model | FL-YANGRTRA2035-10W | FL-YANGRTRA2035-20W | FL-YANGRTRA2540-30W |
| Watt | 10W | 20W | 30W |
| Lumen | 300-350LM | 500-600LM | 1000-1100LM |
| Housing Color | Black, White | ||
| Wire | 2/3/4/6 wires | ||
| COB Brand | Lumileds, TianXin, DongYang | ||
| CCT | 2700K, 3000K, 3500K, 4000K, 5700K, 6000K or CCT Tunable from 2700-6500K | ||
| CRI | Ra90, Ra95, Ra97 | ||
| Beam Angle | 20°-35° Zoomable, 25°-40° Zoomable, 50°-60°Zoomable | ||
| Driver Brand | PHILIPS, Tridonic, Lifud, Eaglerise | ||
| Input Voltage | AC100-130V, AC200-240V, AC100-277V | ||
| PF | >0.9 | ||
| Flick | Flicker Free (No Flicker) | ||
| Function | on/off, 0-10V DIM, TRIAC DIM, DALI DIM, LOCAL DIM, TUYA SMART | ||
| Certificate | CE, RoHS, LVD, EMC, UL(driver) | ||
| Warranty | 3 years | ||
Shenzhen Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
