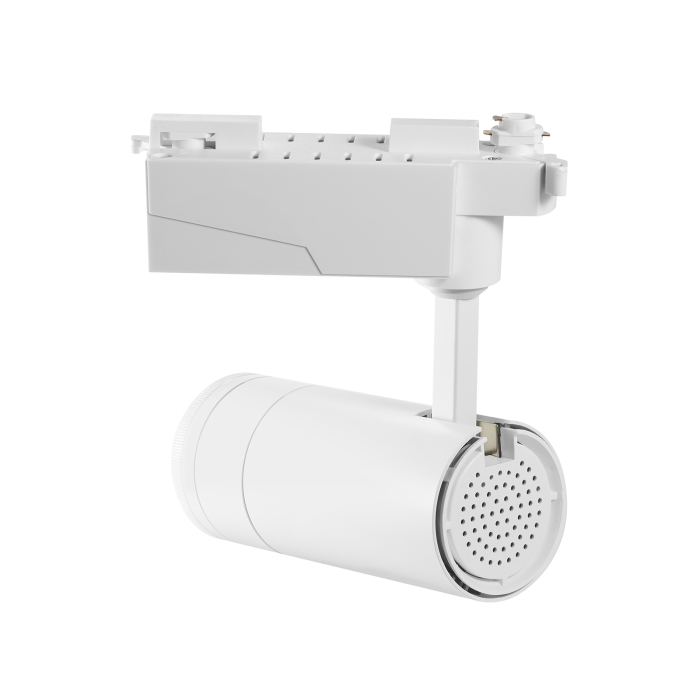

7017
FOCUS-LIGHTING Manufacturer
Specifications
| Model | 7017-15W | 7017-20W | 7017-30W |
| Watt | 15W | 20W | 30W |
| Lumen | 1200-1500lm | 1700-2000lm | 2700-3000lm |
| Dimension | Dia61 x L148 x H165mm | Dia61 x L148 x H165mm | Dia70 x L172 x H205mm |
| Housing Color | Black, White, other color customed | ||
| Wire | 2/3/4 wires (3 wires Halo head / Juno head / Lightolier head) | ||
| COB Brand | OSRAM, LUMILEDS, PHILIPS, CITIZEN | ||
| CCT | 2700K, 3000K, 3500K, 4000K, 5700K, 6000K | ||
| CRI | Ra80, Ra90, Ra97 | ||
| Beam Angle | 12° to 60° adjustable | ||
| Driver Brand | PHILIPS, Tridonic, Lifud, Eaglerise | ||
| Input Voltage | AC100-130V, AC200-240V, AC100-277V | ||
| PF | >0.9 | ||
| Flick | Flicker Free (No Flicker) | ||
| Function | on/off, 0-10V DIM, TRIAC DIM, DALI DIM, LOCAL DIM | ||
| Certificate | CE, RoHS, LVD, EMC, UL(driver) | ||
| Warranty | 5 years | ||
Application
Zoomable LED track lights are used in galleries and exhibition halls. Adjusting the beam angle of the lamp according to the size of different objects can remove excess halo around. A better visual experience with the viewer.
Dimension
15W/20W 30W
Bean angle & color temperature show
One zommable LED track light has multiple beam angles, 12° to 60° which can be adjusted as your pleasure.
Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
