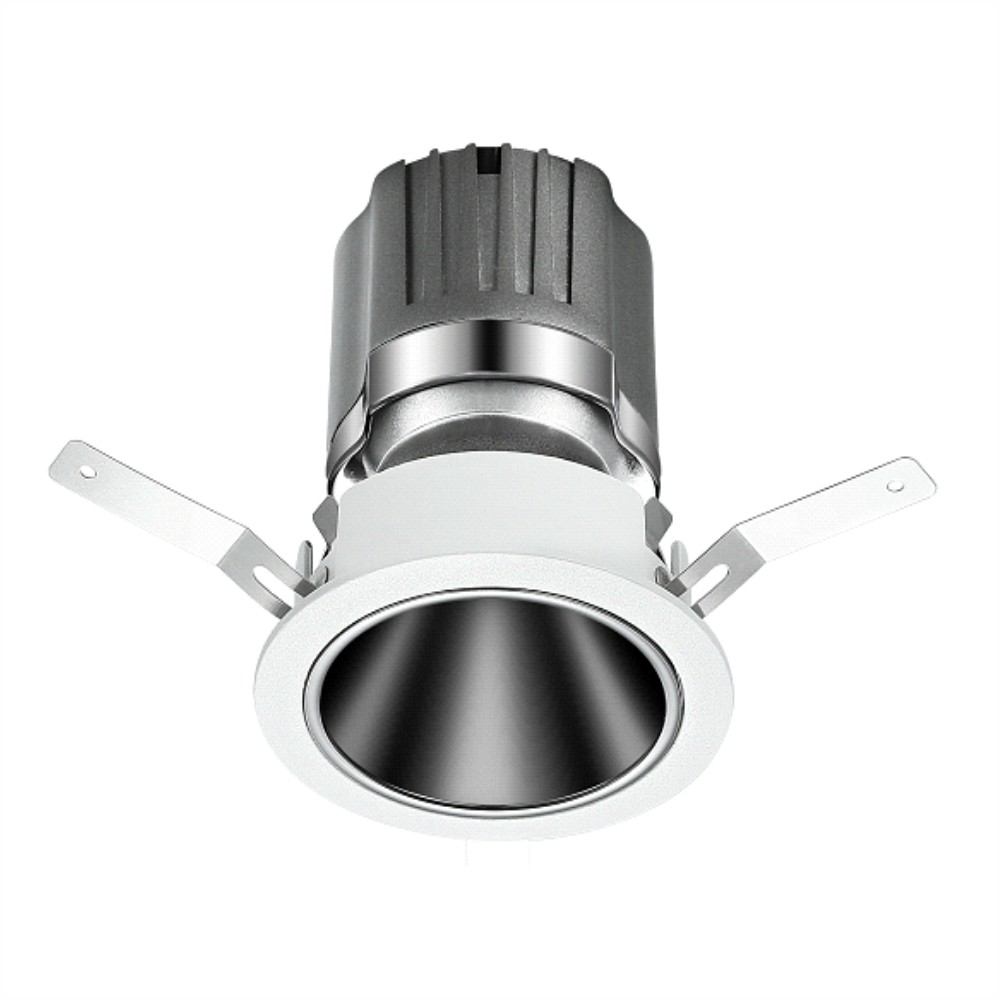

8816
FOCUS-LIGHTING Manufacturer
Specifications
| Model | T8816-12W | T8816-20W | T8816-30W | T8816-35W |
| Watt | 12W | 20W | 30W | 35W |
Lumen | 1080-1200lm | 1800-2000lm | 2700-3000lm | 3150-3500lm |
| Dimension | Dia88 x H100mm | Dia115 x H125mm | Dia130 x H142mm | Dia160 x H162mm |
| Cut Hole | Dia75-80mm | Dia105-115mm | Dia120-125mm | Dia150-155mm |
| COB Brand | OSRAM, LUMILEDS, PHILIPS, CITIZEN | |||
| CCT | 2700K, 3000K, 3500K, 4000K, 5700K, 6000K | |||
| CRI | Ra80, Ra90, Ra97 | |||
| Driver Brand | PHILIPS, Tridonic, Lifud, Eaglerise | |||
| Input Voltage | AC100-130V, AC200-240V, AC100-277V | |||
| PF | >0.9 | |||
| Flicker | Flicker Free (No Flicker) | |||
| Function | on/off, 0-10V DIM, TRIAC DIM, DALI DIM | |||
| Certificated | CE, RoHS, LVD, EMC, UL(driver) | |||
| Warranty | 5 years | |||
Application
Anti-glare COB LED downlights are used in five-star hotels, lobbies, 4S shops, shopping malls, clothing stores, airports and other places. It is very atmospheric and does not dazzle the eyes. According to the height of the building, choose the appropriate wattage and beam angle to make the light evenly.
Dimension
8816-12W 8816-20W
8816-30W 8816-35W
Bean angle & color temperature show
One zommable LED track light has multiple beam angles, 12° to 60° which can be adjusted as your pleasure.
Installation
For recessed downlights installation, it is necessary to confirm the opening size of the ceiling according to the diameter of the downlight. If it is used to replace an old downlight, you need to choose a suitable downlight according to the size of the opening on the ceiling. Avoid being unable to install.
Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
