Zheng series
Focus Lighting Manufacturer

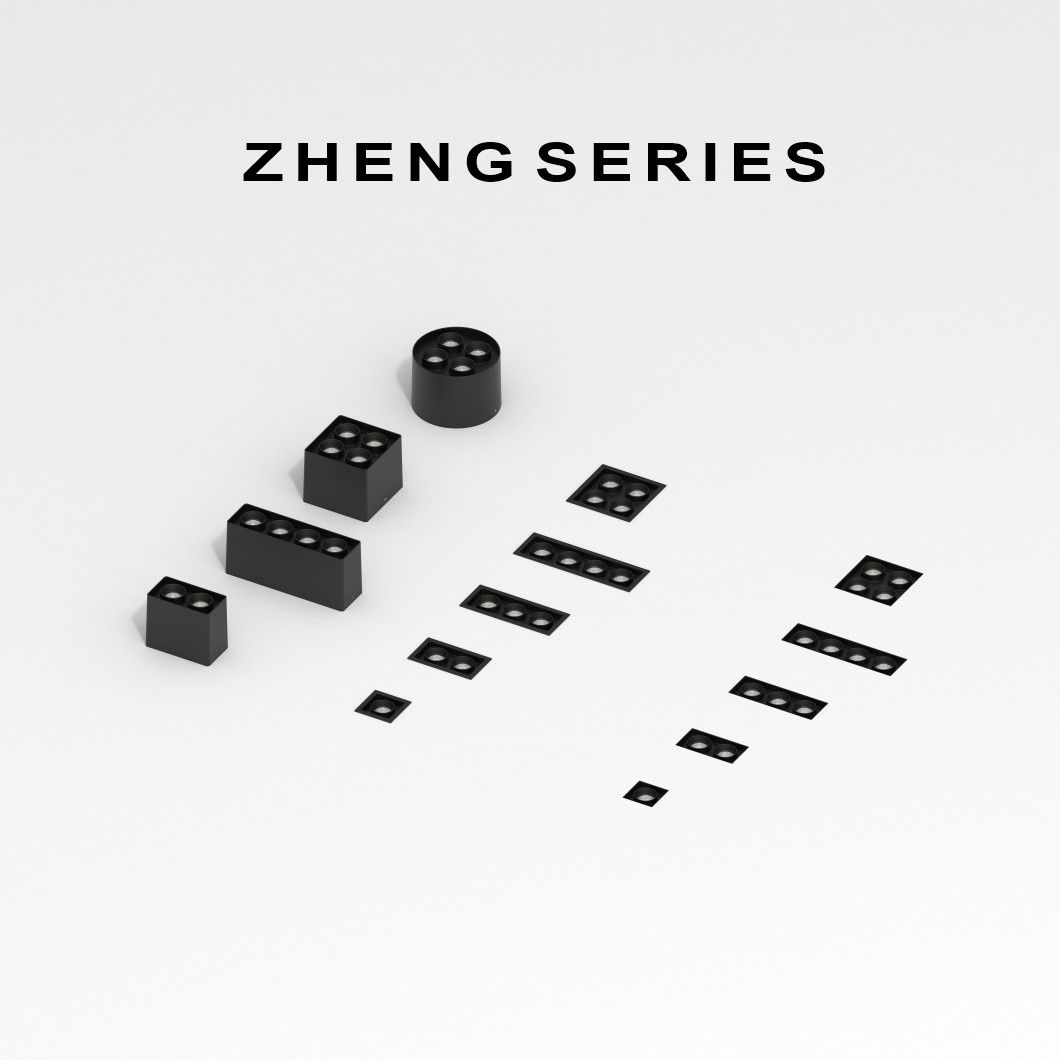

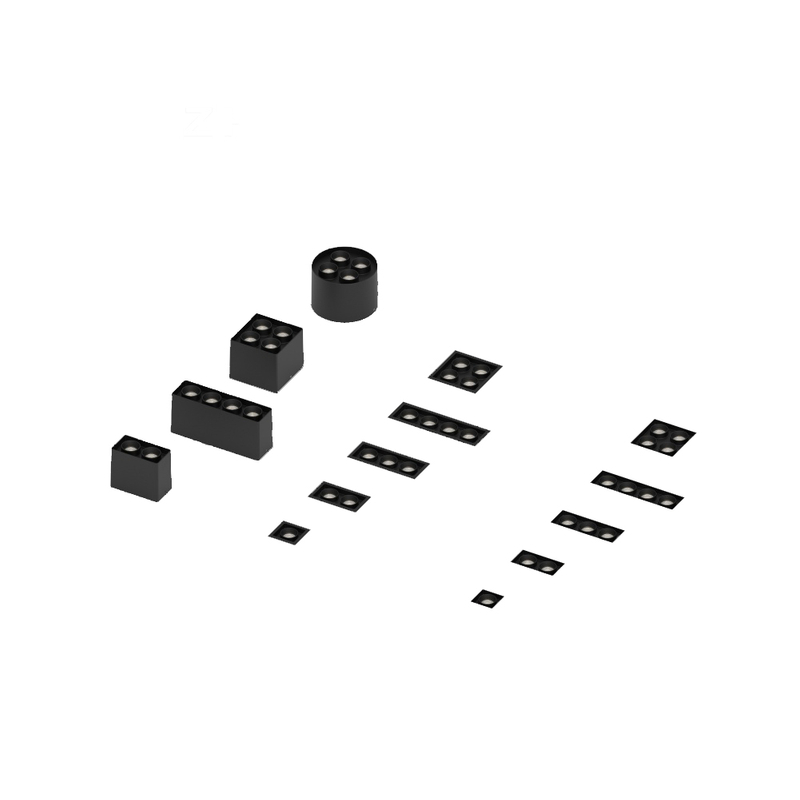

ZHENG SERIES

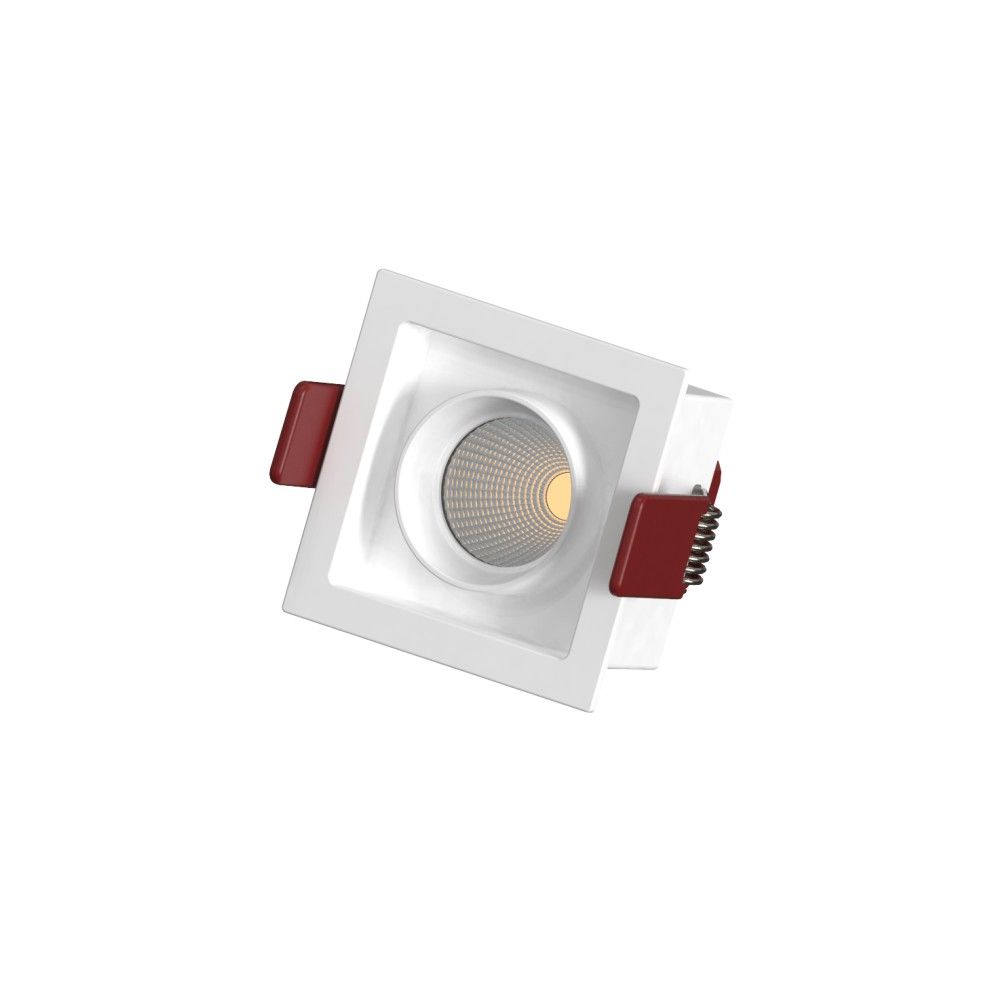

Recessed With Trim Downlight Video:

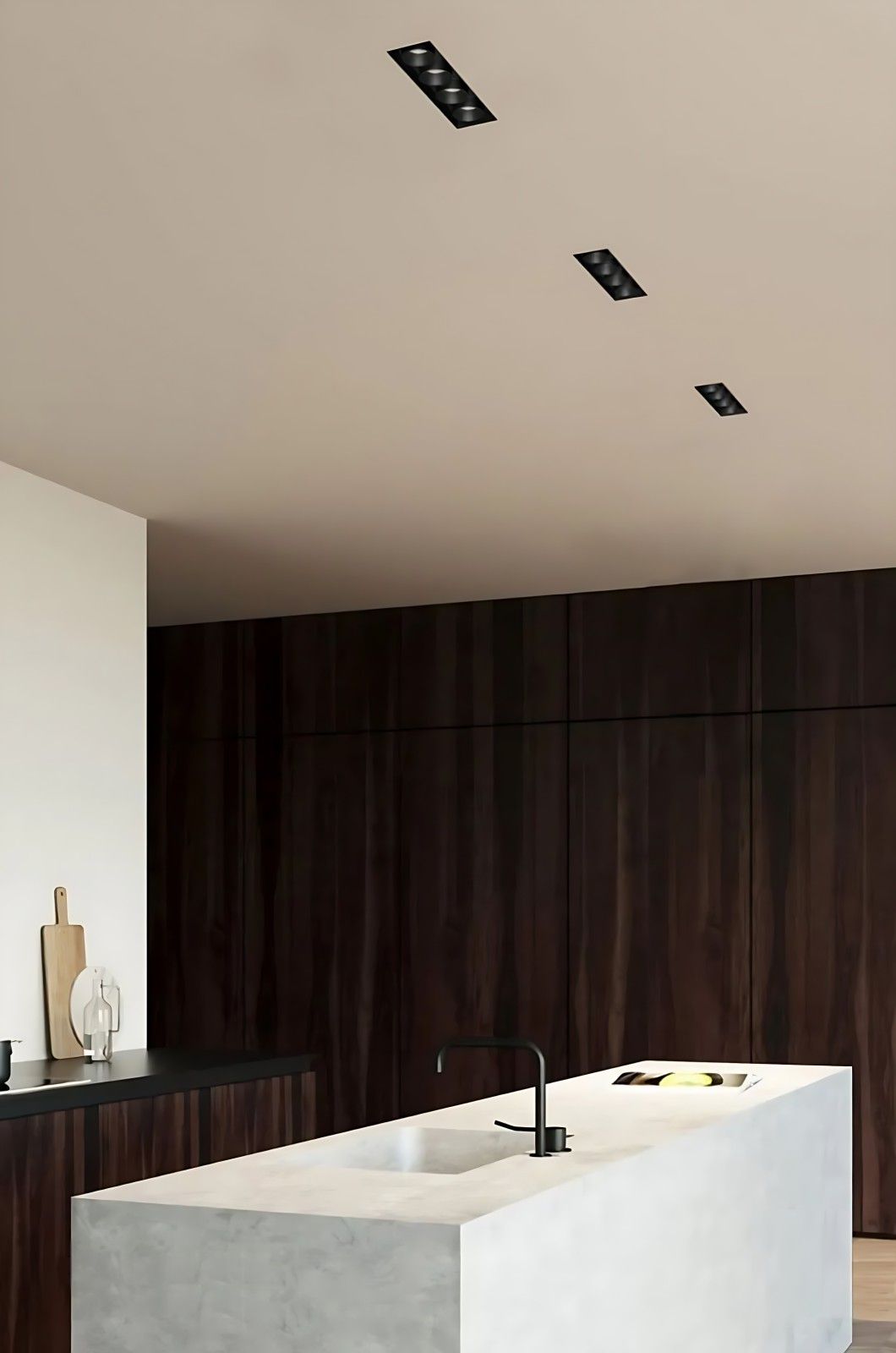

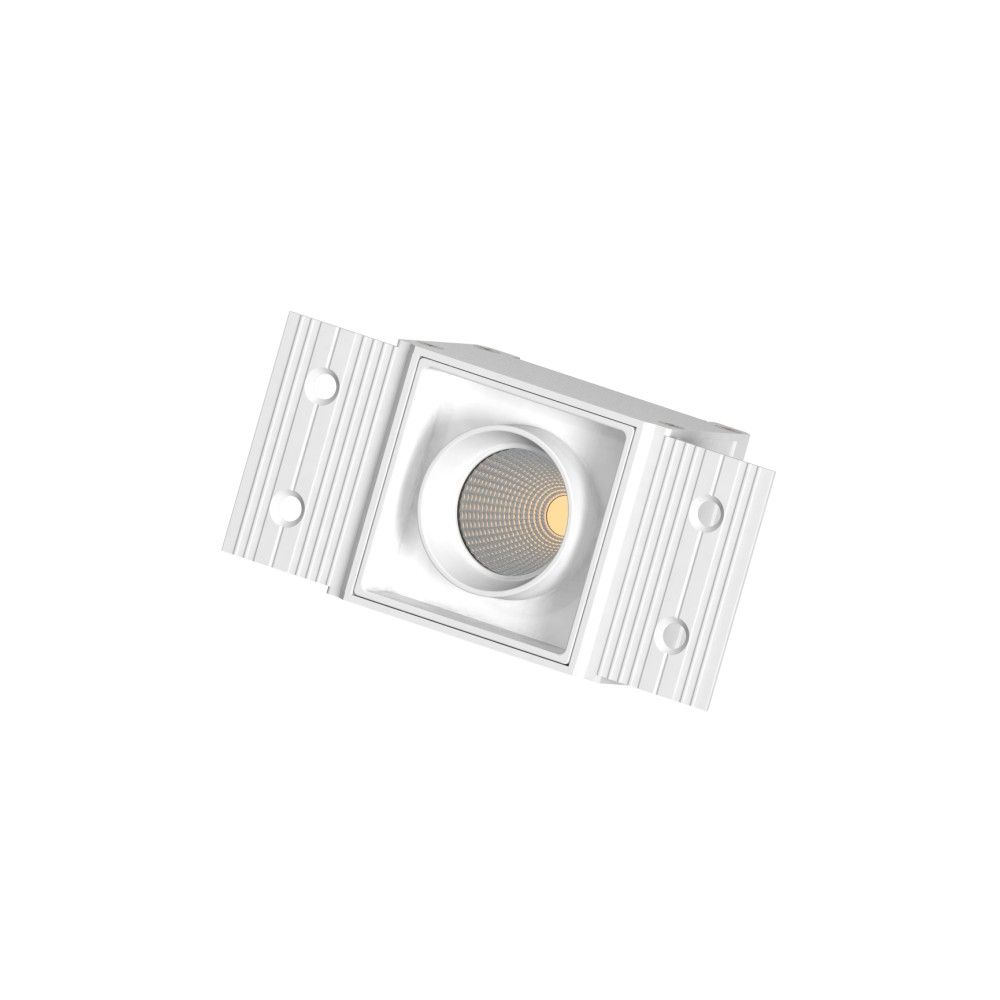

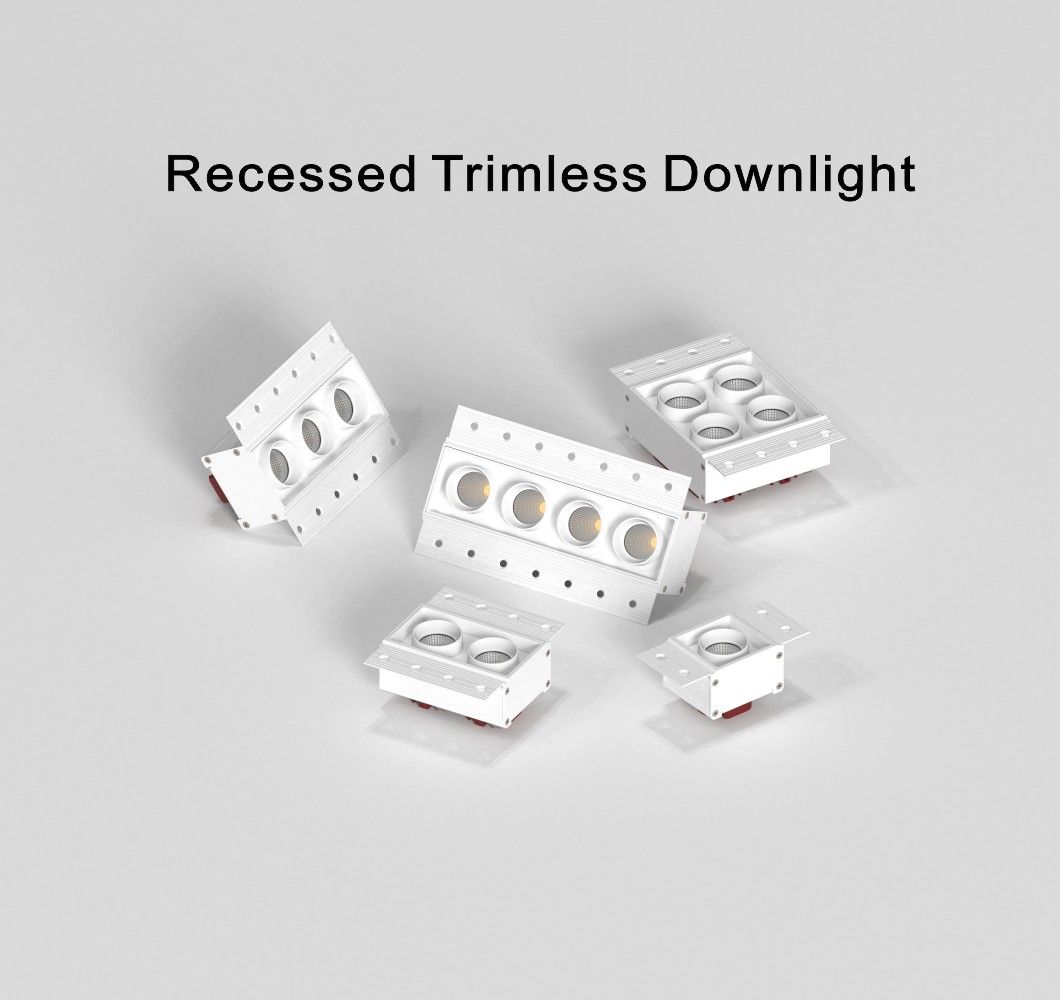

Recessed Trimless Downlight Video:
Features:
Power: 5W, 10W, 15W, 20W
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：80lm/W
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Lens 15°/24°/36°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White/ Black Housing
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：

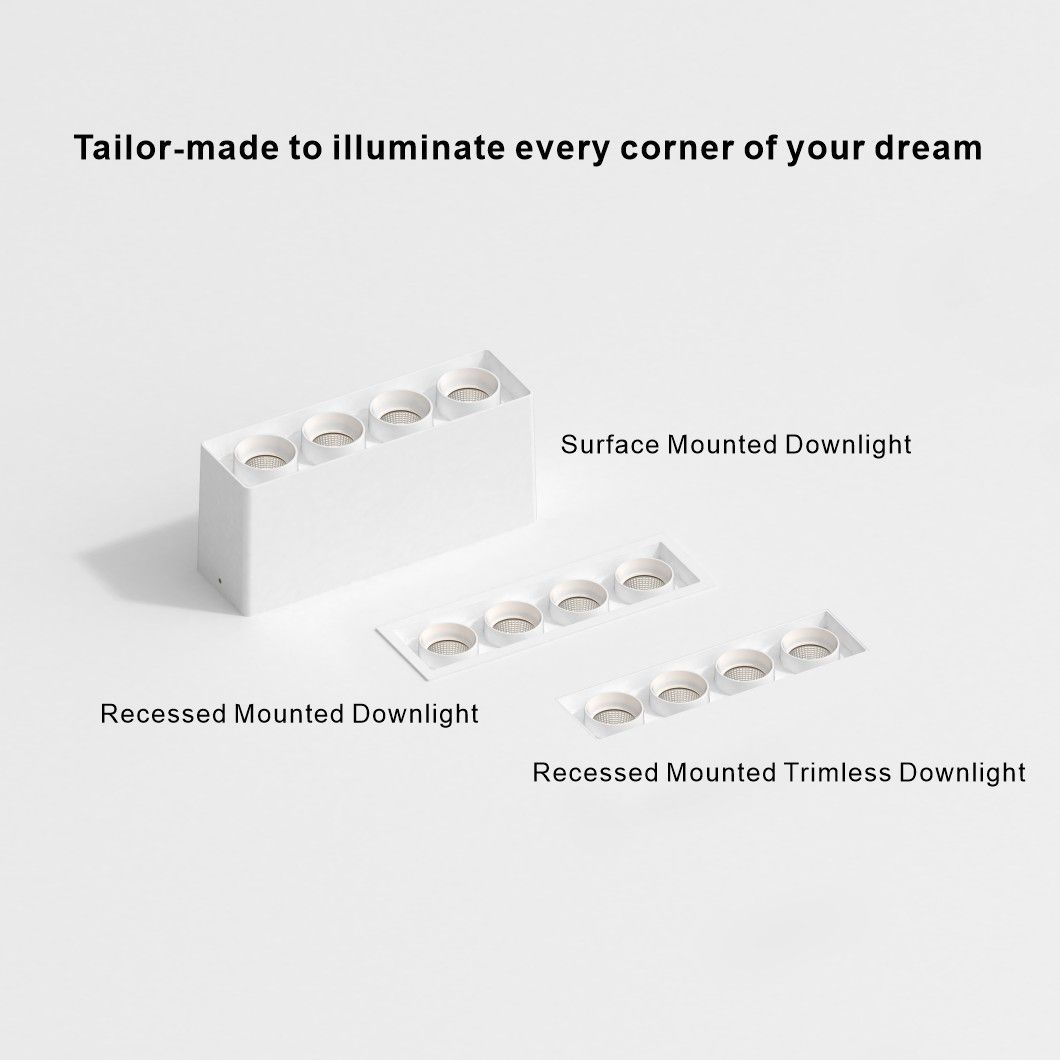

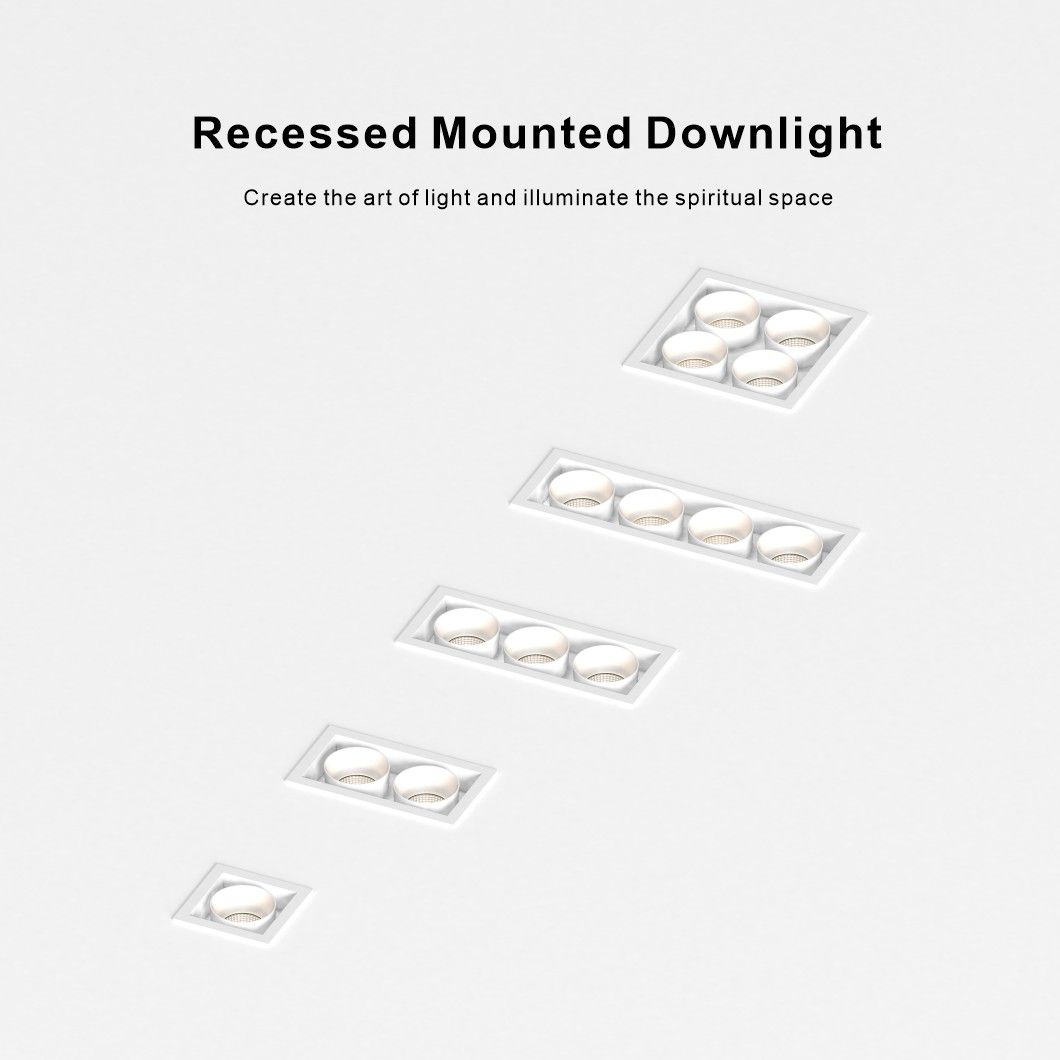

| Recessed Trim/Trimless Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-ZHENG5050SRF1-5W | 5W | φ60*60*55mm | φ50*50mm | Fixed | Square |
| FL-ZHENG9550RERF2-10W | 10W | φ105*60*55mm | φ95*50mm | Rectangle | |
| FL-ZHENG13850RERF3-15W | 15W | φ148*60*55mm | φ138*50mm | ||
| FL-ZHENG18150RERF4-20W | 20W | φ191*60*55mm | φ181*50mm | ||
| FL-ZHENG9595SRF4-20W | 20W | φ105*105*55mm | φ95*95mm | Square | |
| FL-ZHENG6353STF1-5W | 5W | φ110*52*55mm | φ63*53mm | Square | |
| FL-ZHENG9863RETF2-10W | 10W | φ110*97*55mm | φ98*63mm | Rectangle | |
| FL-ZHENG14163RETF3-15W | 15W | φ140*110*55mm | φ141*63mm | ||
| FL-ZHENG18463RETF4-20W | 20W | φ183*110*55mm | φ184*63mm | ||
| FL-ZHENG10898STF4-20W | 20W | φ155*97*55mm | φ108*98mm | Square | |

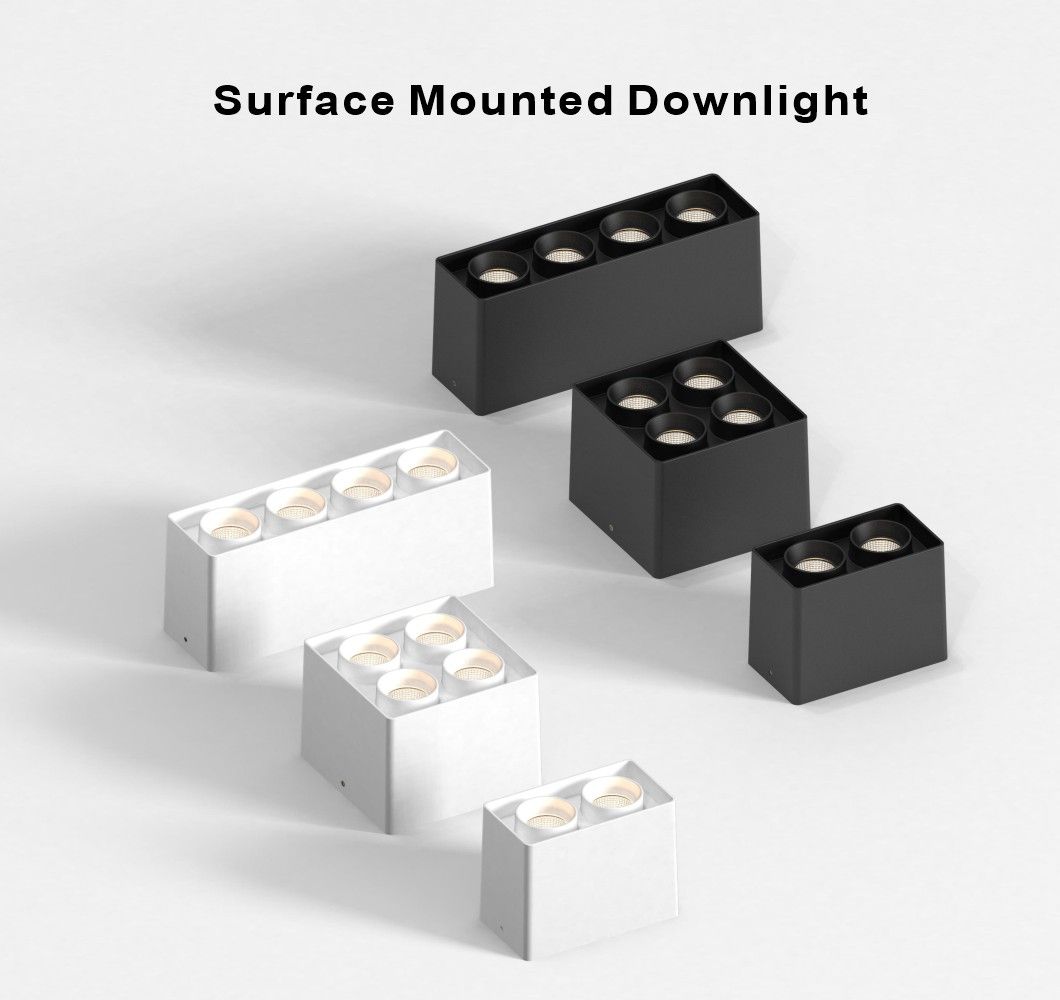

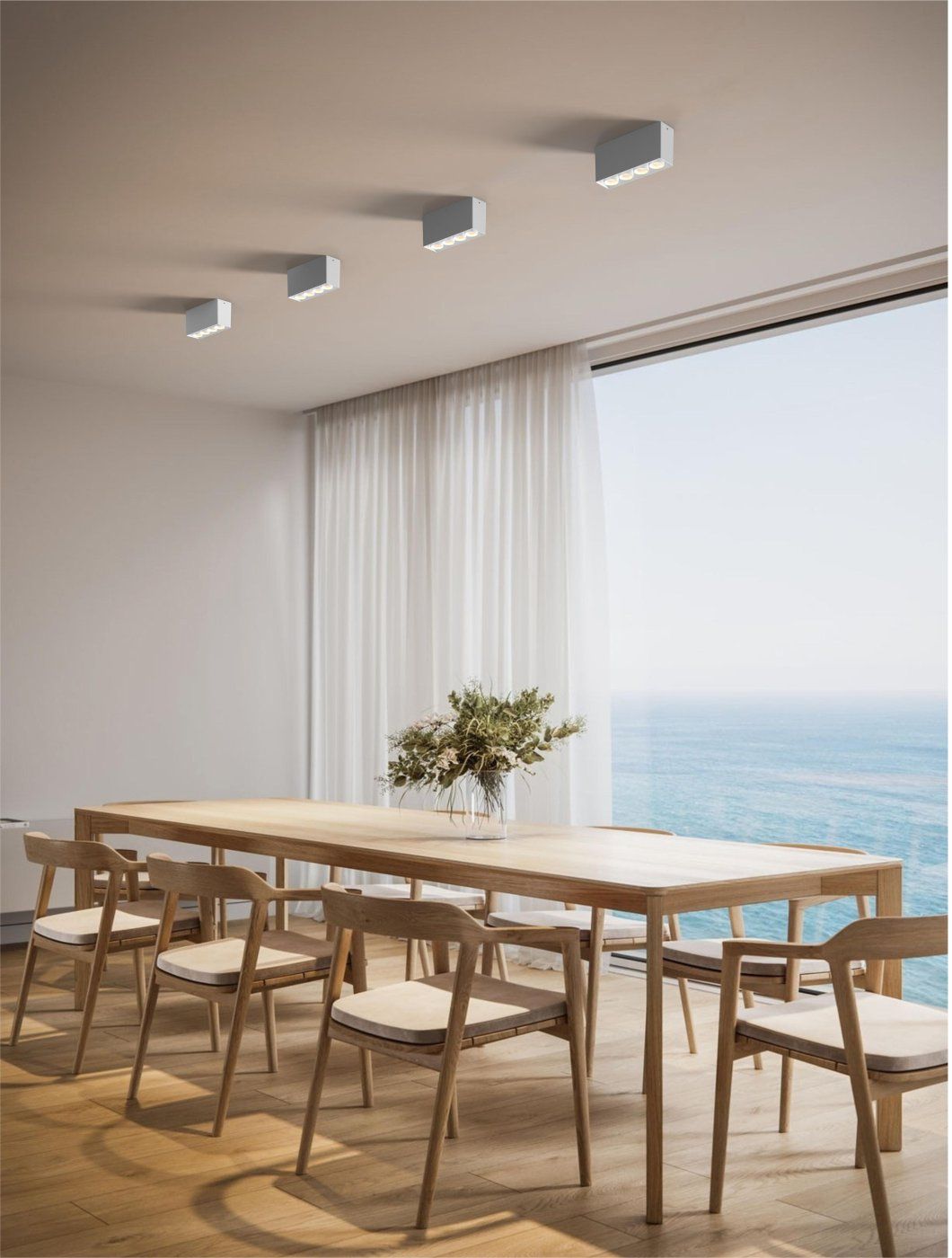

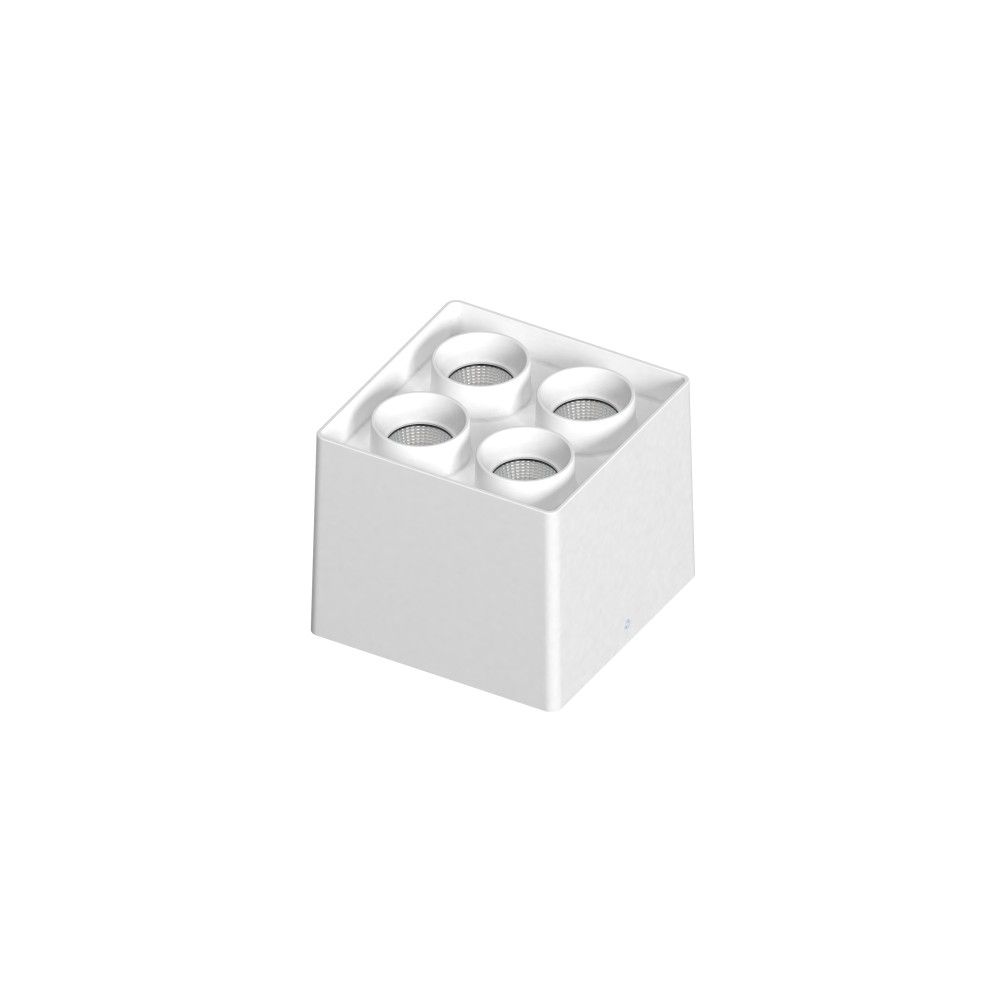

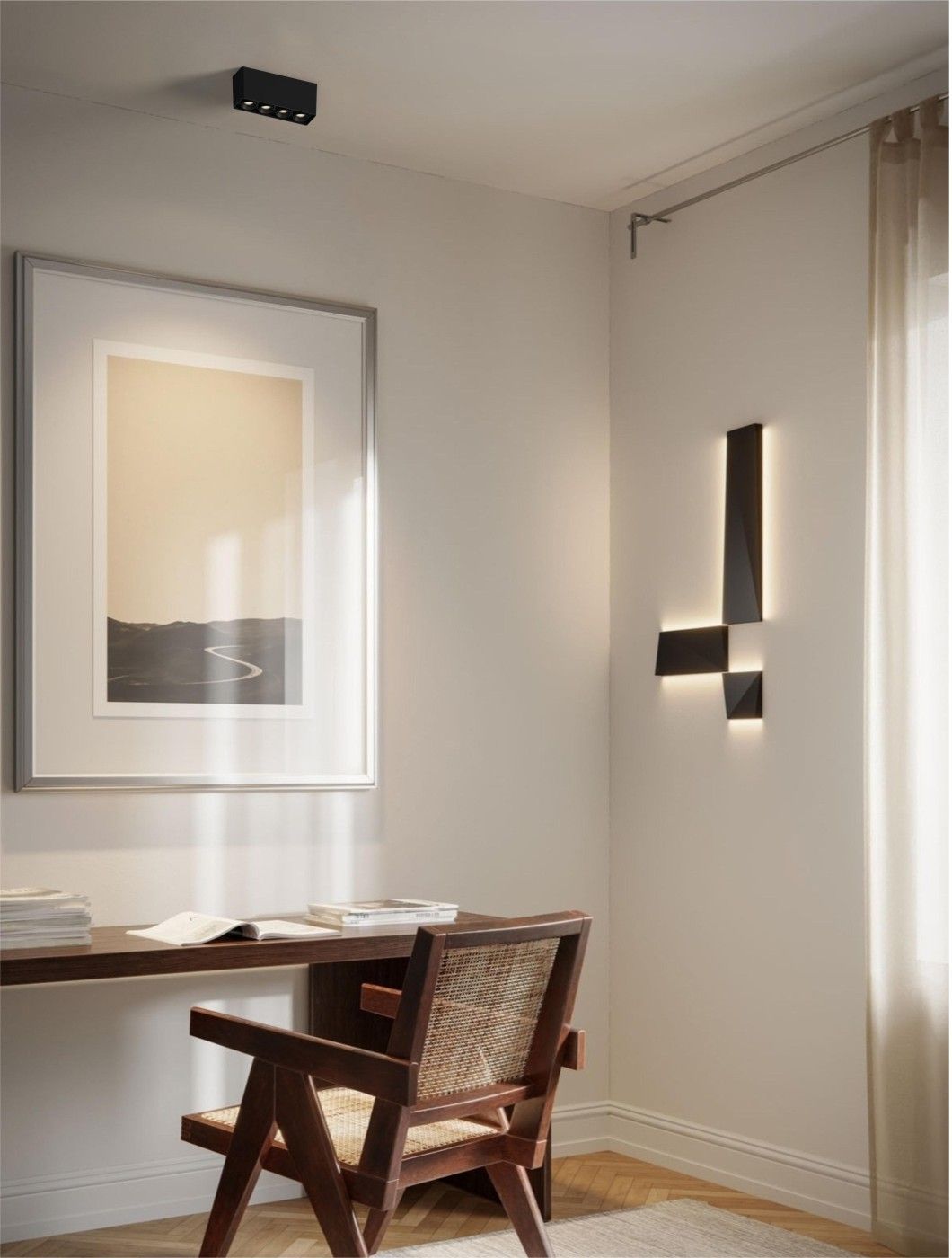

| Surface Mounted | ||||
| Model | Power | Product Size | Direction | Shape |
| FL-ZHENGRESF2-10W | 10W | φ105*58*88mm | Fixed | Rectangle |
| FL-ZHENGRESF4-20W | 15W | φ194*58*88mm | ||
| FL-ZHENGSSF4-20W | 20W | φ106*106*88mm | Square | |
| FL-ZHENGRSF4-20W | 20W | φ128*88mm | Round | |
Appliation:
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
