Wu series
Focus Lighting Manufacturer

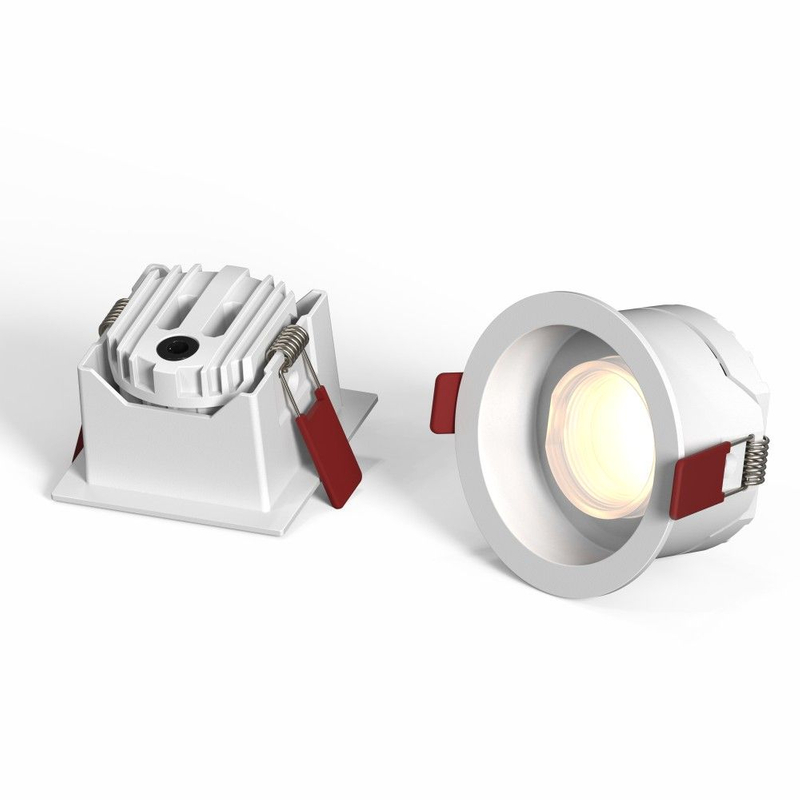

WU SERIES
Features:

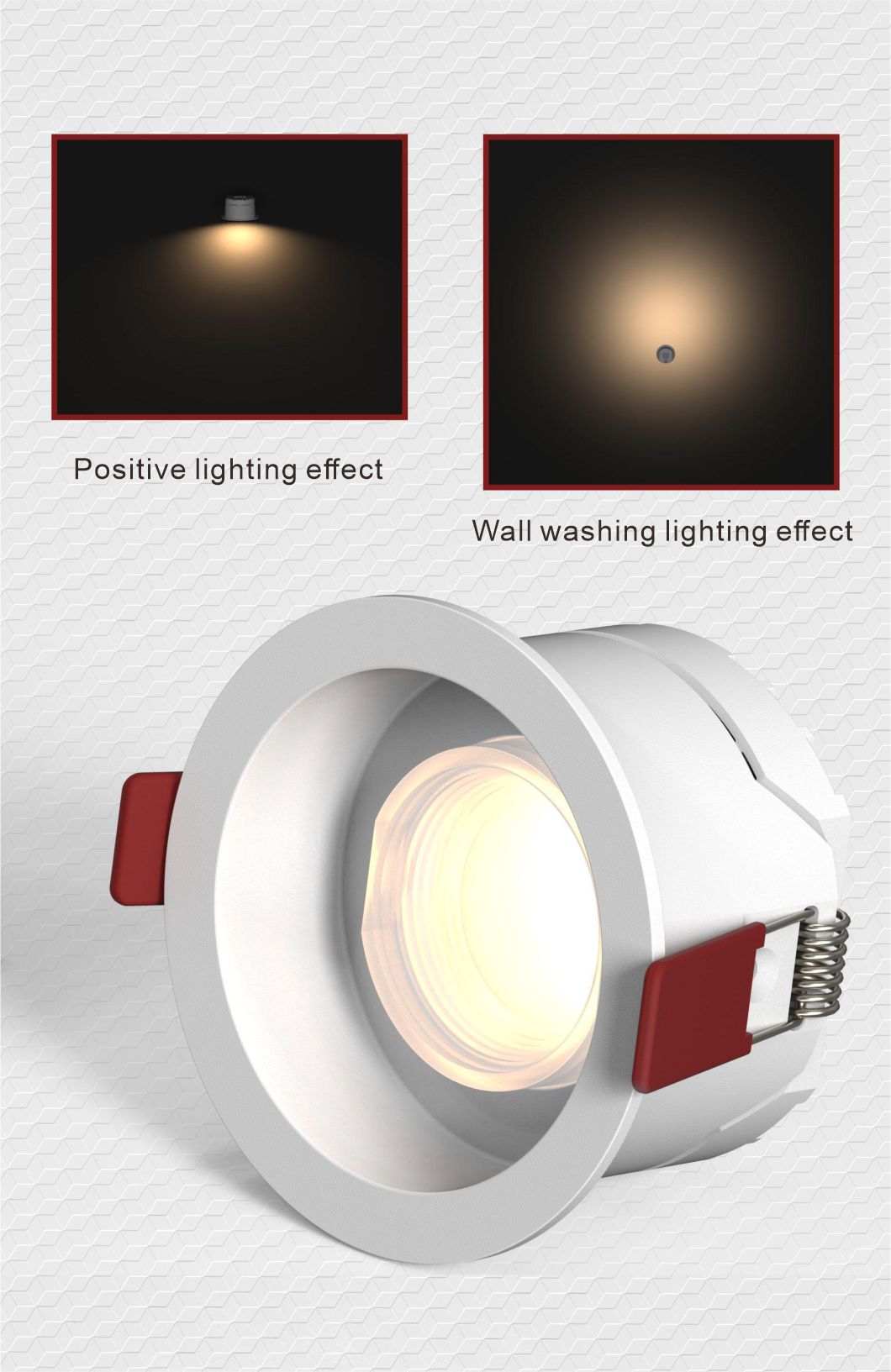

Special lens design, lighting more soft
Power: 5W, 10W, 15W, 20W, 30W, 45W
Input voltage: AC220-240V, 50/60Hz, Eaglerise driver
Lighting Efficiency：80-90lm/w
CCT：2700K, 3000K, 3500K, 4000K, 5000K, CCT tunable
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：120°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming

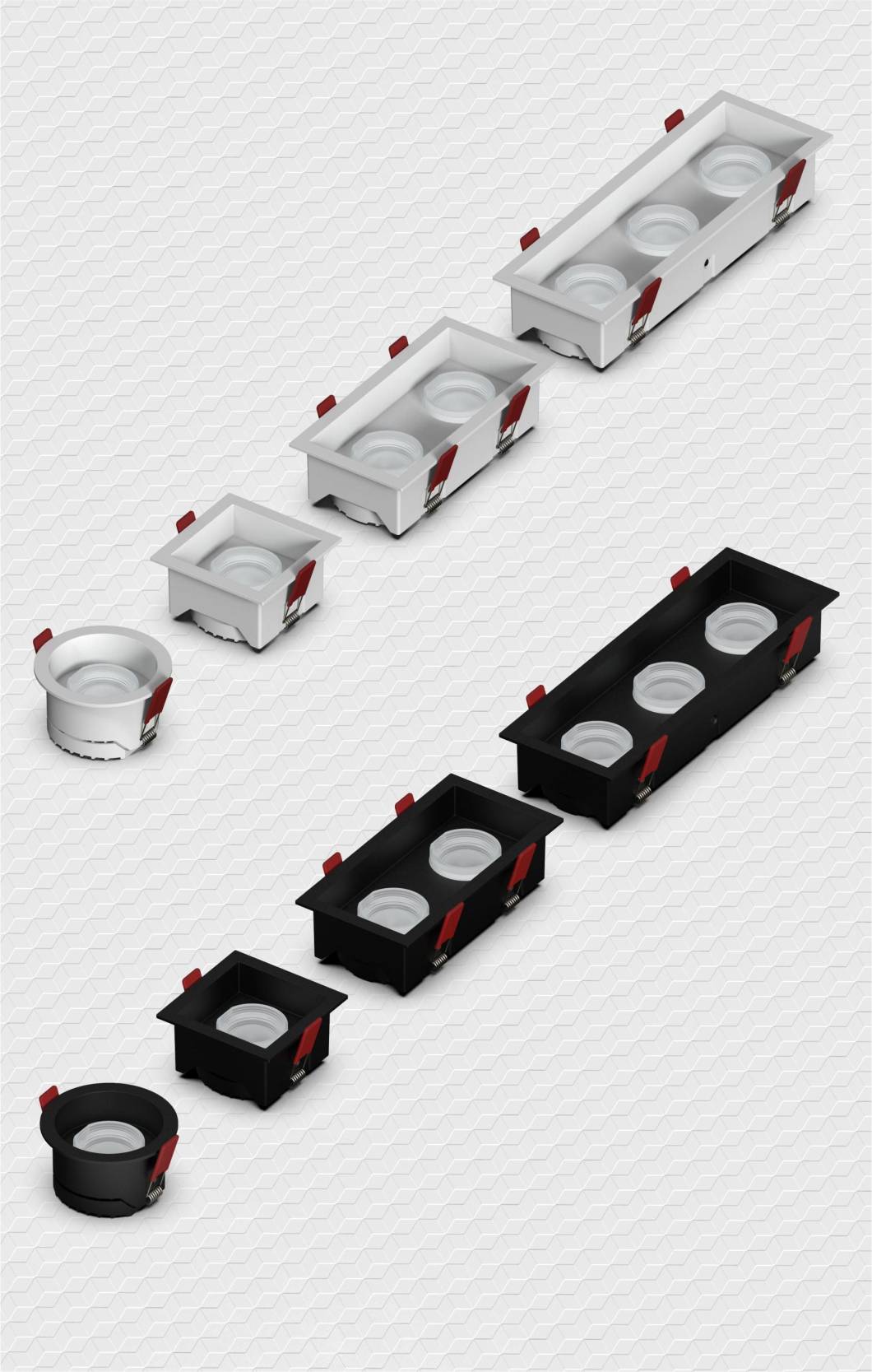

Housing Color：White, Black
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole | Direction | Shape |

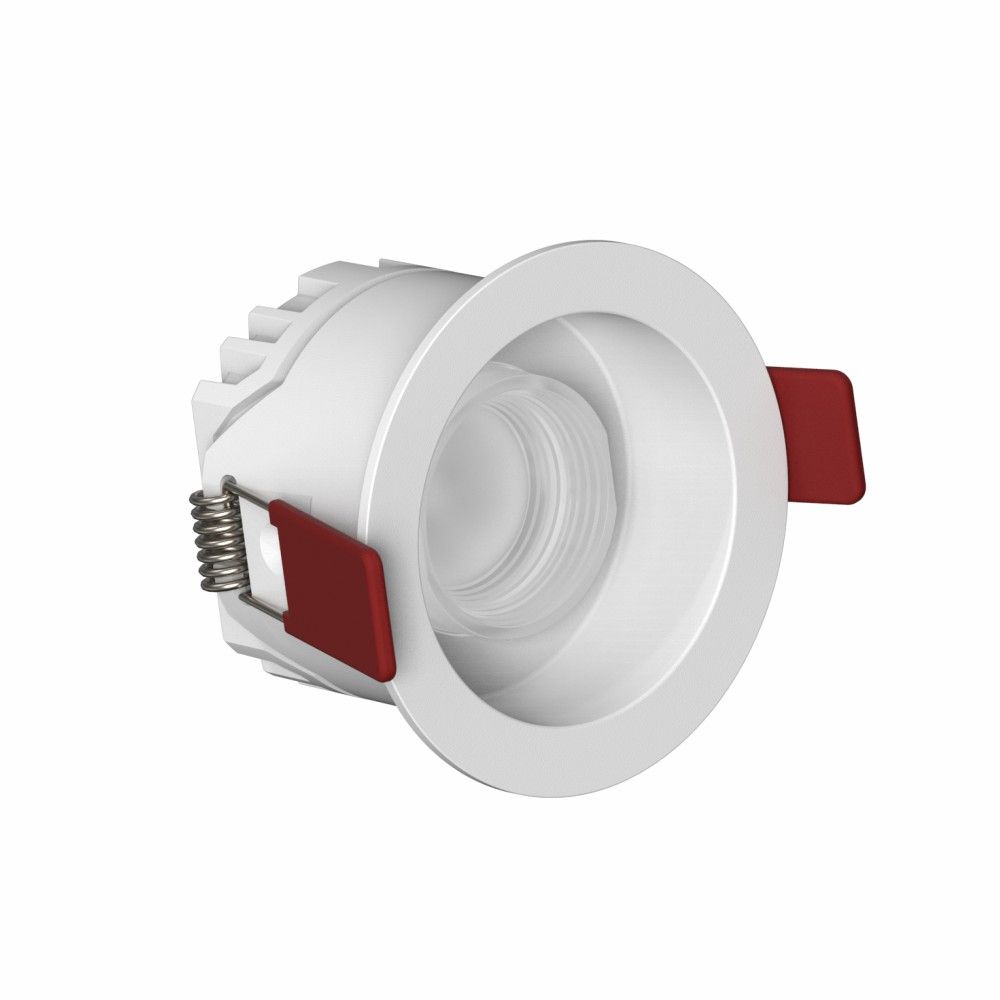

| FL-WU60RRF-5W | 5W | φ72*47mm | φ60mm | Fixed | Round |
| FL-WU75RRF-10W | 10W | φ88*50mm | φ75mm | ||
| FL-WU90RRF-15W | 15W | φ102*51mm | φ90mm | ||

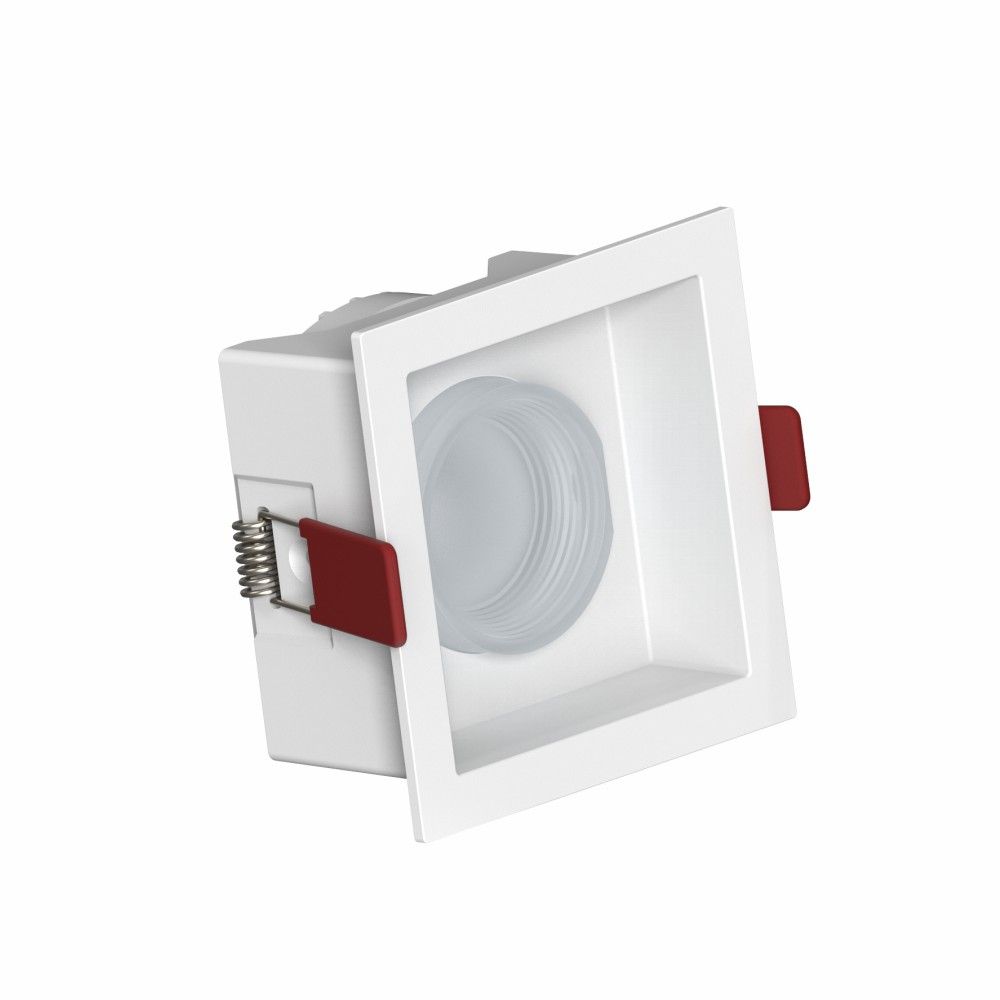

| FL-WU6060SRF-5W | 5W | φ72*72*47mm | φ60*60mm | Square | |
| FL-WU7575SRF-10W | 10W | φ88*88*50mm | φ75*75mm | ||
| FL-WU9090SRF-15W | 15W | φ102*102*51mm | φ90*90mm | ||

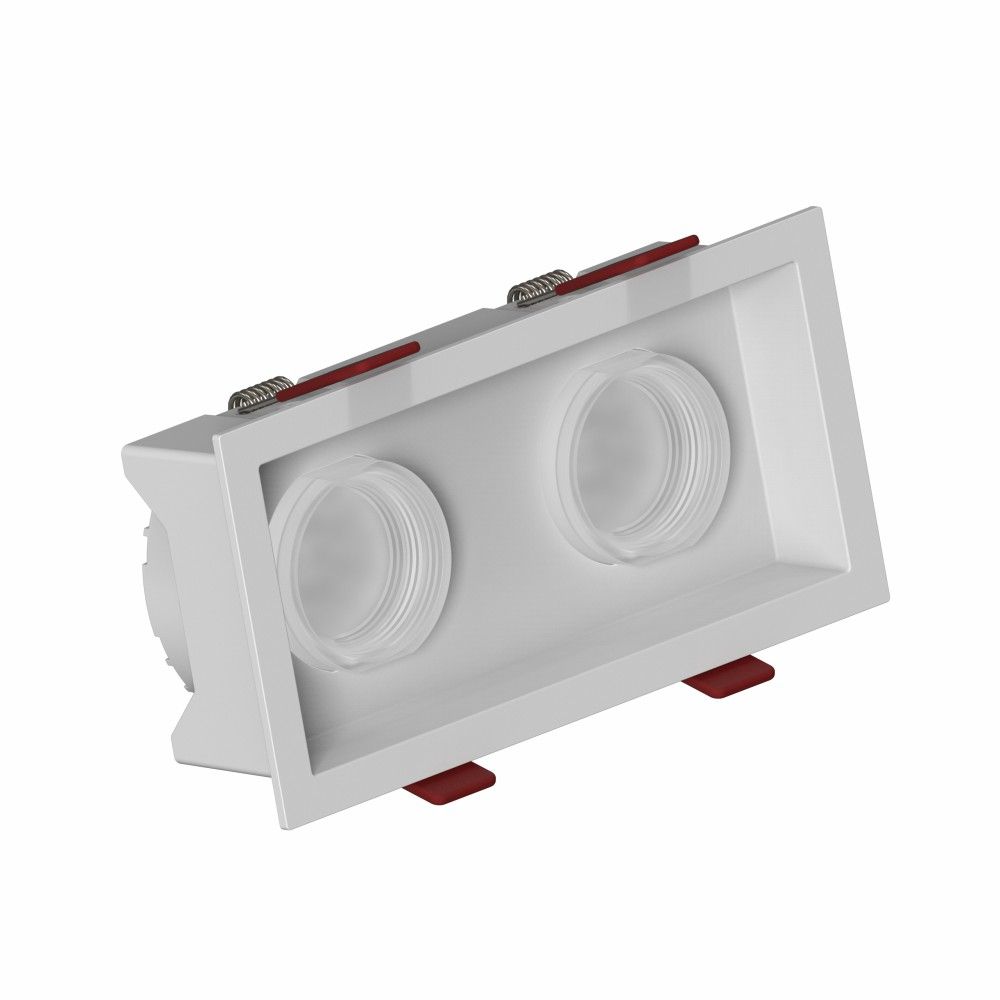

| FL-WU13060RERF2-10W | 10W | φ142*72*47mm | φ130*60mm | Rectangle | |
| FL-WU16075RERF2-20W | 20W | φ173*88*50mm | φ160*75mm | ||
| FL-WU19590RERF2-30W | 30W | φ210*102*51mm | φ195*90mm | ||

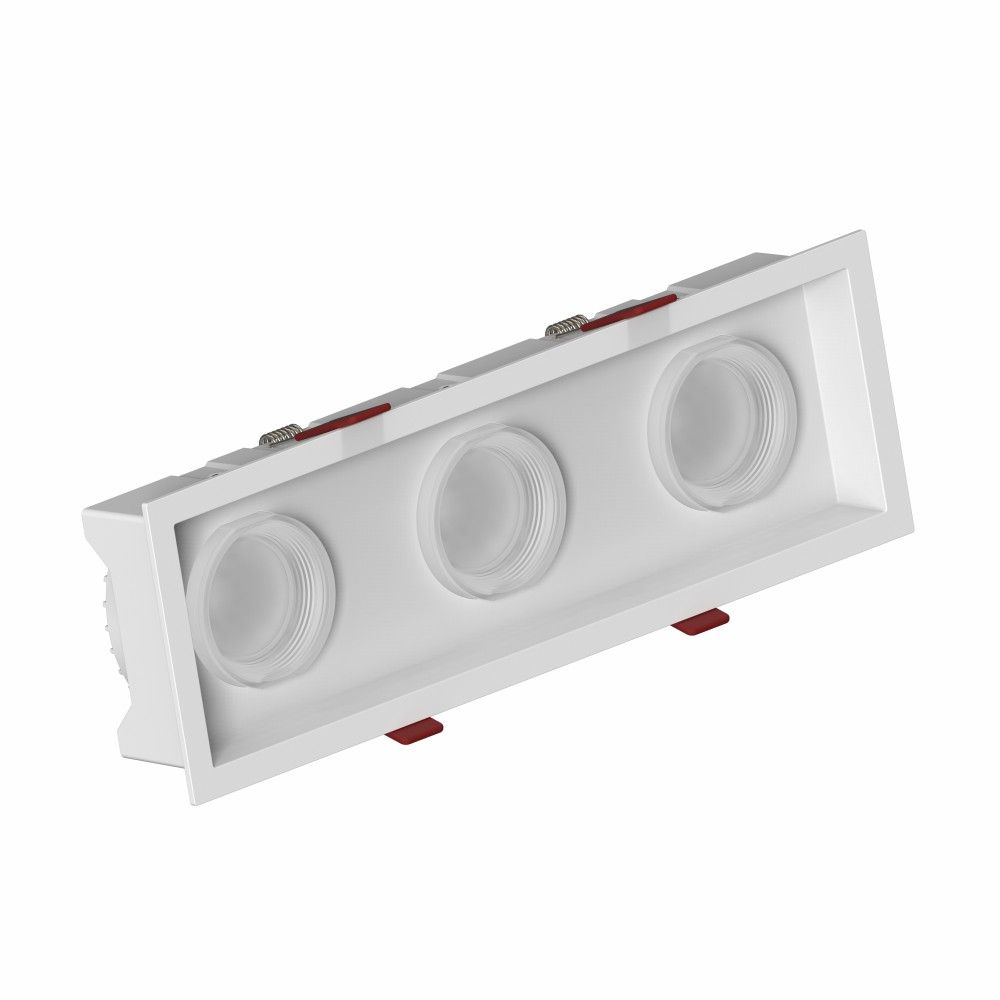

| FL-WU20060RERF3-15W | 15W | φ212*72*47mm | φ200*60mm | ||
| FL-WU24075RERF3-30W | 30W | φ253*88*50mm | φ240*75mm | ||
| FL-WU30090RERF3-45W | 45W | φ312*102*51mm | φ300*90mm | ||

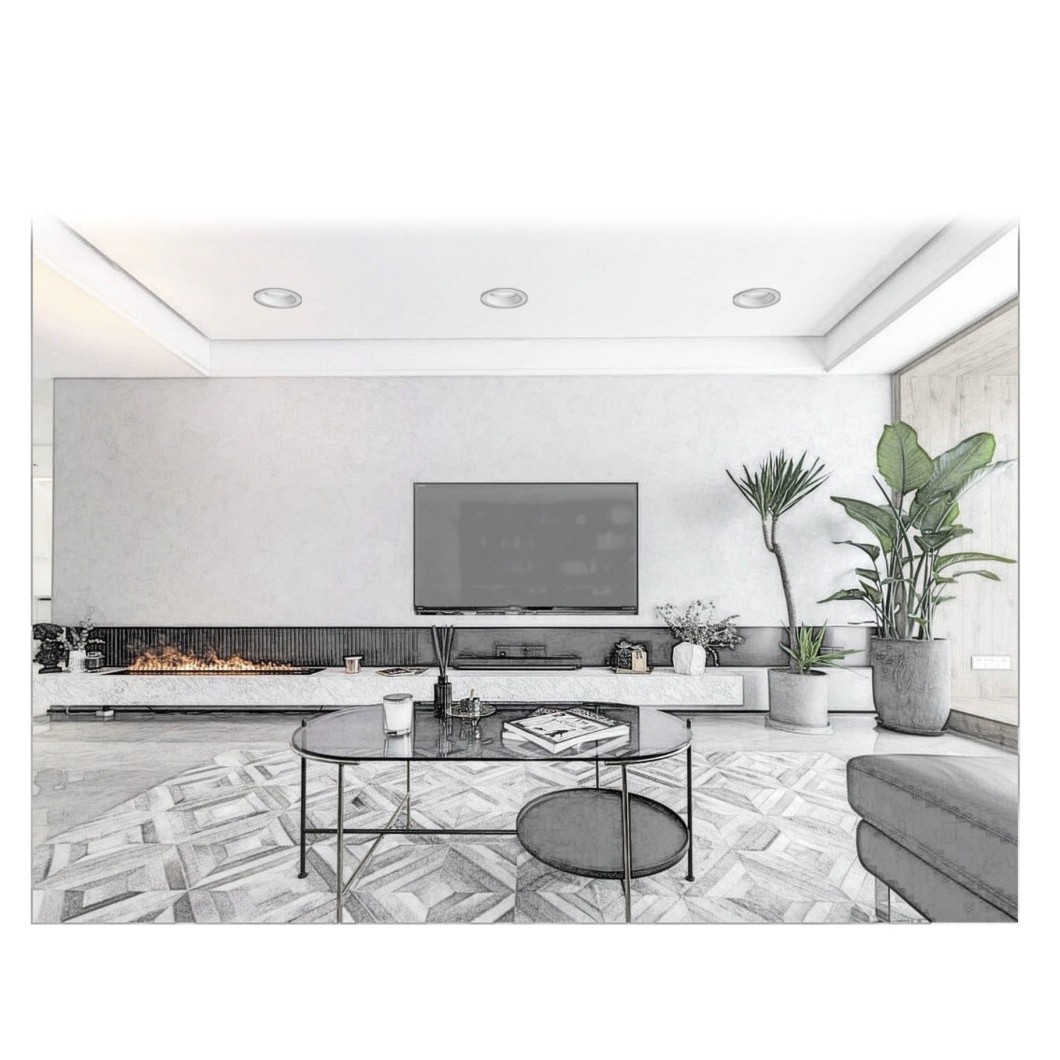

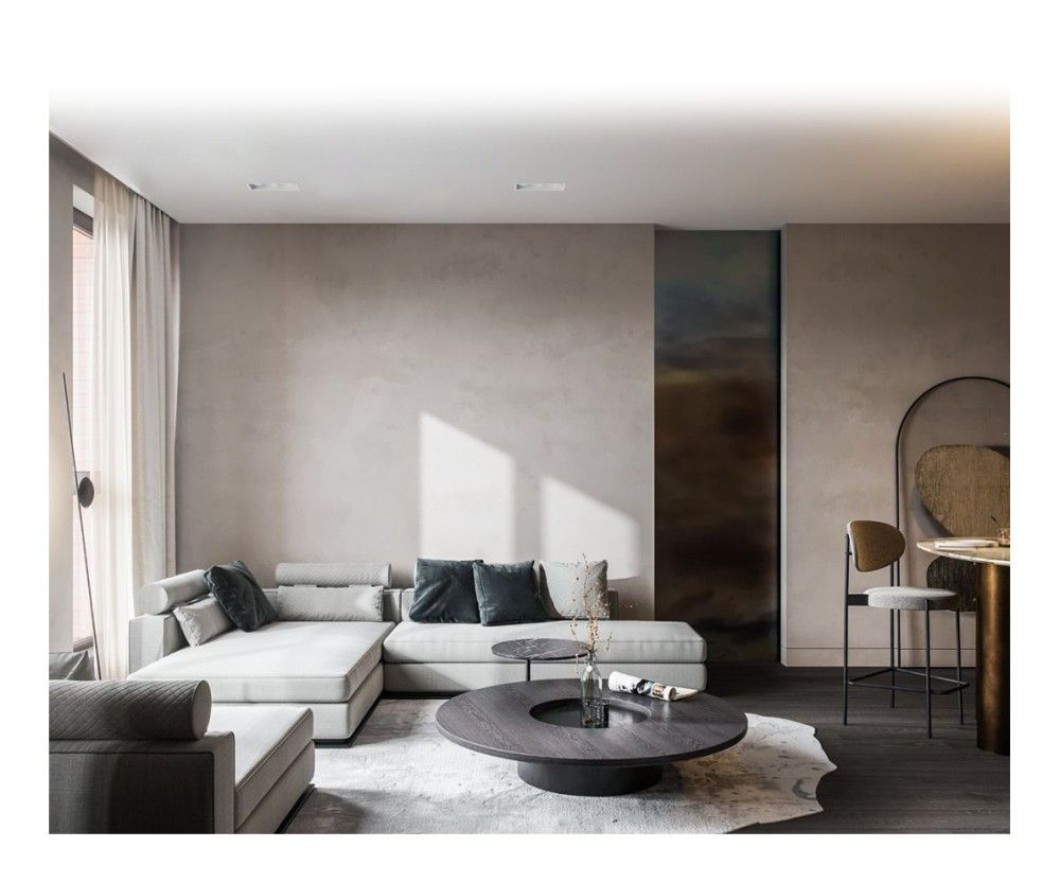

Application：
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
