Sun series
Focus Lighting Manufacturer

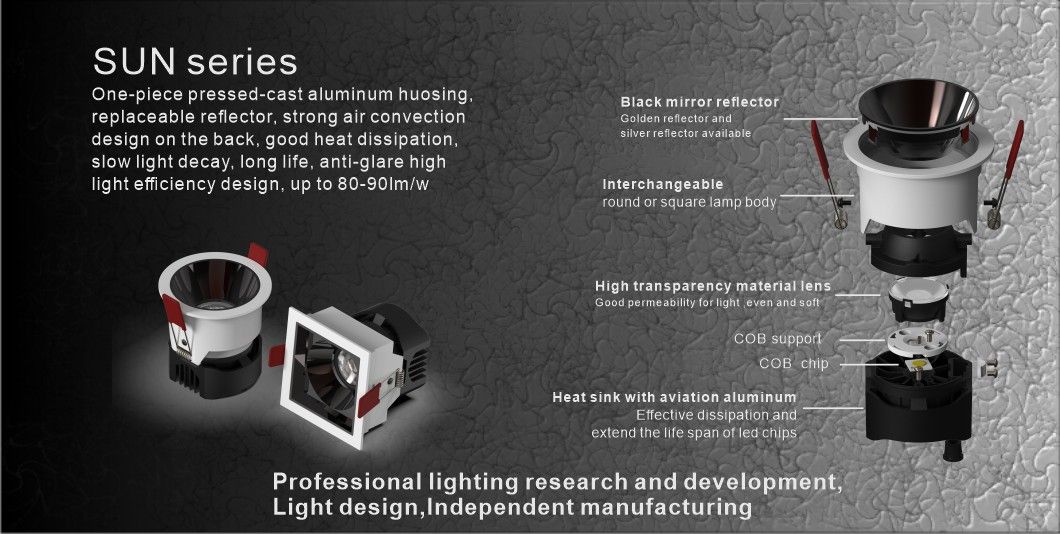

SUN SERIES
Features:

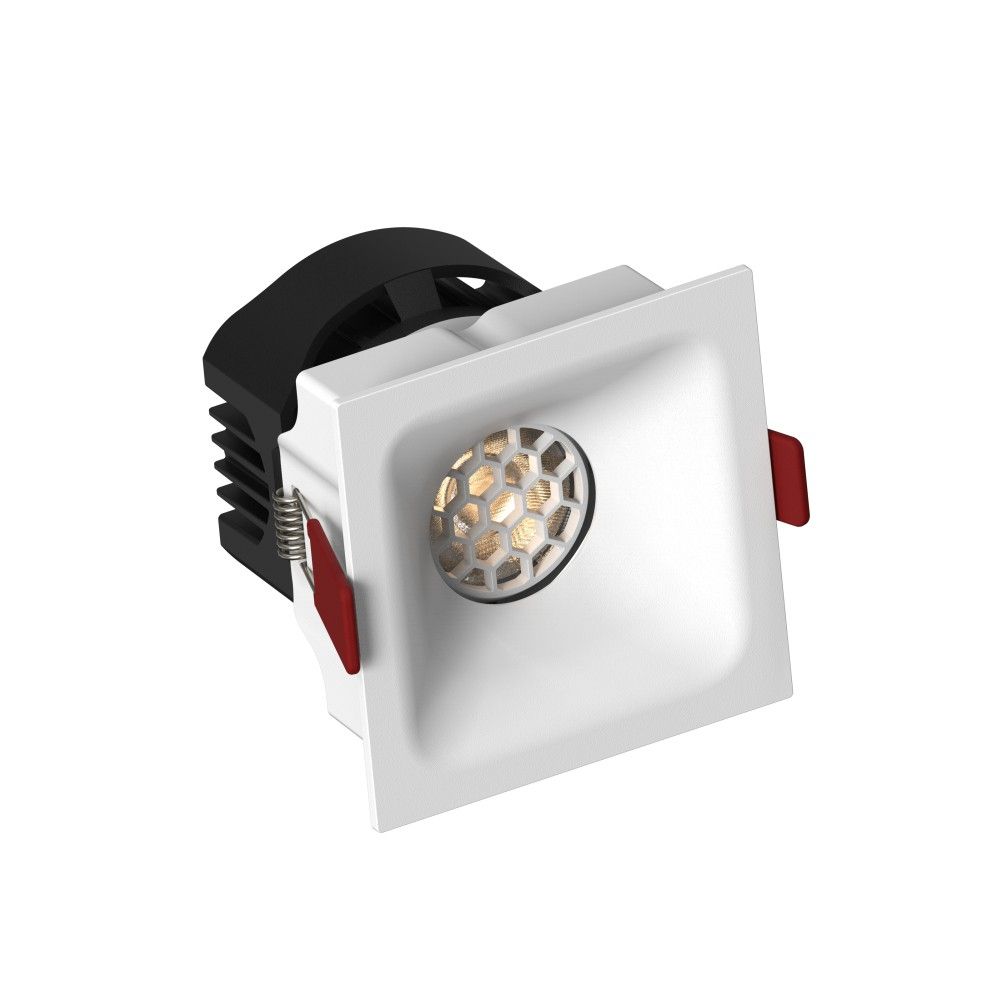

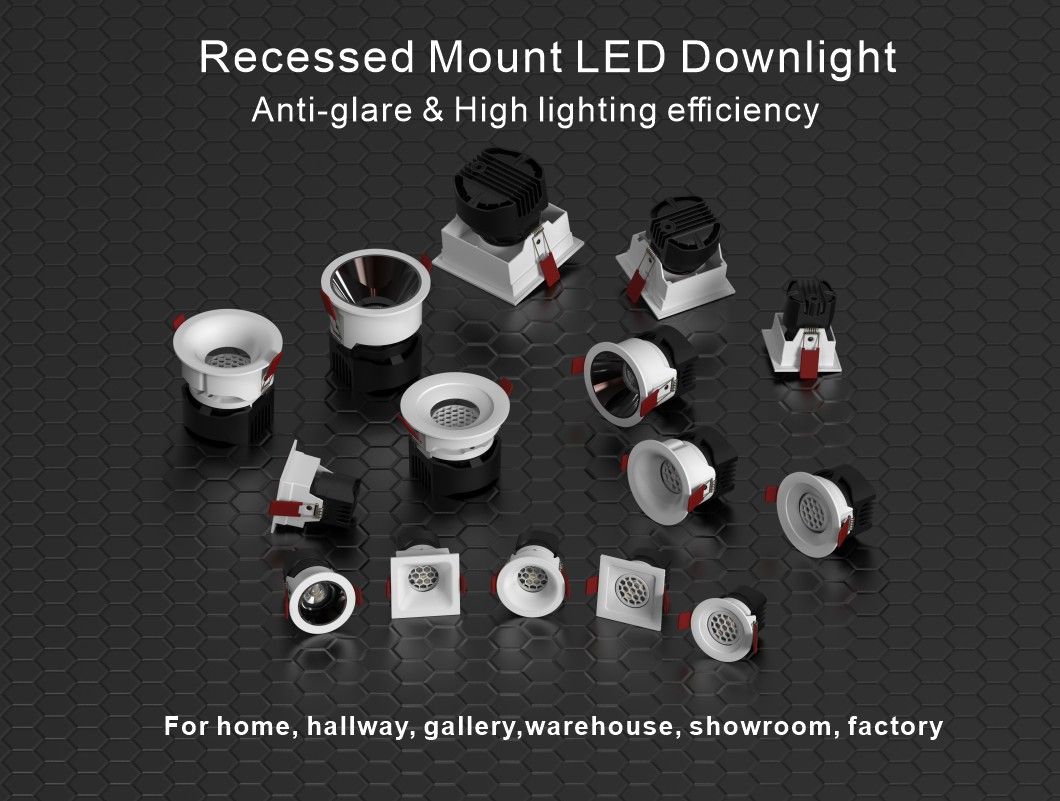

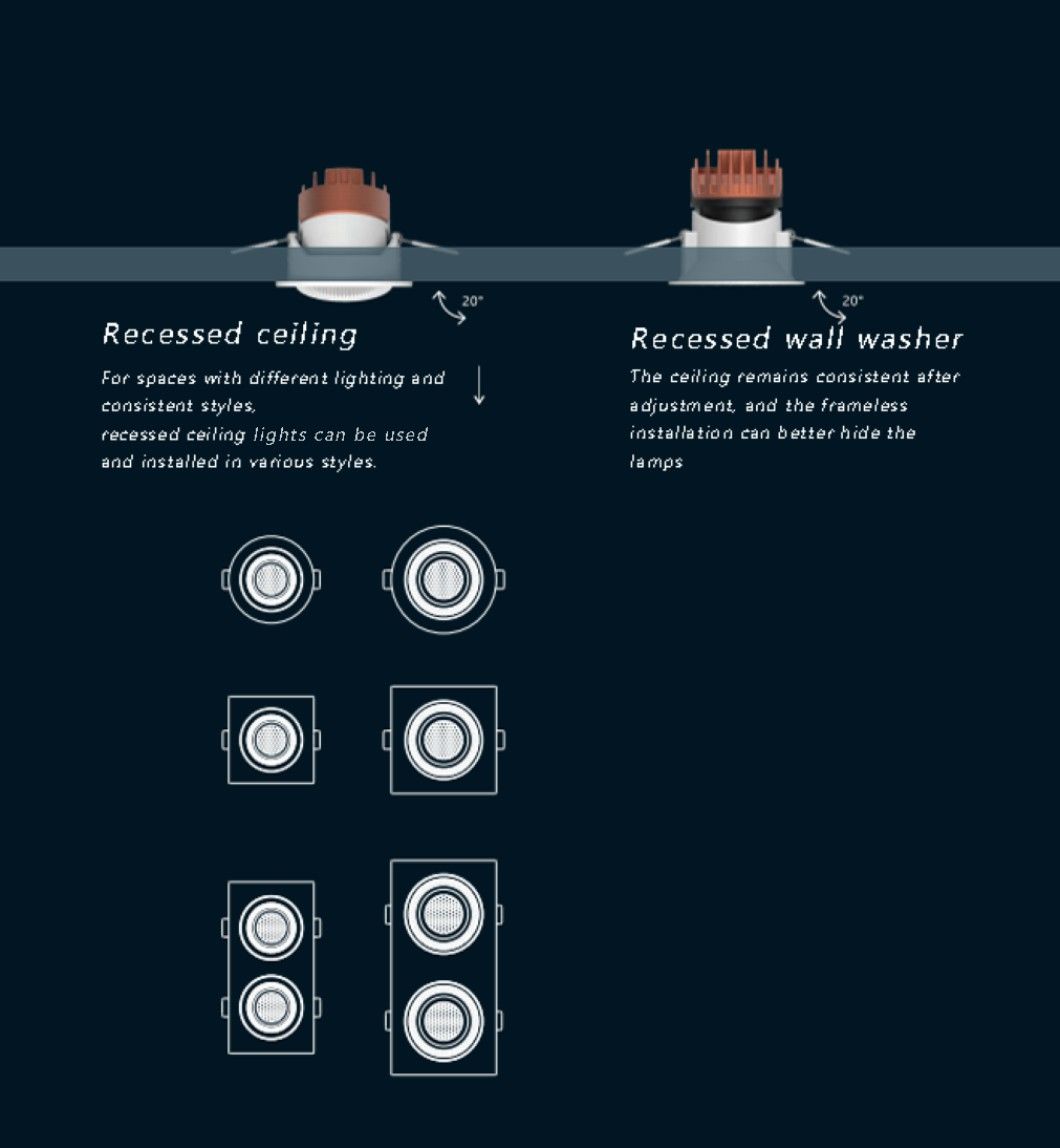

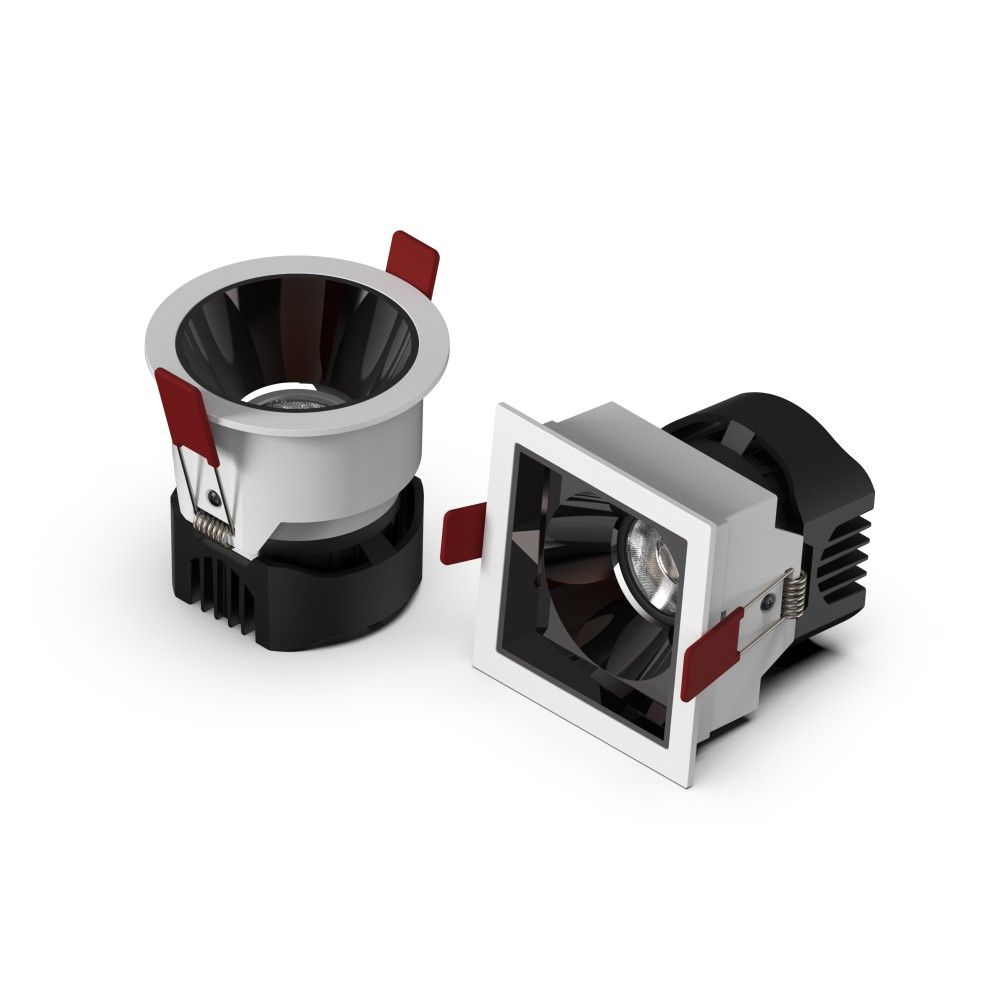

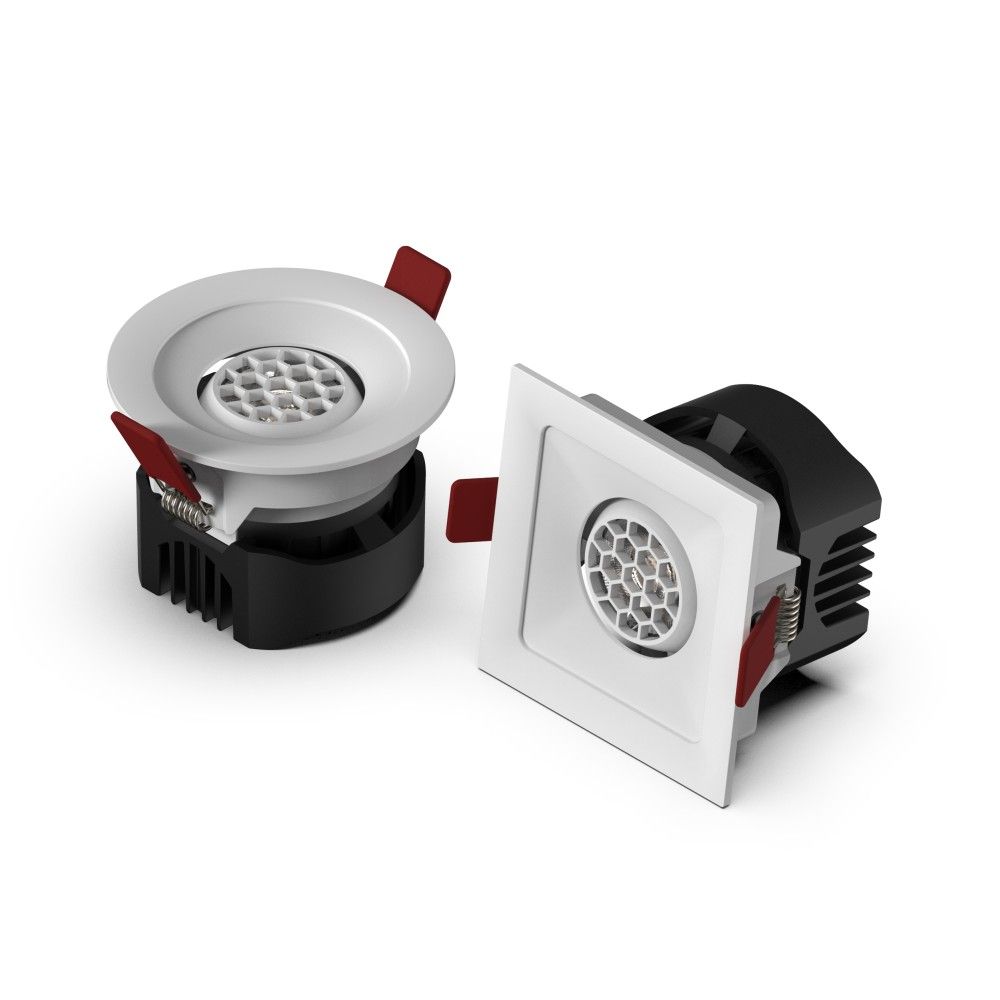

Recessed Trim Mounted LED Downlight
Power: 5W, 10W, 15W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Input voltage: AC220-240V, 50/60Hz, Eaglerise driver
Lighting Efficiency：80-90lm/w
CCT：2700K, 3000K, 3500K, 4000K, 5000K, CCT tunable
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Reflector 15°/24°/36°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White, Black
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole | Direction | Shape |
| FL-SUN55RRA-5W-A | φ68*74mm | φ55mm | Adjustable | Round | |
| FL-SUN75RRA-10W-A | φ88*84mm | φ75mm | |||
| FL-SUN95RRA-15W-A | φ108*105mm | φ95mm | |||
| FL-SUN5555SRA-5W--A | φ68*68*74mm | φ55*55mm | Square | ||
| FL-SUN7575SRA-10W--A | φ88*88*84mm | φ75*75mm | |||
| FL-SUN9595SRA-15W--A | φ108*108*105mm | φ95*95mm | |||
| FL-SUN55RRA-5W-B | φ68*73mm | φ55mm | Round | ||
| FL-SUN75RRA-10W-B | φ88*76mm | φ75mm | |||
| FL-SUN95RRA-15W-B | φ108*93mm | φ95mm | |||
| FL-SUN5555SRA-5W--B | φ68*68*73mm | φ55*55mm | Square | ||
| FL-SUN7575SRA-10W--B | φ88*88*76mm | φ75*75mm | |||
| FL-SUN9595SRA-15W--B | φ108*108*93mm | φ95*95mm | |||
| FL-SUN55RRA-5W-C | φ68*56mm | φ55mm | Round | ||
| FL-SUN75RRA-10W-C | φ88*62mm | φ75mm | |||
| FL-SUN7575SRA-15W--C | φ108*79mm | φ95mm | |||
| FL-SUN5555SRA-5W--C | φ68*68*56mm | φ55*55mm | Square | ||
| FL-SUN7575SRA-10W--C | φ88*88*62mm | φ75*75mm | |||
| FL-SUN9595SRA-15W--C | φ108*108*79mm | φ95*95mm | |||
Application：
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
