Qin series
Focus Lighting Manufacturer
QIN SERIES
Lighten Show:
Explosion Video:
Real Products videos:

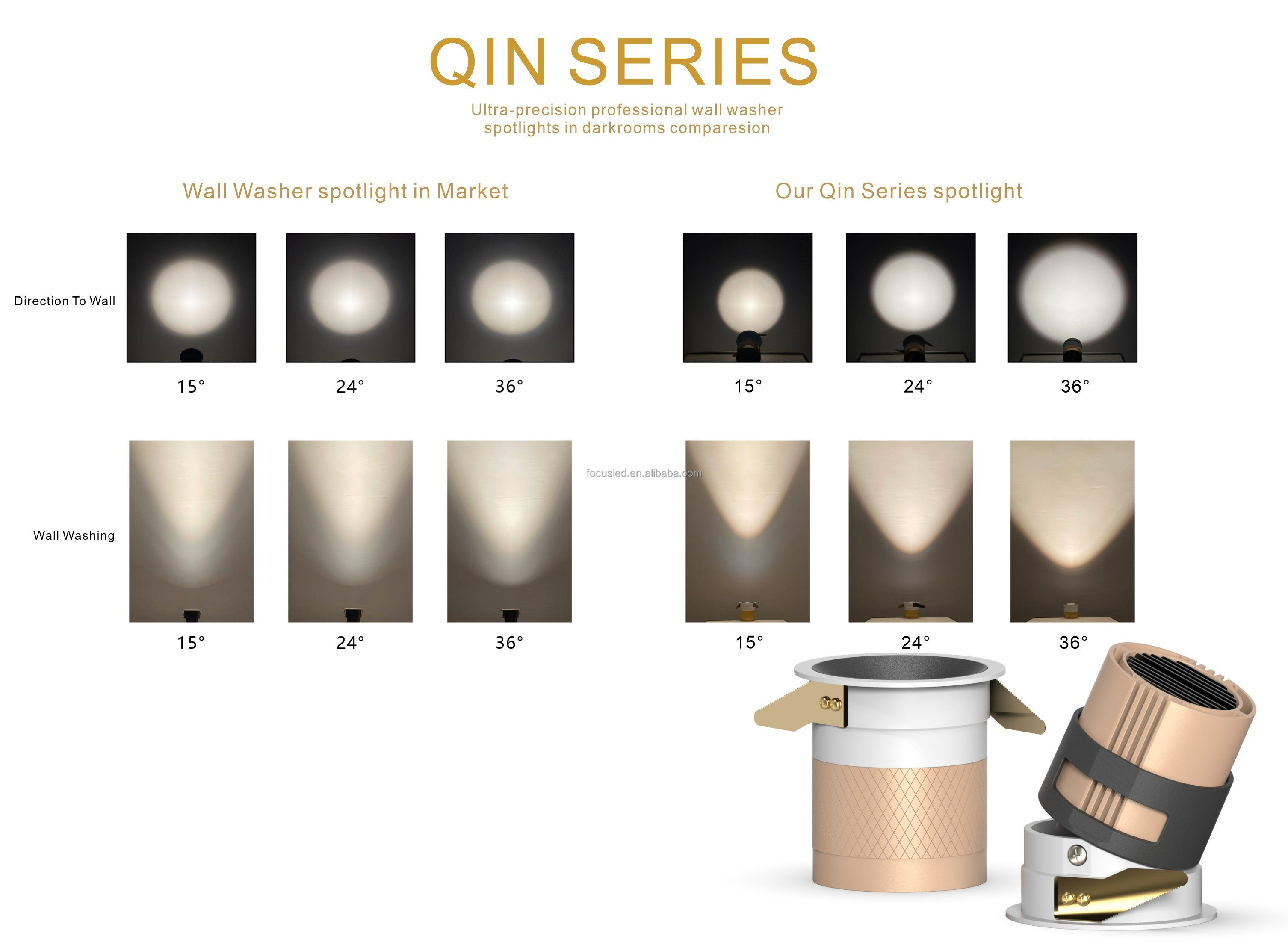

Comparision with other downlights in market, why choose us?
Features:
Eye can clearly distinguish 15° Narrow 24° Middle 36° Flood Beam Angle
Light spot uniformity 95%
UGR<6, efficiency 93%,
SCDM 1.8
Power: 12W
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：120lm/w
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：15°/24°/36°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White housing + Red Goldern
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Recessed Trim Downlight --- Fixed | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-QIN75RRF-12W-15° | 12W | φ82*H83mm | φ75mm | Fixed | Round |
| FL-QIN75RRF-12W-24° | 12W | φ82*H72mm | |||
| FL-QIN75RRF-12W-36° | 12W | φ82*H63mm | |||
| Recessed Trimless Downlight --- Adjustable | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-QIN75RTF-12W-15° | 12W | φ82*H105mm | φ75mm | Adjustable | Round |
| FL-QIN75RTF-12W-24° | 12W | φ82*H89mm | |||
| FL-QIN75RTF-12W-36 | 12W | φ82*H80mm | |||
| Recessed Trim Downlight --- Adjustable | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-QIN75RRA-12W-15° | 12W | φ82*H105mm | φ75mm | Fixed | Round |
| FL-QIN75RRA-12W-24 | 12W | φ82*H89mm | |||
| FL-QIN75RRA-12W-36 | 12W | φ82*H80mm | |||
| Recessed Trimless Downlight --- Adjustable | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-QIN75RTA-12W-15° | 12W | φ70*H105mm | φ75mm | Adjustable | Round |
| FL-QIN75RTA-12W-24° | 12W | φ70*H89mm | |||
| FL-QIN75RTA-12W-36° | 12W | φ70*H80mm | |||
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
