Ma series
Focus Lighting Manufacturer

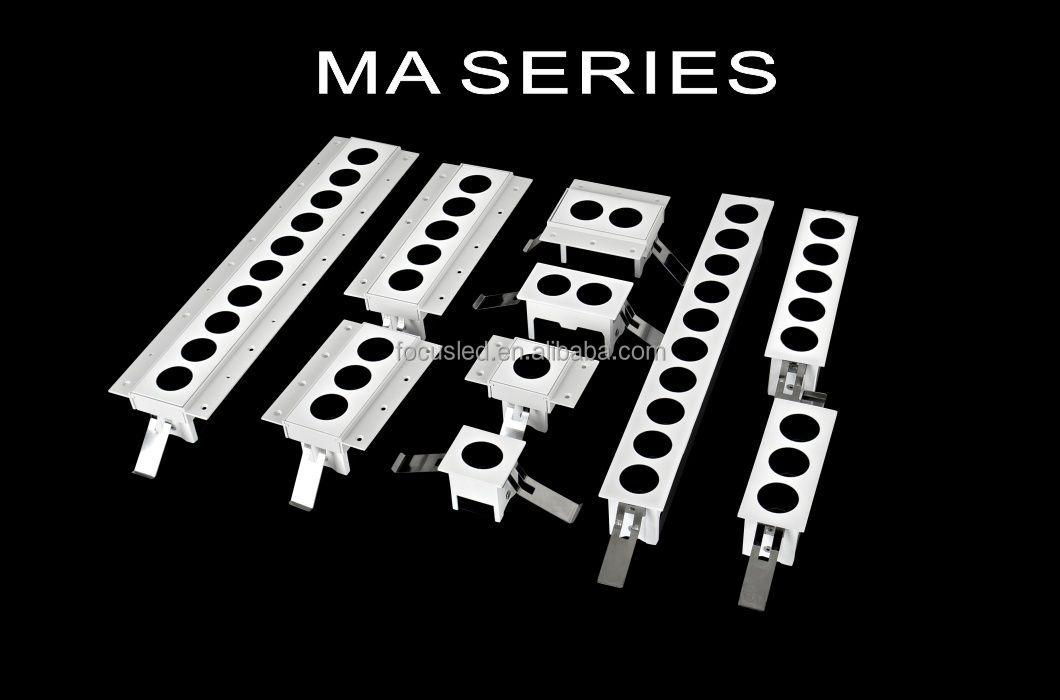

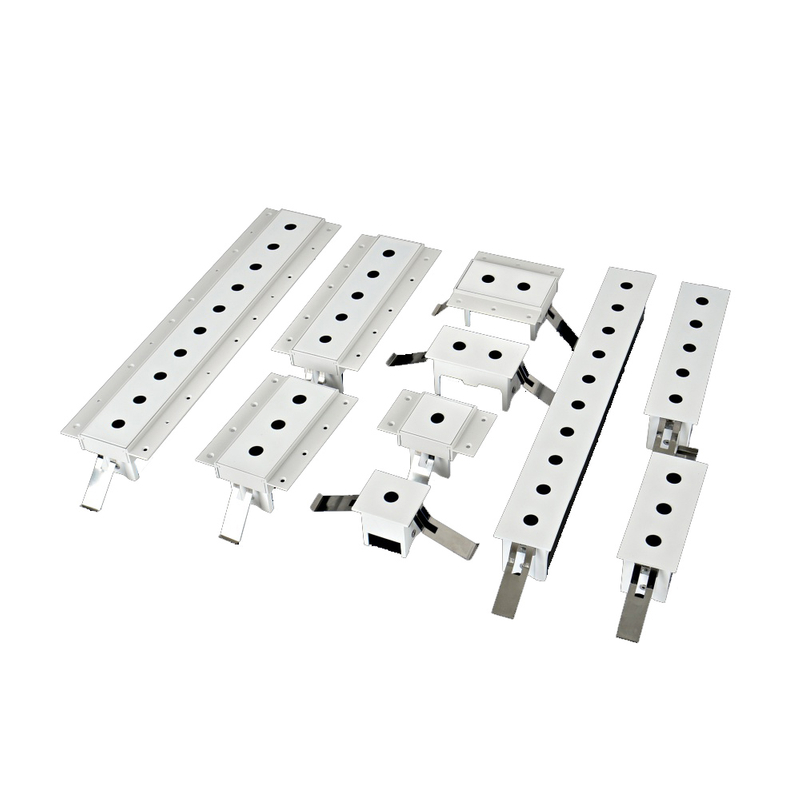

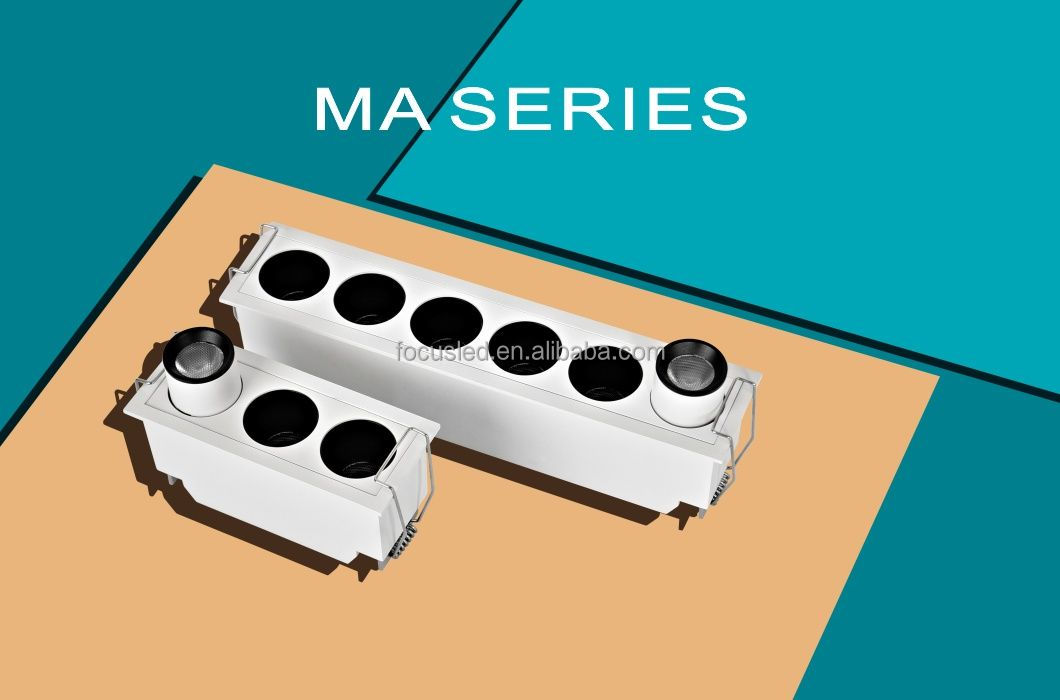

MA SERIES
Real products video show:

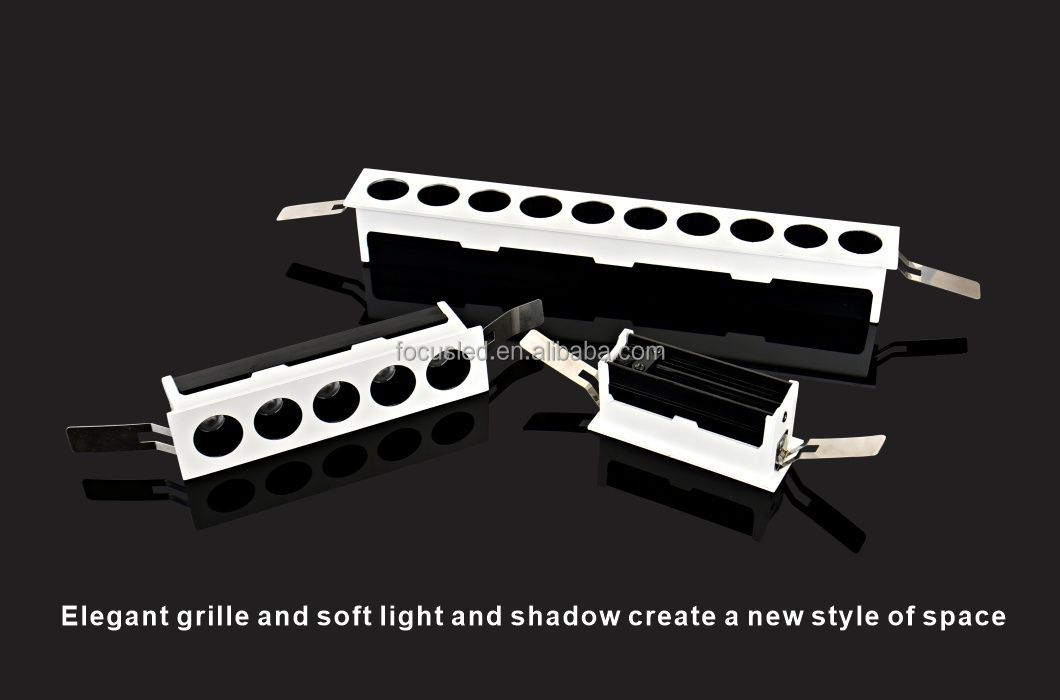

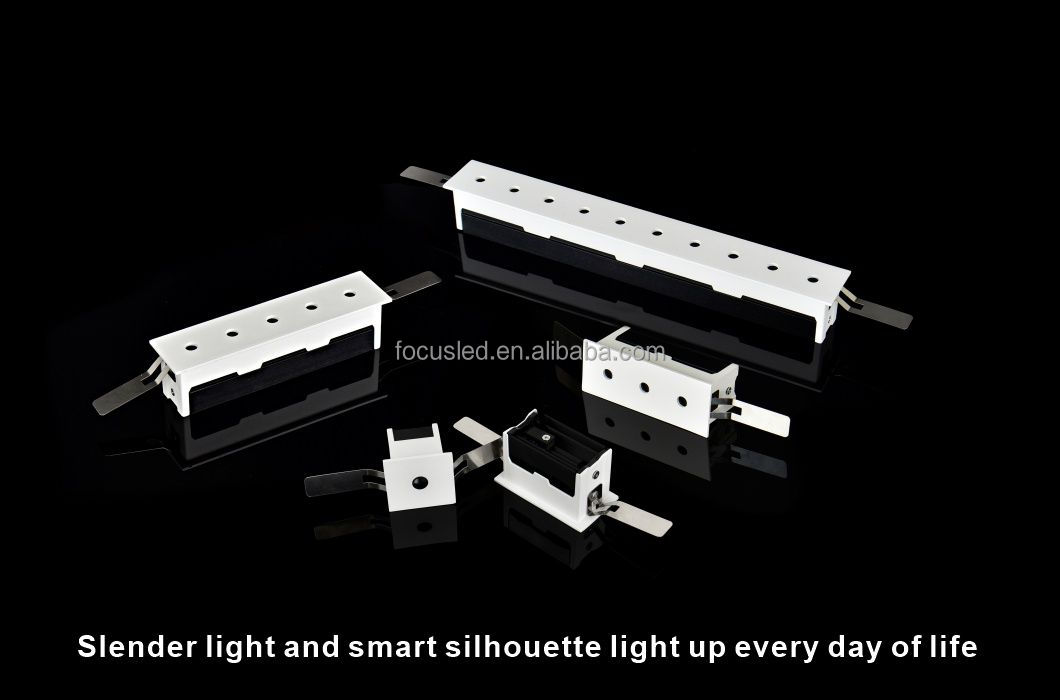

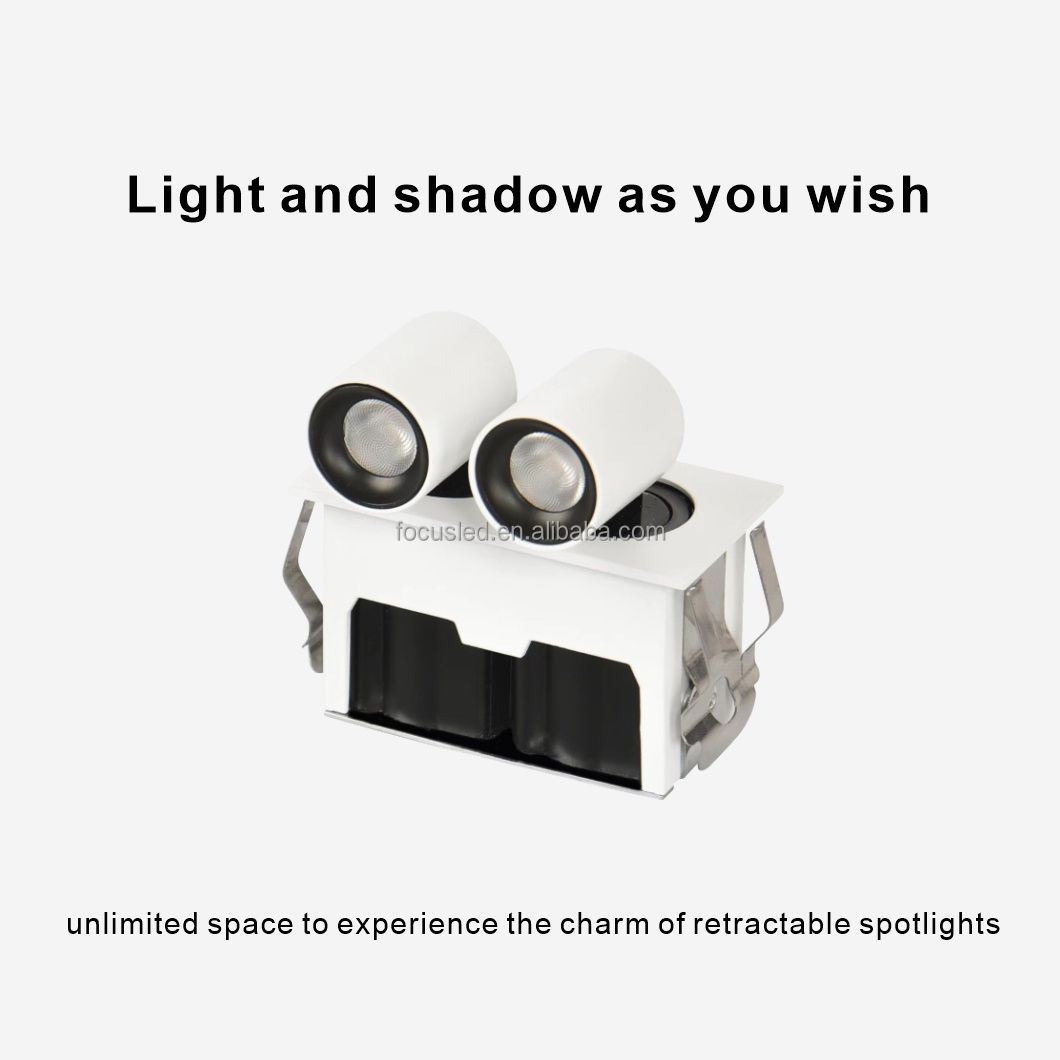

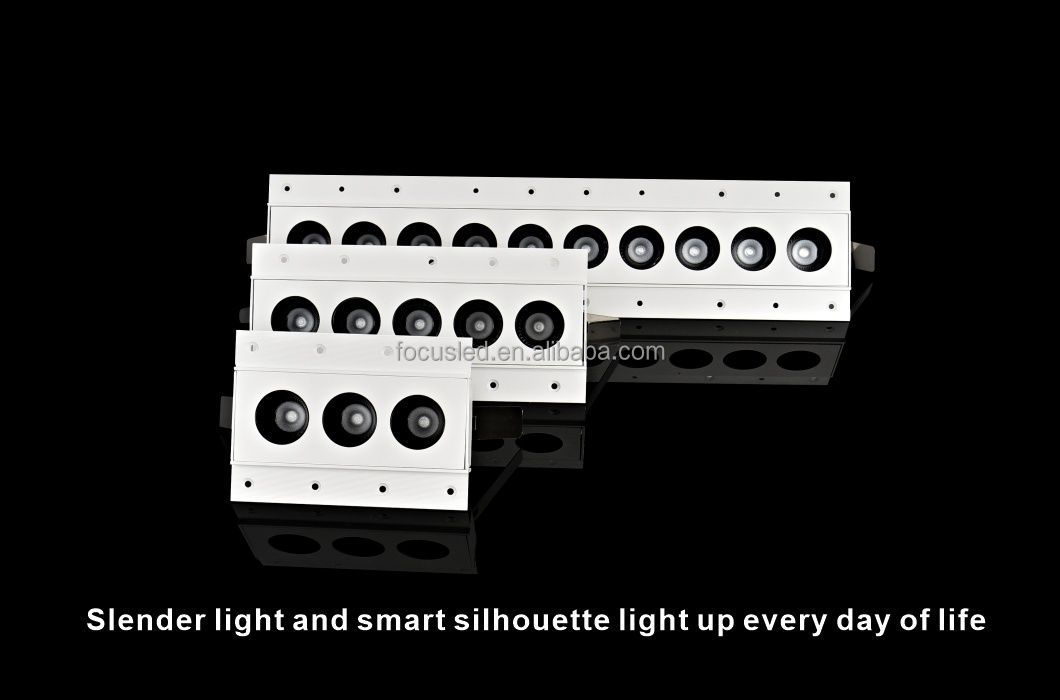

Big Eye/ Small Eye/ Retrackable model with trim and trimless model:
Features:
1/2/3/5/10 heads, Each Heads max power 2W
Power: 2W, 4W, 6W, 10W, 20W
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：60-70lm/w
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Reflector 30°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White/Black
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-MA4035SRF-2W-A | 2W | φ43*40*43mm | φ40*35mm | Fixed | Square |
| FL-MA6835RERF-4W-A | 4W | φ72*40*43mm | φ68*35mm | Rectangle | |
| FL-MA9635RERF-6W-A | 6W | φ100*40*43mm | φ96*35mm | ||
| FL-MA15635RERF-10W-A | 10W | φ162*40*43mm | φ156*35mm | ||
| FL-MA30635RERF-20W-A | 20W | φ312*40*43mm | φ306*35mm | ||
| FL-MA4035SRF-2W-B | 2W | φ43*40*43mm | φ40*35mm | Square | |
| FL-MA6835RERF-4W-B | 4W | φ72*40*43mm | φ68*35mm | Rectangle | |
| FL-MA9635RERF-6W-B | 6W | φ100*40*43mm | φ96*35mm | ||
| FL-MA15635RERF-10W-B | 10W | φ162*40*43mm | φ156*35mm | ||
| FL-MA30635RERF-20W-B | 20W | φ312*40*43mm | φ306*35mm | ||
| FL-MA4035SRA-2W | 2W | φ43*40*52mm | φ40*35mm | Square | |
| FL-MA6835RERA-4W | 4W | φ72*40*52mm | φ68*35mm | Rectangle | |
| FL-MA9635RERA-6W | 6W | φ100*40*52mm | φ96*35mm | ||
| FL-MA15635RERA-6W | 6W | φ162*40*52mm | φ156*35mm | ||
| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-MA4646STF-2W-A | 2W | φ46*76*43mm | φ46*46mm | Fixed | Square |
| FL-MA7646RETF-4W-A | 4W | φ76*76*43mm | φ76*46mm | Rectangle | |
| FL-MA10646RETF-6W-A | 6W | φ105*76*43mm | φ106*46mm | ||
| FL-MA16646RETF-10W-A | 10W | φ165*76*43mm | φ166*46mm | ||
| FL-MA31646RETF-20W-A | 20W | φ315*76*43mm | φ316*46mm | ||
| FL-MA4646STF-2W-B | 2W | φ46*76*43mm | φ46*46mm | Square | |
| FL-MA7646RETF-4W-B | 4W | φ76*76*43mm | φ76*46mm | Rectangle | |
| FL-MA10646RETF-6W-B | 6W | φ105*76*43mm | φ106*46mm | ||
| FL-MA16646RETF-10W-B | 10W | φ165*76*43mm | φ166*46mm | ||
| FL-MA31646RETF-20W-B | 20W | φ315*76*43mm | φ316*46mm | ||
| FL-MA4646STA-2W | 2W | φ75*47*52mm | φ46*46mm | Square | |
| FL-MA10646RETA-4W | 4W | φ105*76*52mm | φ106*46mm | Rectangle | |
| FL-MA16646RETA-6W | 6W | φ165*76*52mm | φ166*46mm | ||
| FL-MA31646RETA-10W | 10W | φ315*76*52mm | φ316*46mm | ||
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
