Luo series
Focus Lighting Manufacturer
LUO SERIES
Product video:
Features:
3/ 6/ 9 heads, Each Heads max power 1.5W
Power: 4.5W, 9W, 18W

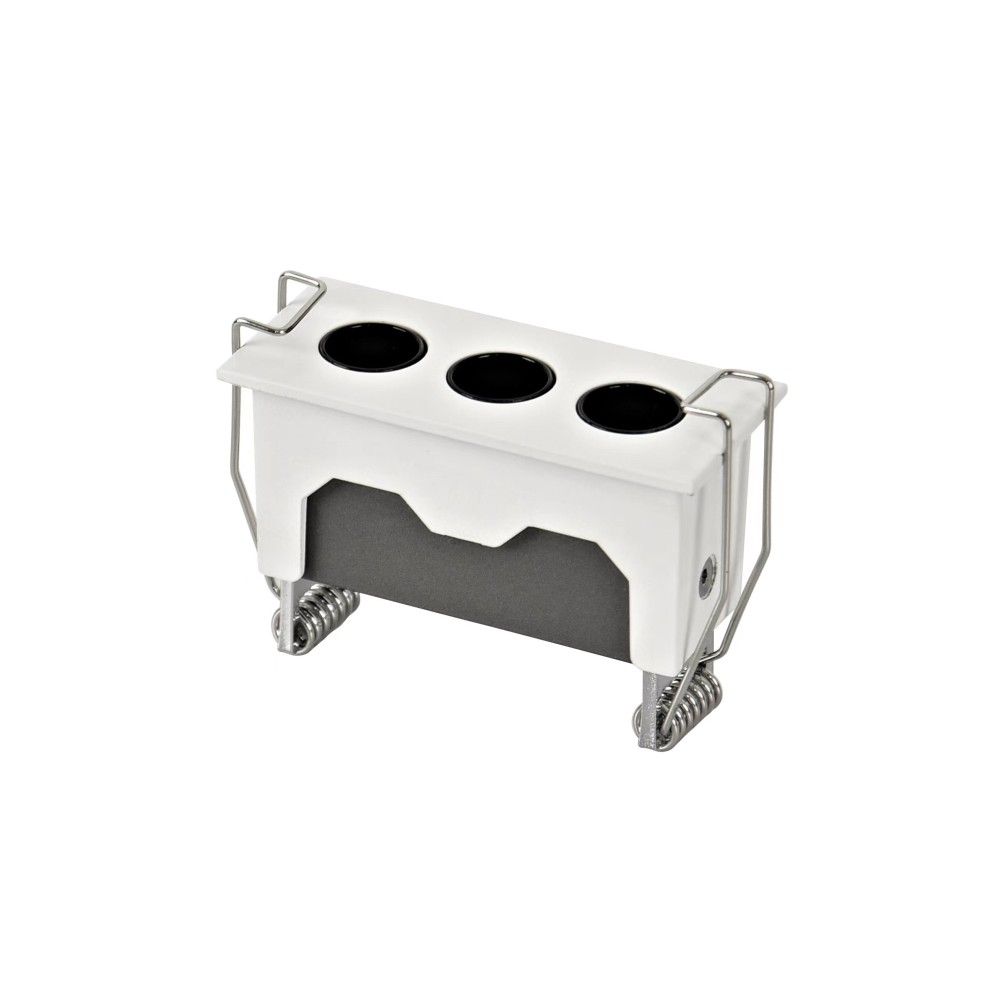

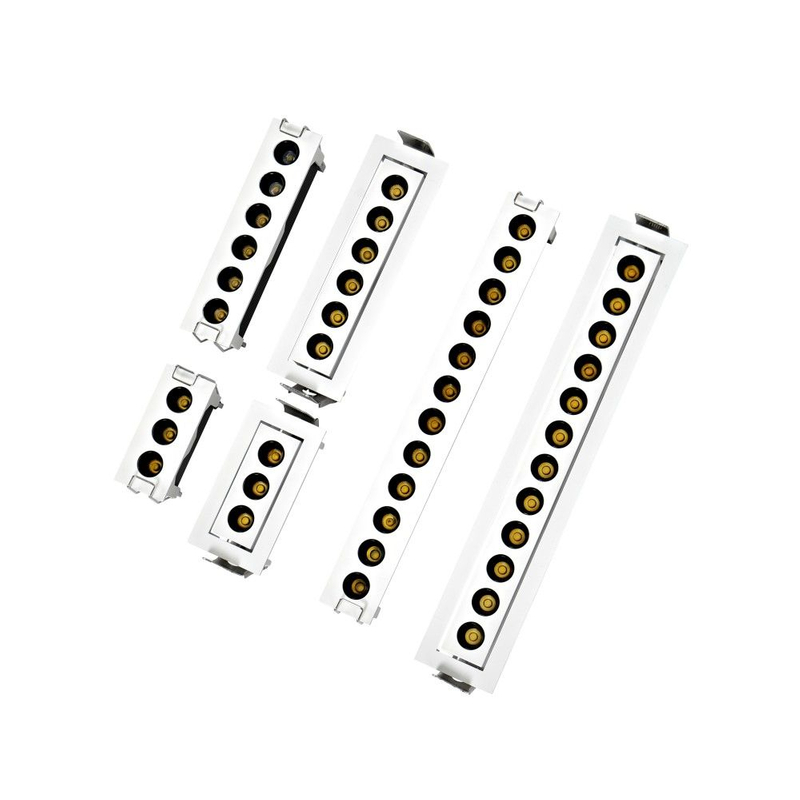

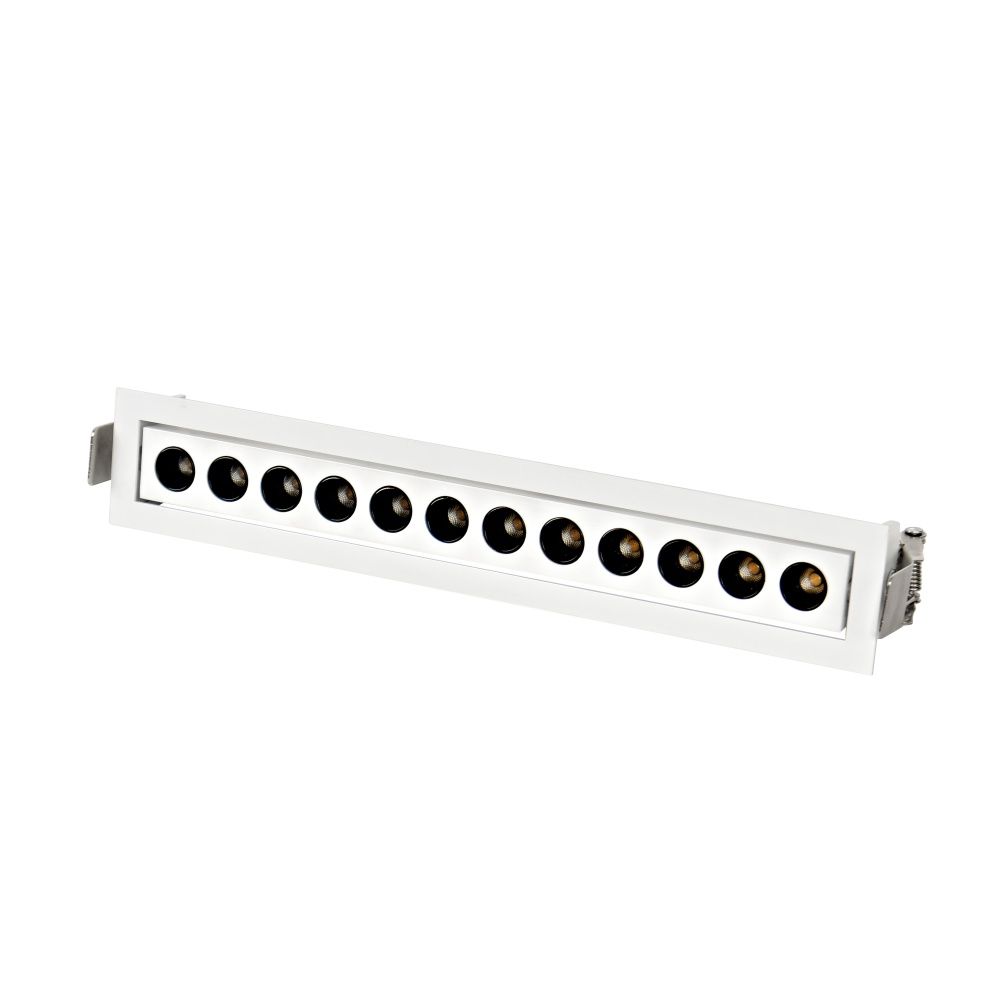

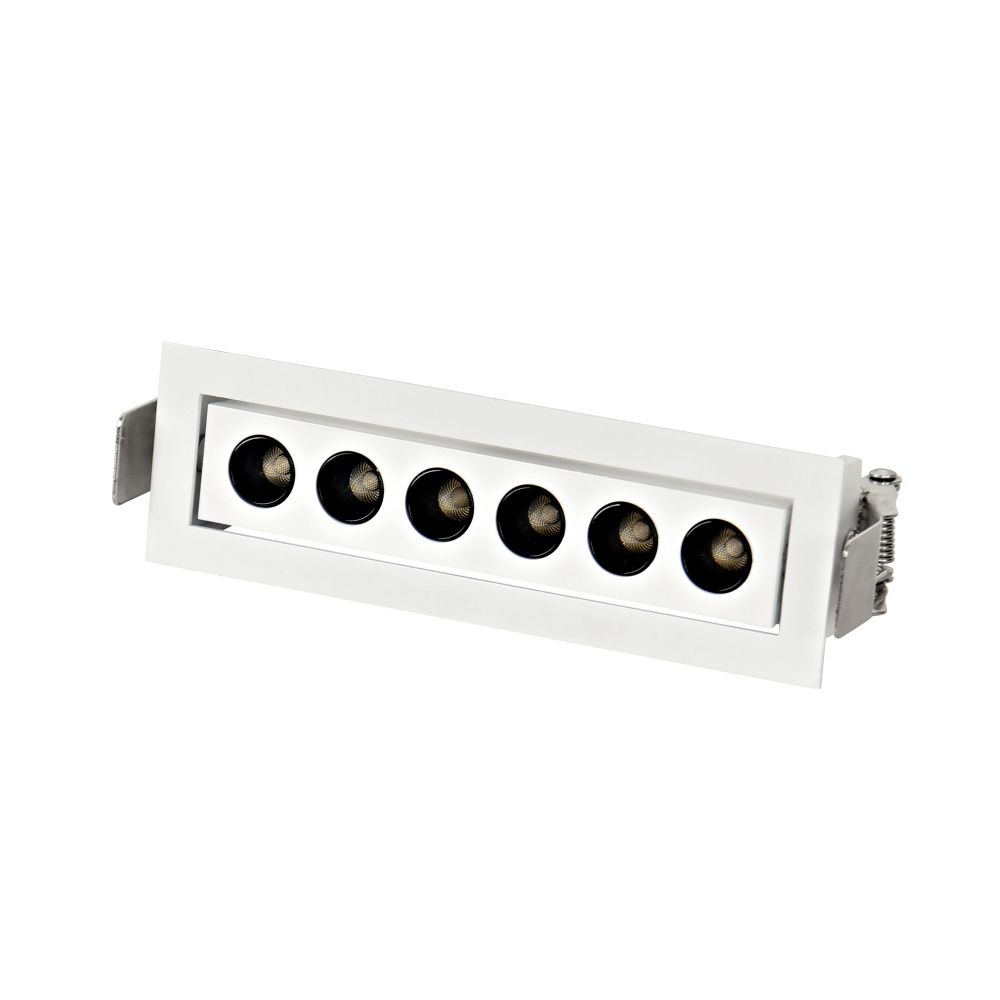

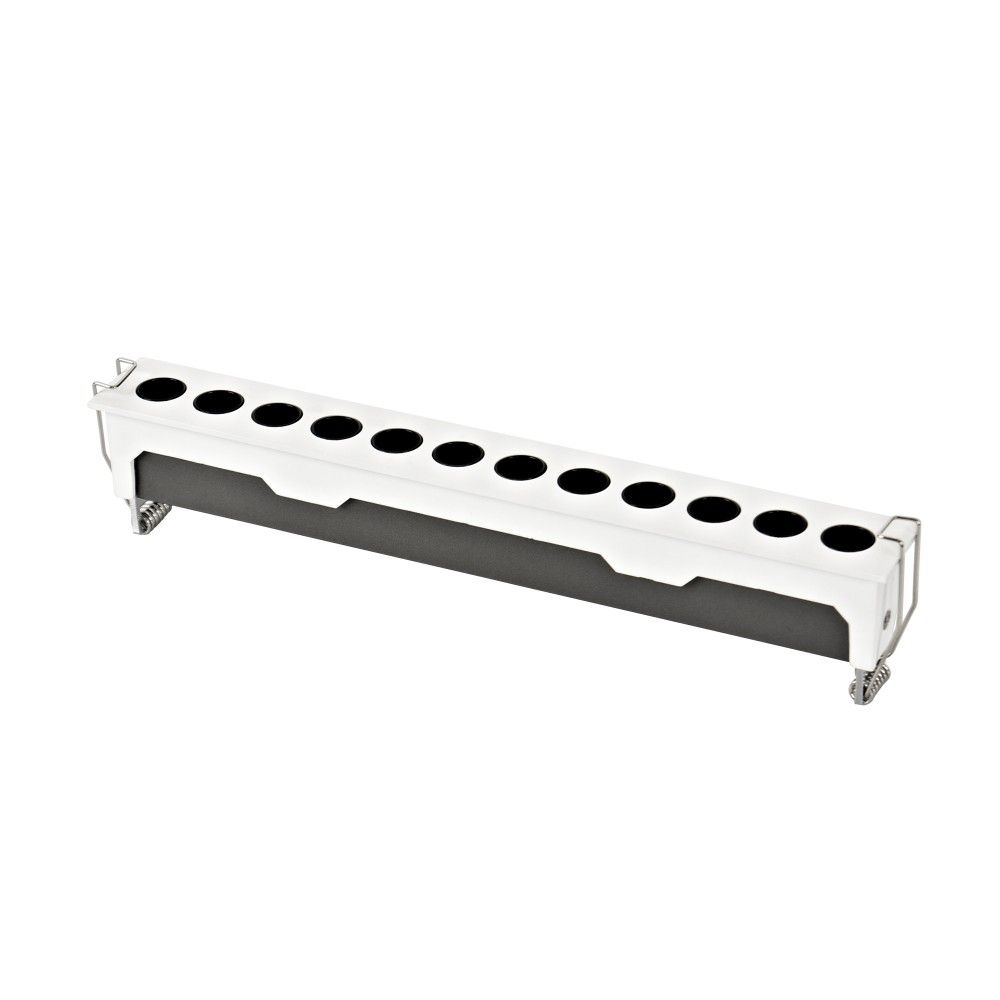

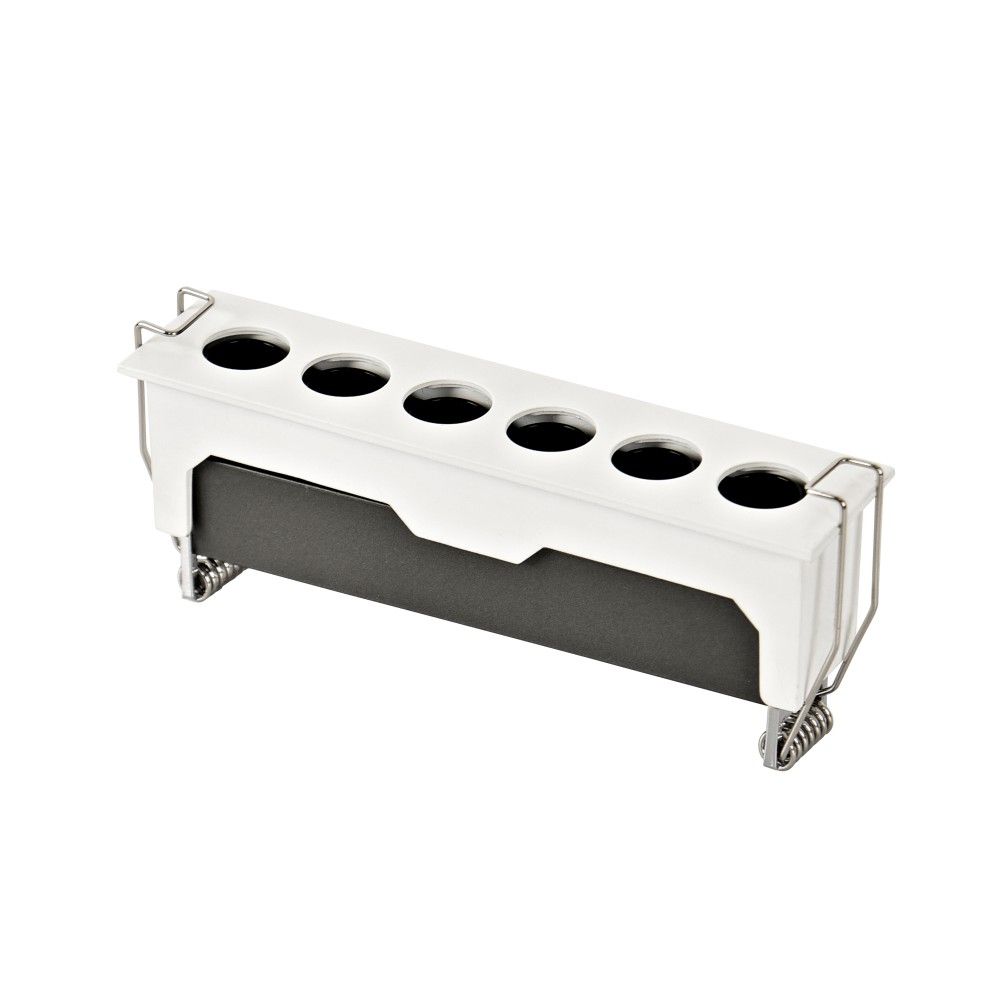

Fixed and adjustable module, Recessed Trim and trimless model
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：60-70lm/w
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Reflector 30°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White/Black
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：

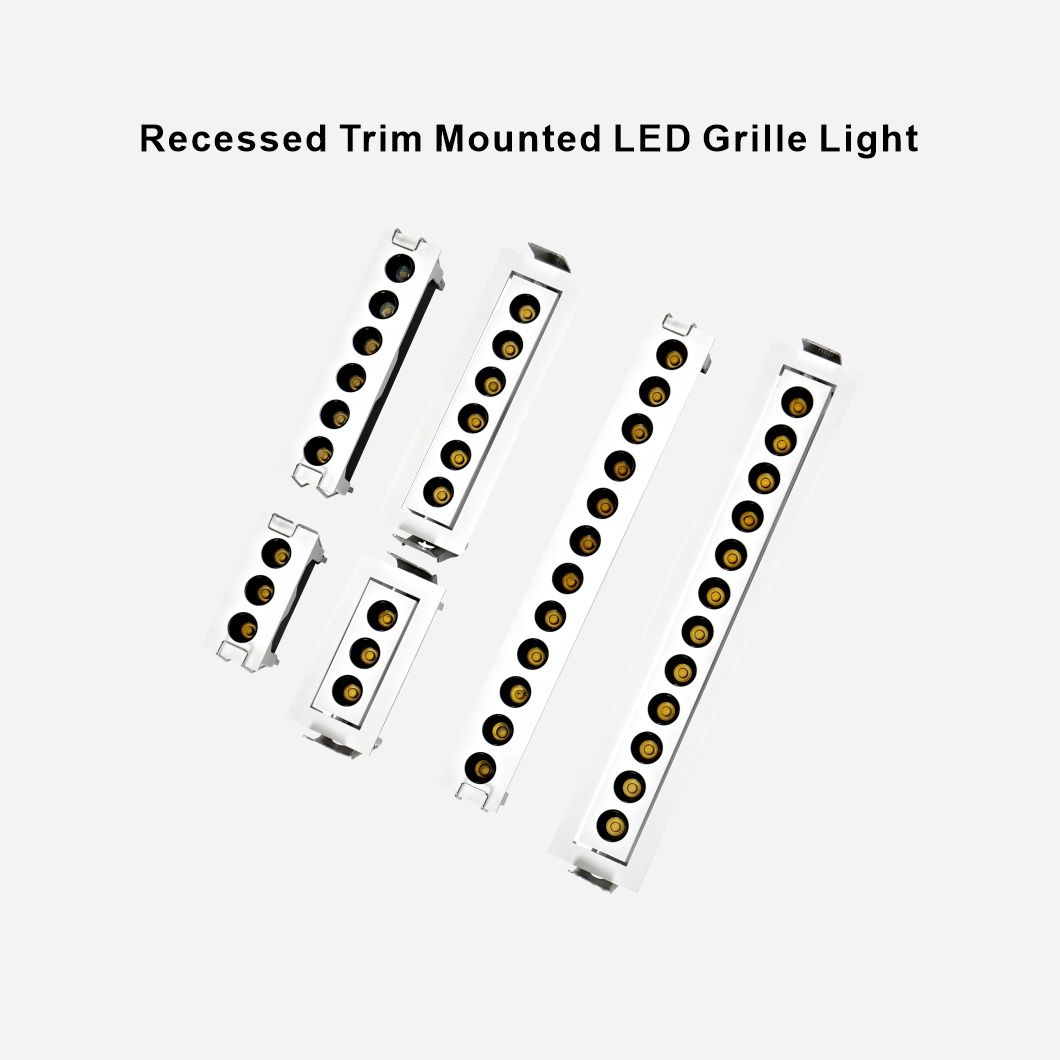

| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-LUO6825RERF-4.5W | 4.5W | φ73*32*47.5mm | φ68*25mm | Fixed | Rectangle |
| FL-LUO12825RERF-9W | 9W | φ133*32*47.5mm | φ128*25mm | ||
| FL-LUO24825RERF-18W | 18W | φ253*32*47.5mm | φ248*25mm | ||
| FL-LUO8238RERA-4.5W | 4.5W | φ89*47*58mm | φ82*38mm | Adjustable | |
| FL-LUO14438RERA-9W | 9W | φ149*47*58mm | φ144*38mm | ||
| FL-LUO26238RERA-18W | 18W | φ269*47*58mm | φ262*38mm | ||
| Recessed Trim Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-LUO7030RETF-4.5W | 4.5W | φ70*67*55mm | φ70*30mm | Fixed | Rectangle |
| FL-LUO13030RETF-9W | 9W | φ130*67*55mm | φ130*30mm | ||
| FL-LUO25030RETF-18W | 18W | φ250*67*55mm | φ250*30mm | ||
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
