Liang series
Focus Lighting Manufacturer
LIANG SERIES
Features:
1/ 3/ 4/ 7/ 9 heads, Each Heads max power 2W

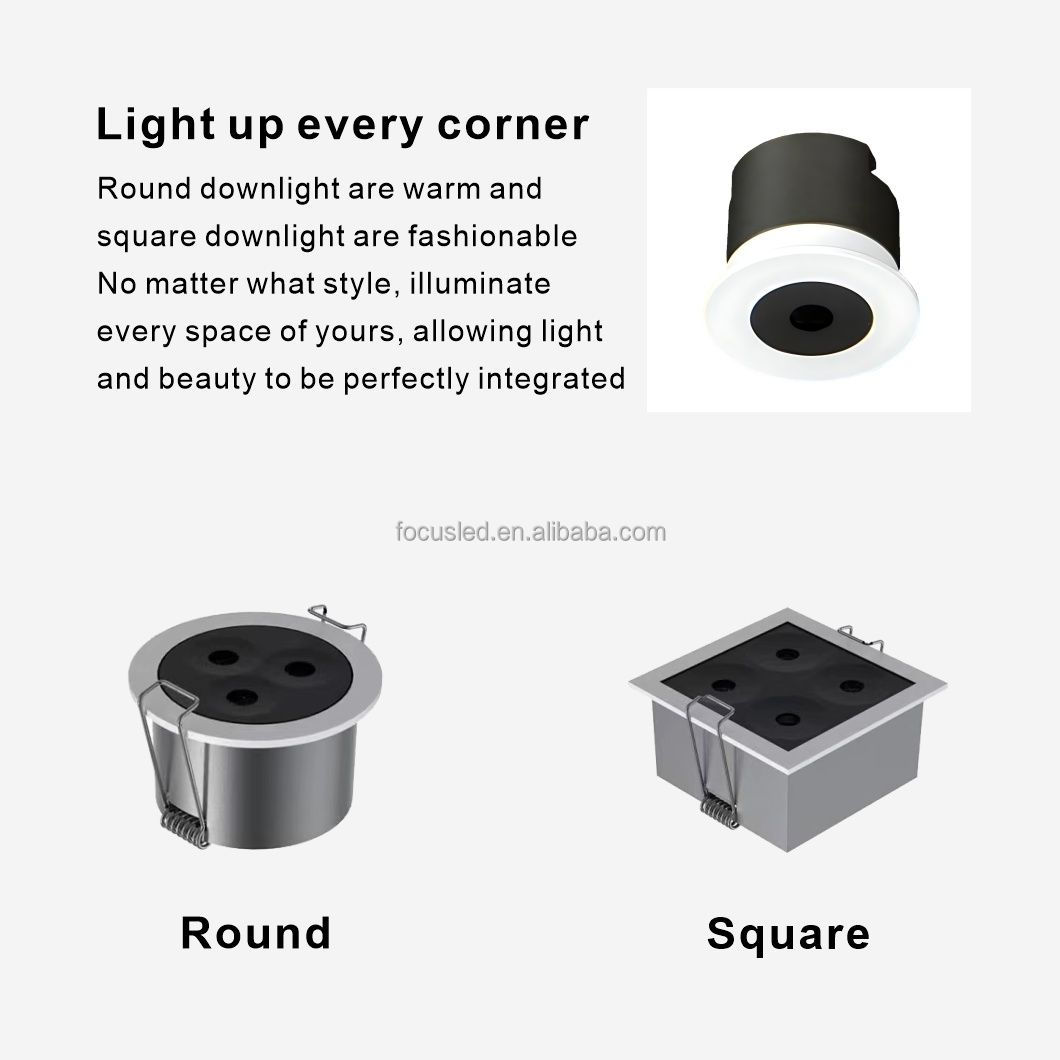

Round or Square Design, Anti-Glare Design
Power: 2W, 6W, 8W, 14W, 18W
Input voltage: AC220-240V, 50/60Hz, Eaglerise drive
Lighting Efficiency：60-70lm/w
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Reflector 30°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White + Gray
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
specifications：
| Recessed Trimless Mounted | |||||
| Model | Power | Product Size | Cuthole size | Direction | Shape |
| FL-LIANG35RRF-2W | 2W | φ40*32mm | φ35mm | Fixed | Round |
| FL-LIANG55RRF-6W | 6W | φ62*40mm | φ55mm | ||
| FL-LIANG75RRF-14W | 14W | φ82*40mm | φ75mm | ||
| FL-LIANG6868SRF-8W | 8W | φ74*74*40mm | φ68*68mm | Square | |
| FL-LIANG9797SRF-18W | 18W | φ105*105*40mm | φ97*97mm | ||
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
