Gao series
Focus Lighting Manufacturer
GAO SERIES
Features:
Suitable for all application Recessed Trim, Surface, Hanging, Track rail
Power: 7W, 10W, 20W, 30W
Input voltage: AC220-240V, 50/60Hz, Eaglerise driver
Lighting Efficiency：80lm/W
CCT：2700K, 3000K, 3500K, 4000K, 5000K, CCT tunable
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Lens 15°/24°/36°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming

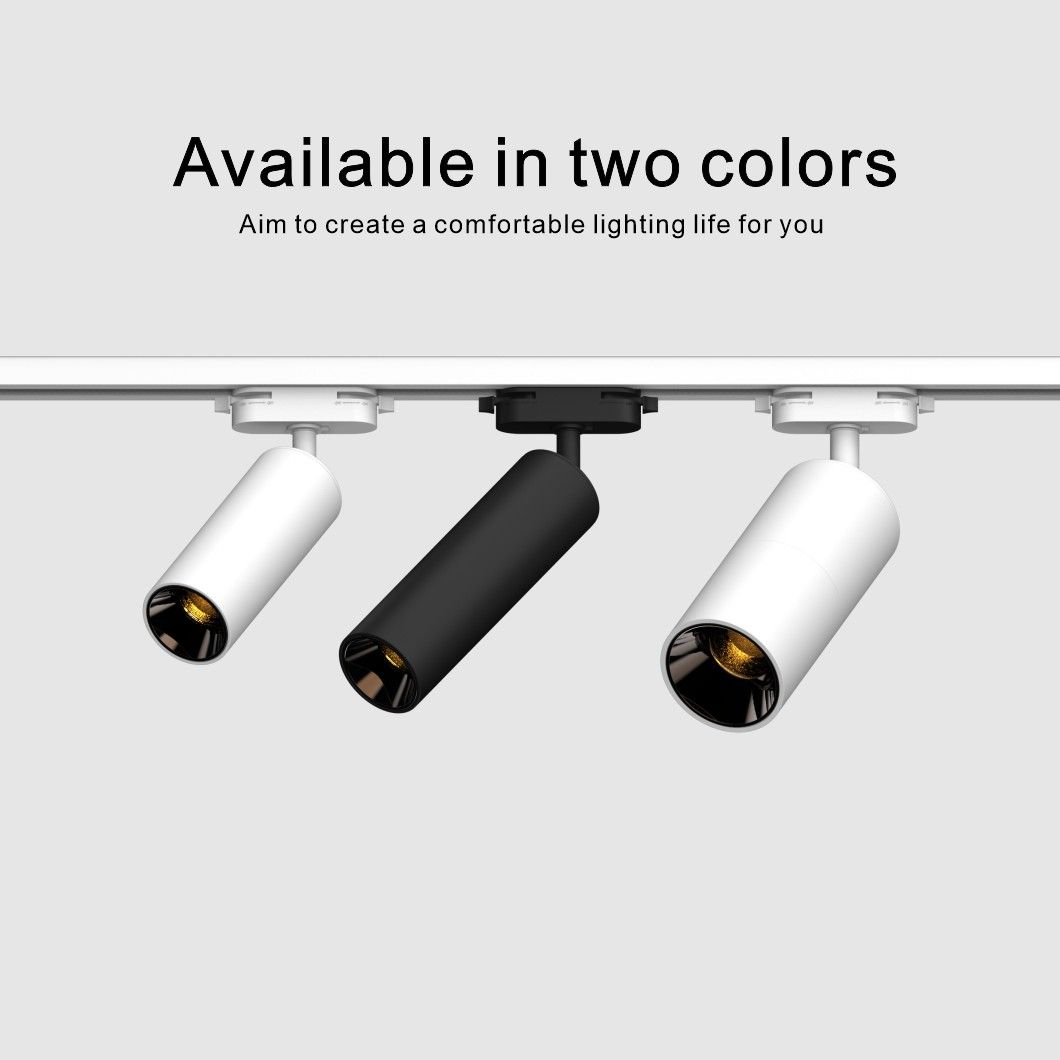

Housing Color：White, Black
Warranty：5 years
Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：

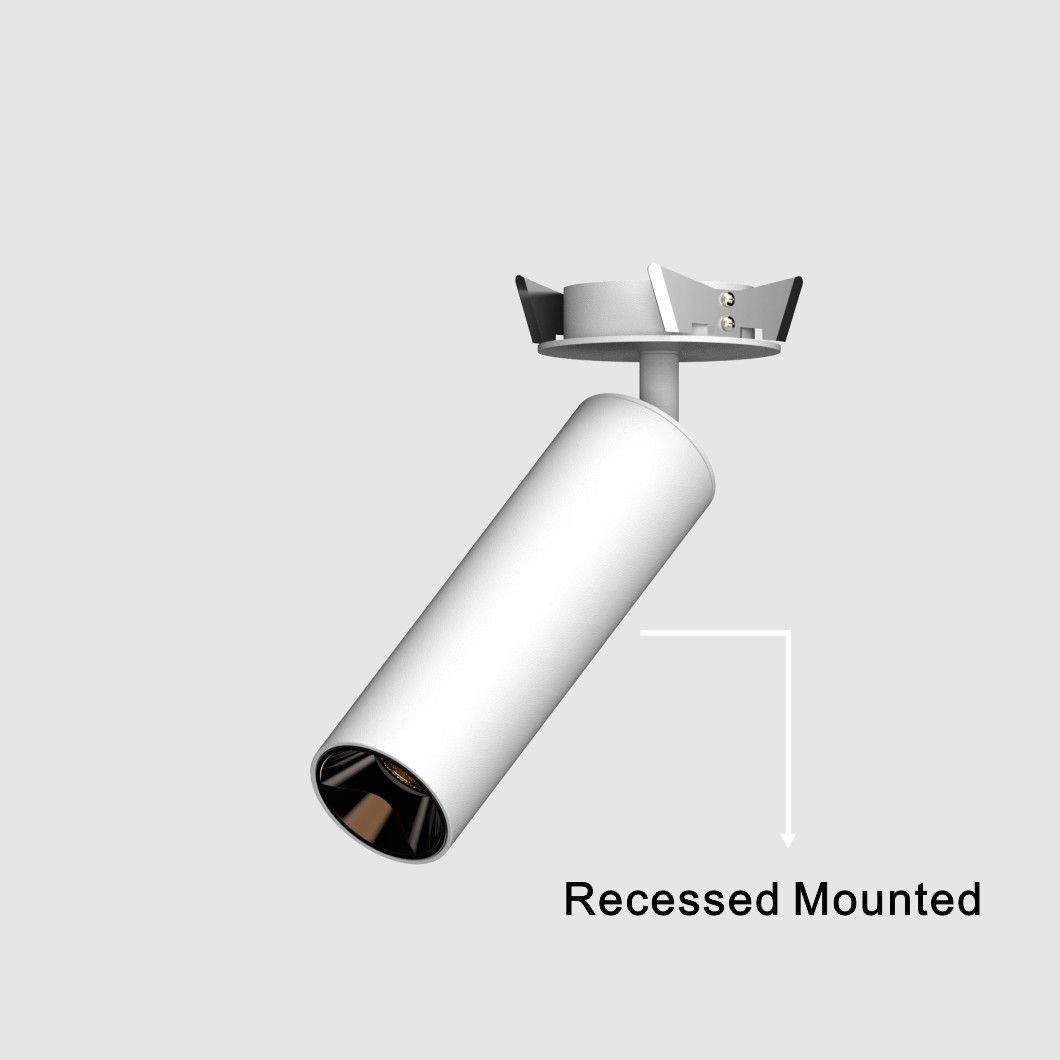

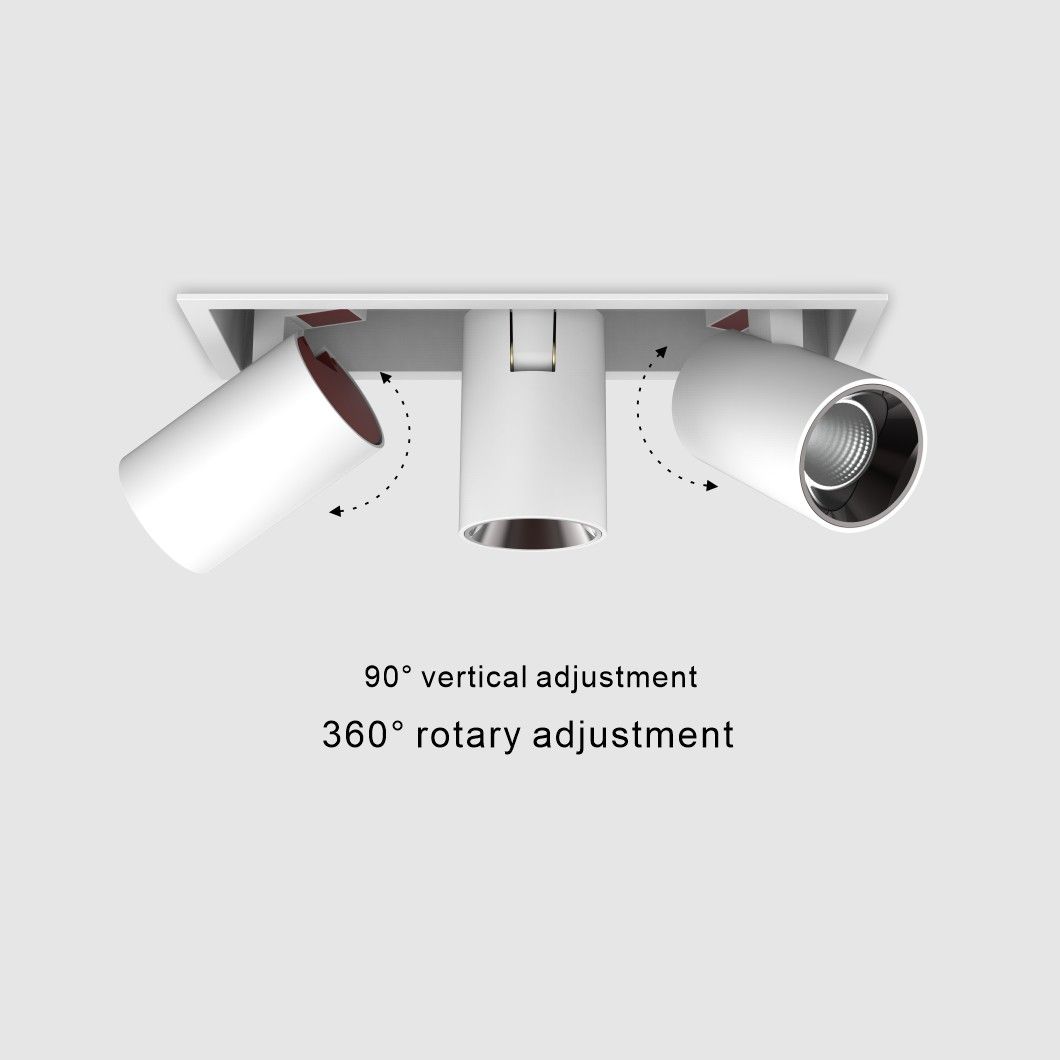

| Recessed Mounted | |||||
| Model | Power | Product Size | Cuthole | Direction | Shape |
| FL-GAO75RRA-07W | 7W | φ55*137mm | φ75mm | Adjustable | Round |
| FL-GAO75RRA-10W | 10W | φ55*172mm | φ75mm | ||

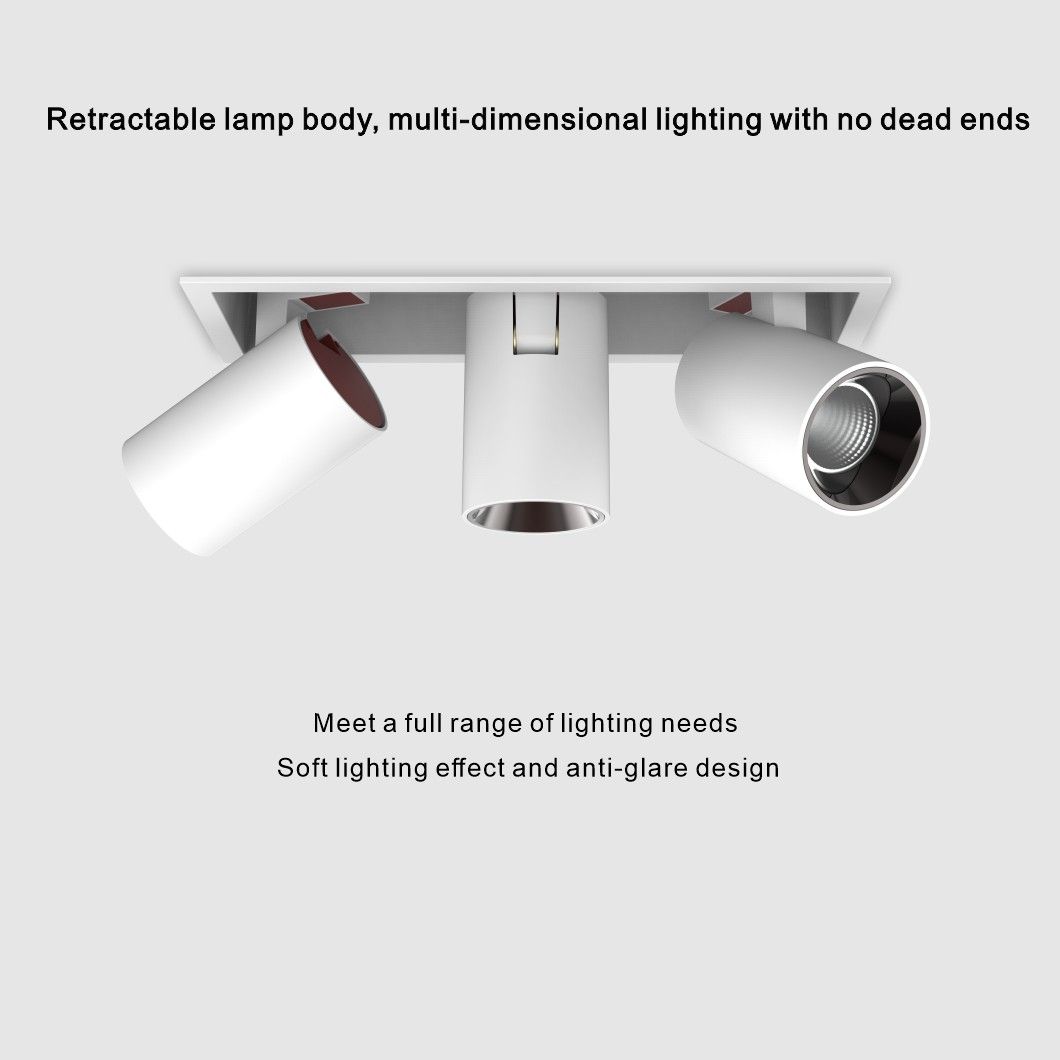

| FL-GAO7575SRA-10W | 10W | φ88*88*43mm | φ75*75mm | Square | |

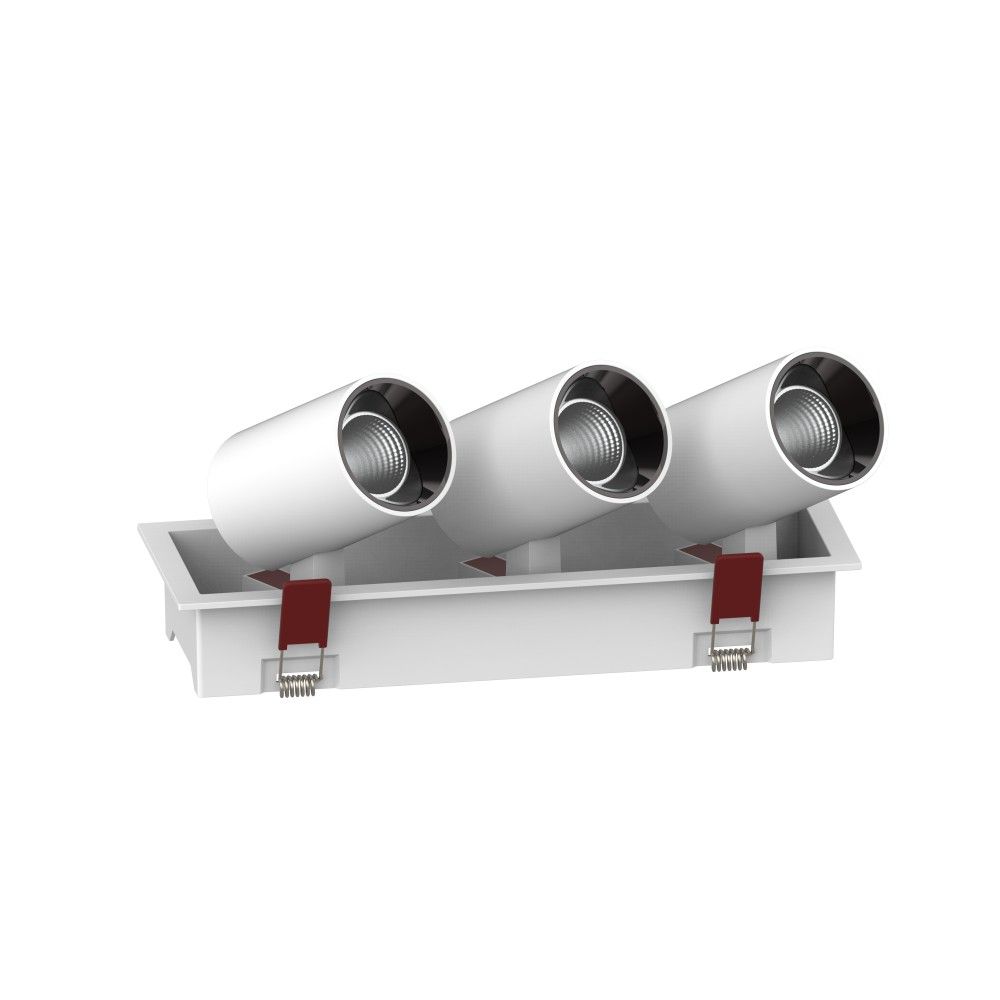

| FL-GAO16075RERA2-20W | 20W | φ173*88*43mm | φ160*75mm | Rectangle | |
| FL-GAO24075RERA3-30W | 30W | φ253*88*43mm | φ240*75mm | ||

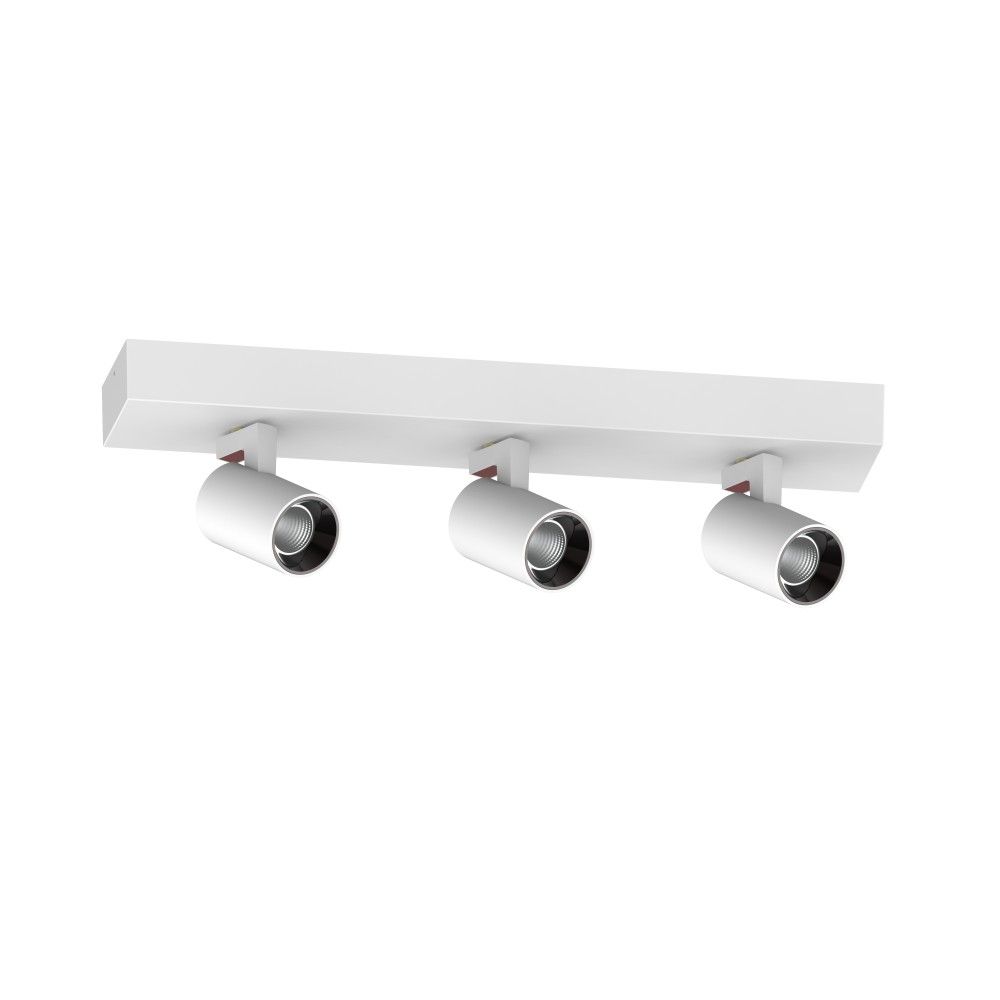

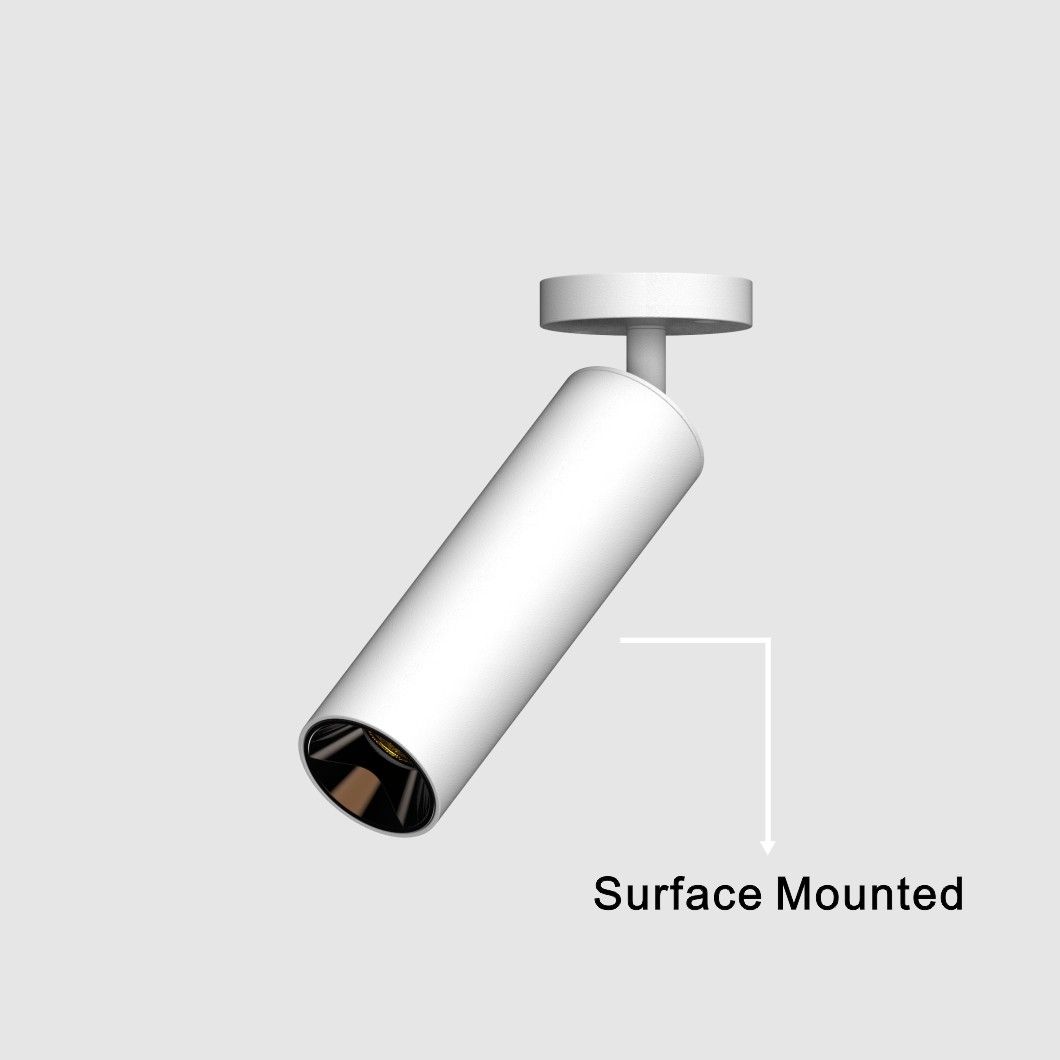

| Surface Mounted | ||||
| Model | Power | Product Size | Direction | Shape |

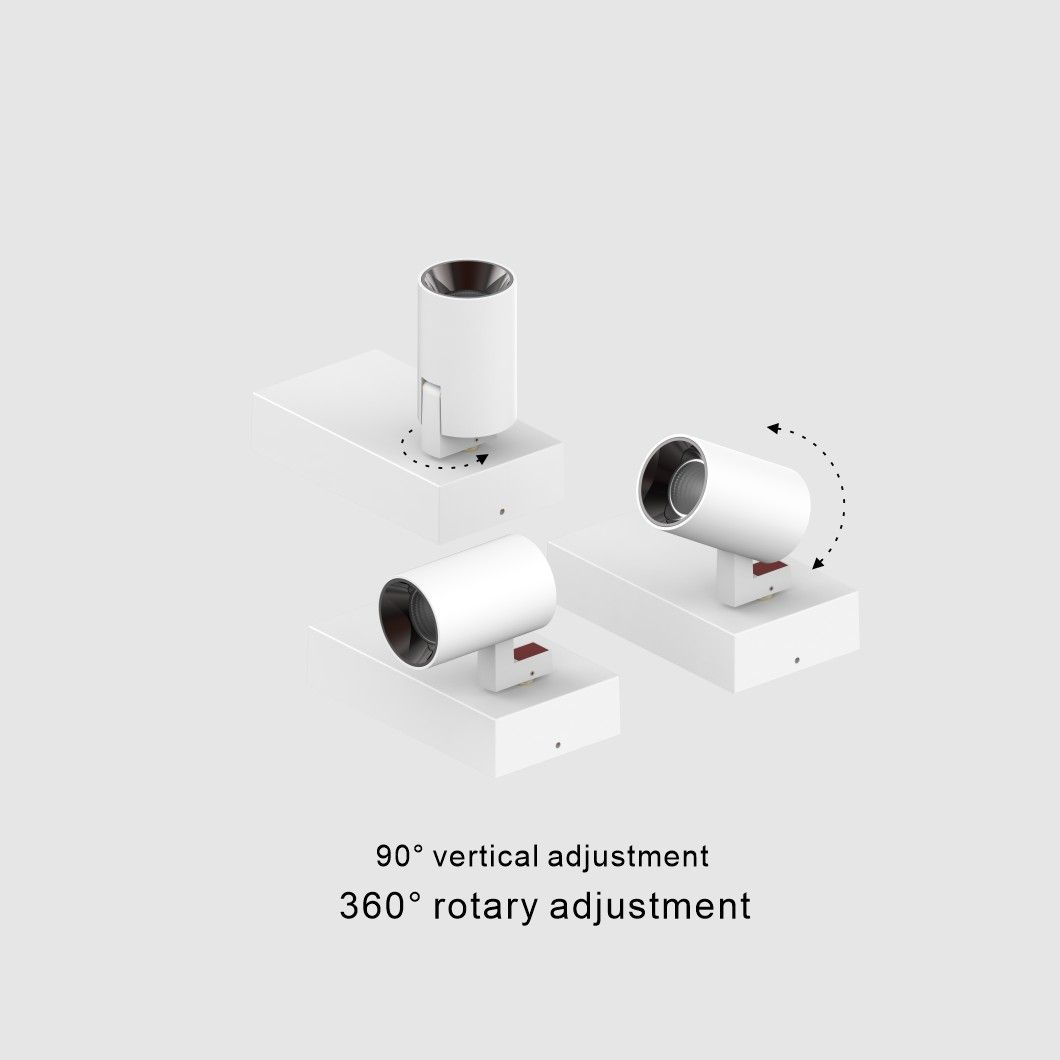

| FL-GAORSA-07W | 7W | φ55*137mm | Adjustable | Round |
| FL-GAORSA-10W | 10W | φ55*172mm | ||

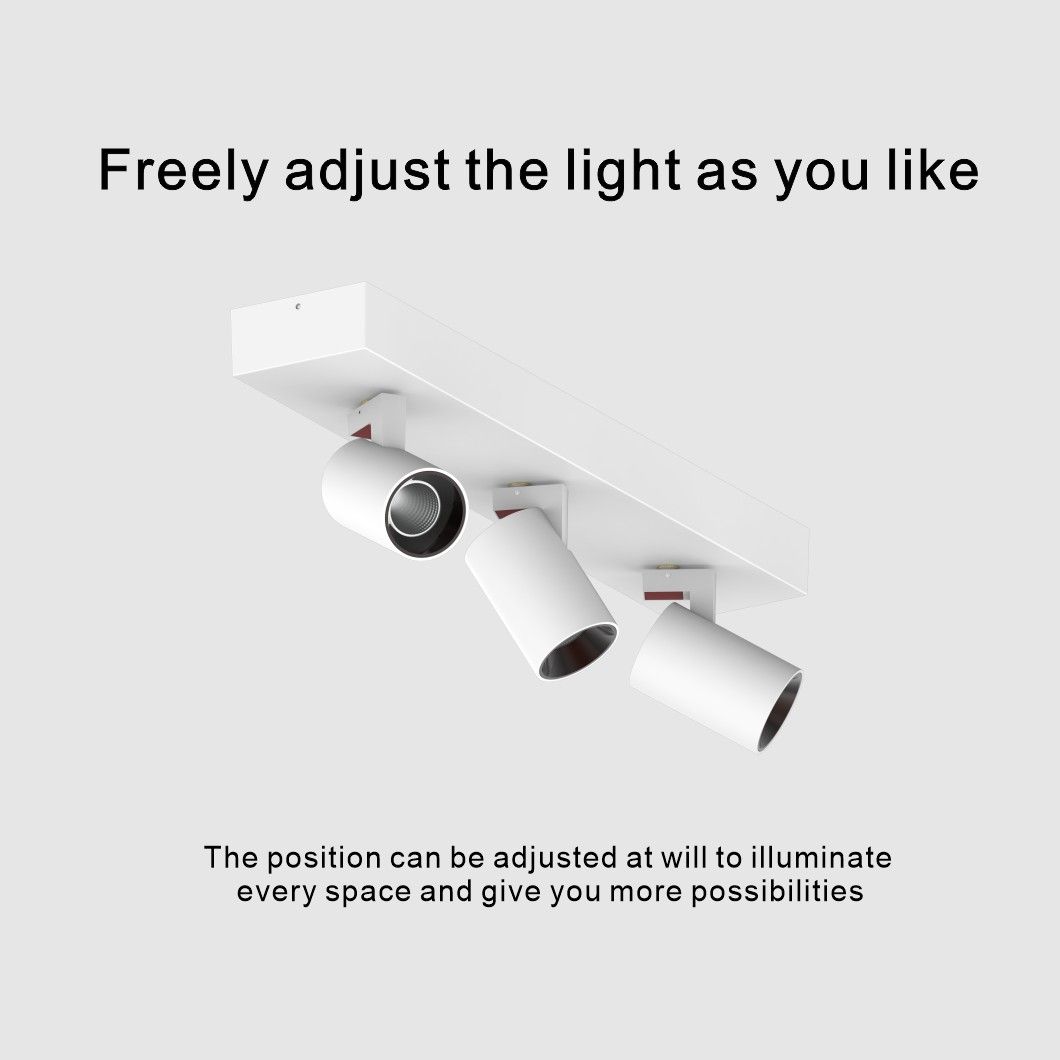

| FL-GAORESA-10W | 10W | φ160*90mm | Rectangle | |
| FL-GAORESA2-20W | 20W | φ320*90mm | ||
| FL-GAORESA3-30W | 30W | φ480*90mm | ||

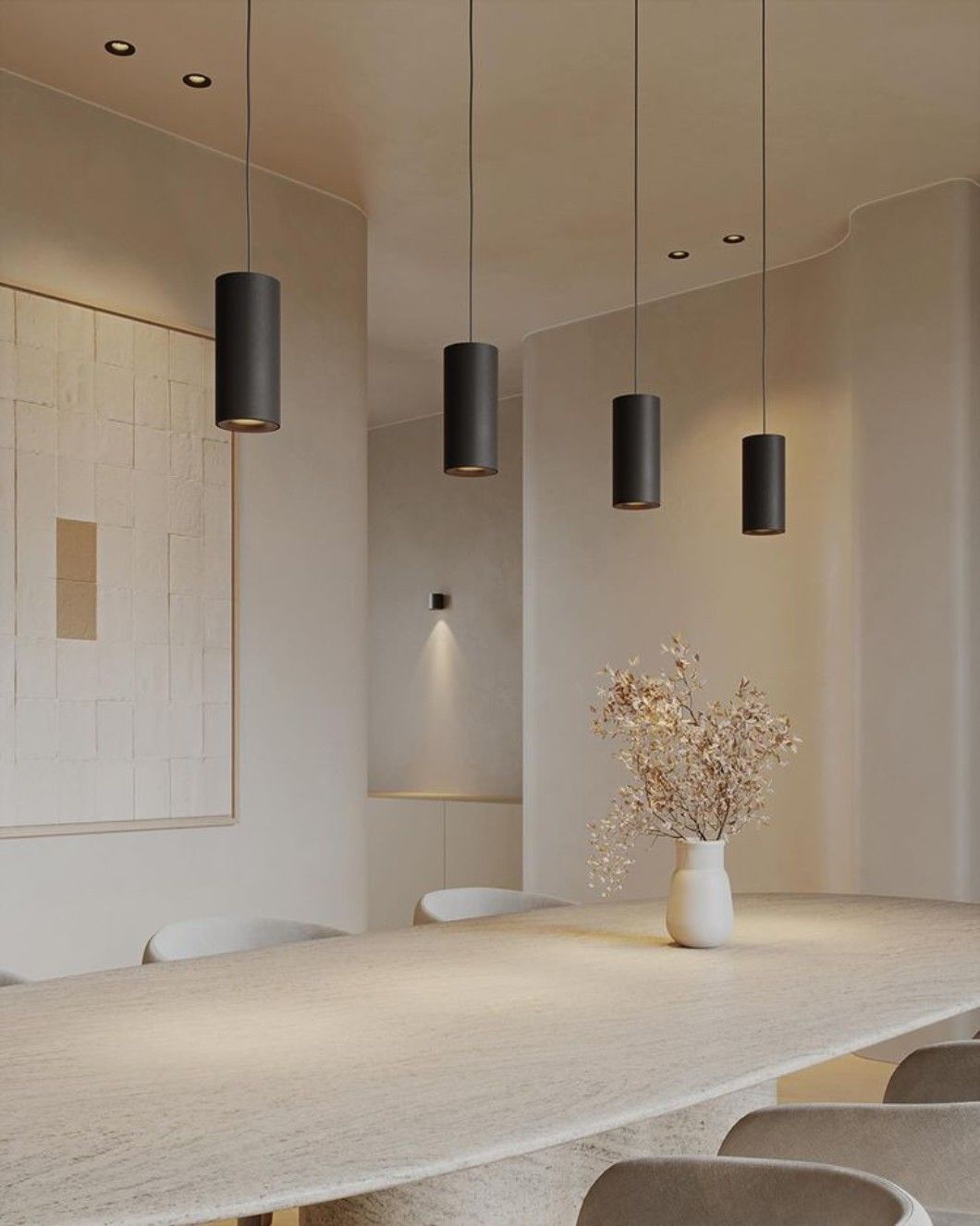

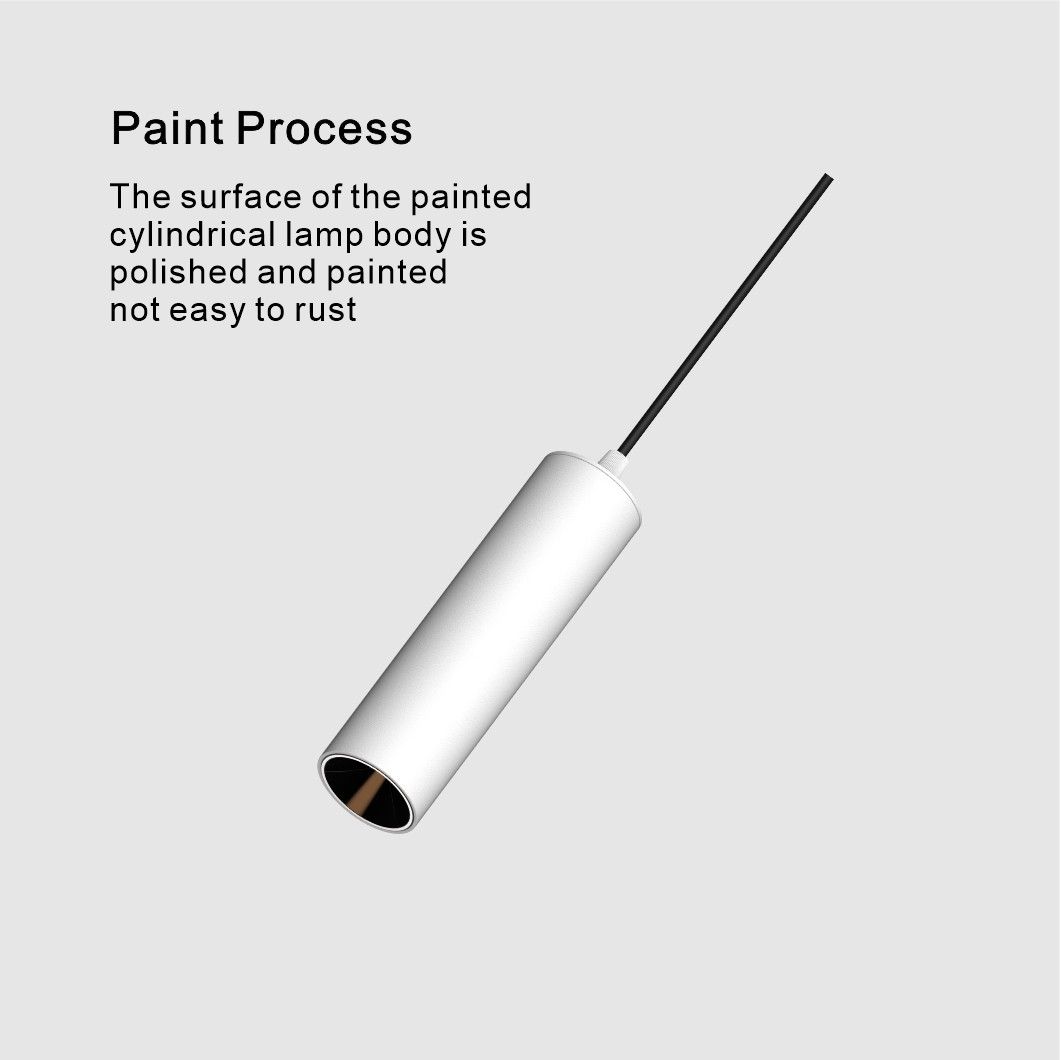

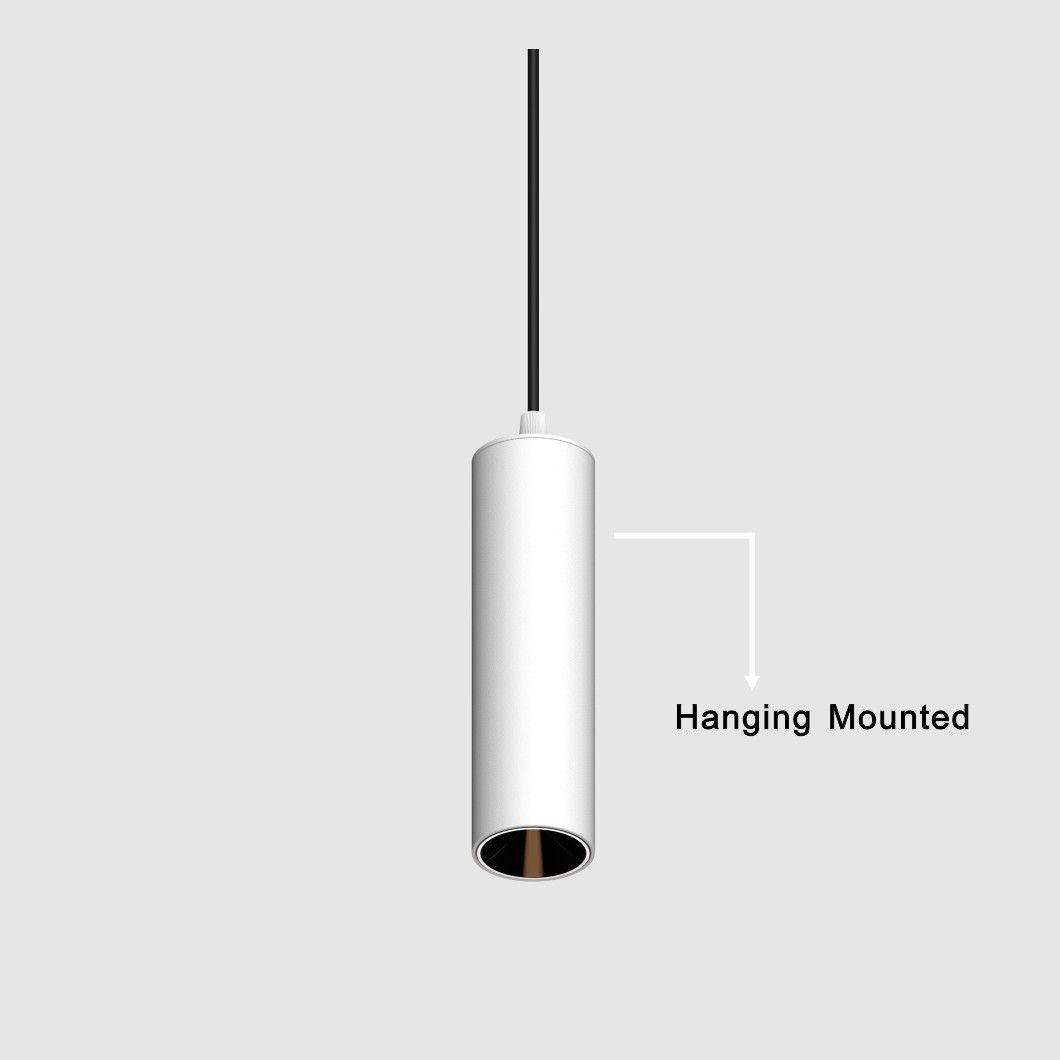

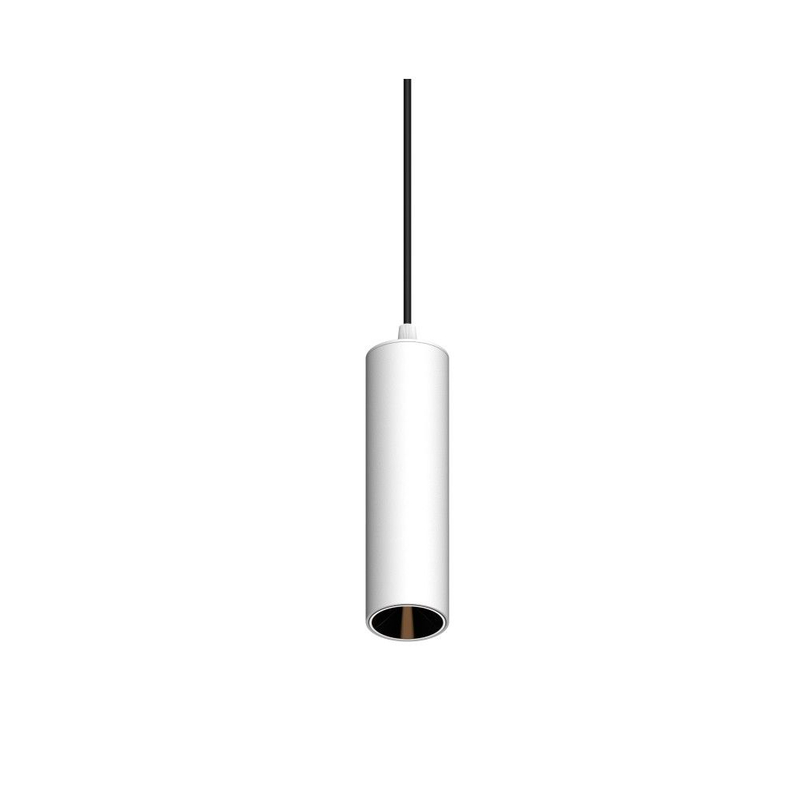

| Hanging Mounted | ||||
| Model | Power | Product Size | Direction | Shape |
| FL-GAORHA-07W | 7W | φ55*137mm | Adjustable | Round |
| FL-GAORHA-10W | 10W | φ55*172mm | ||

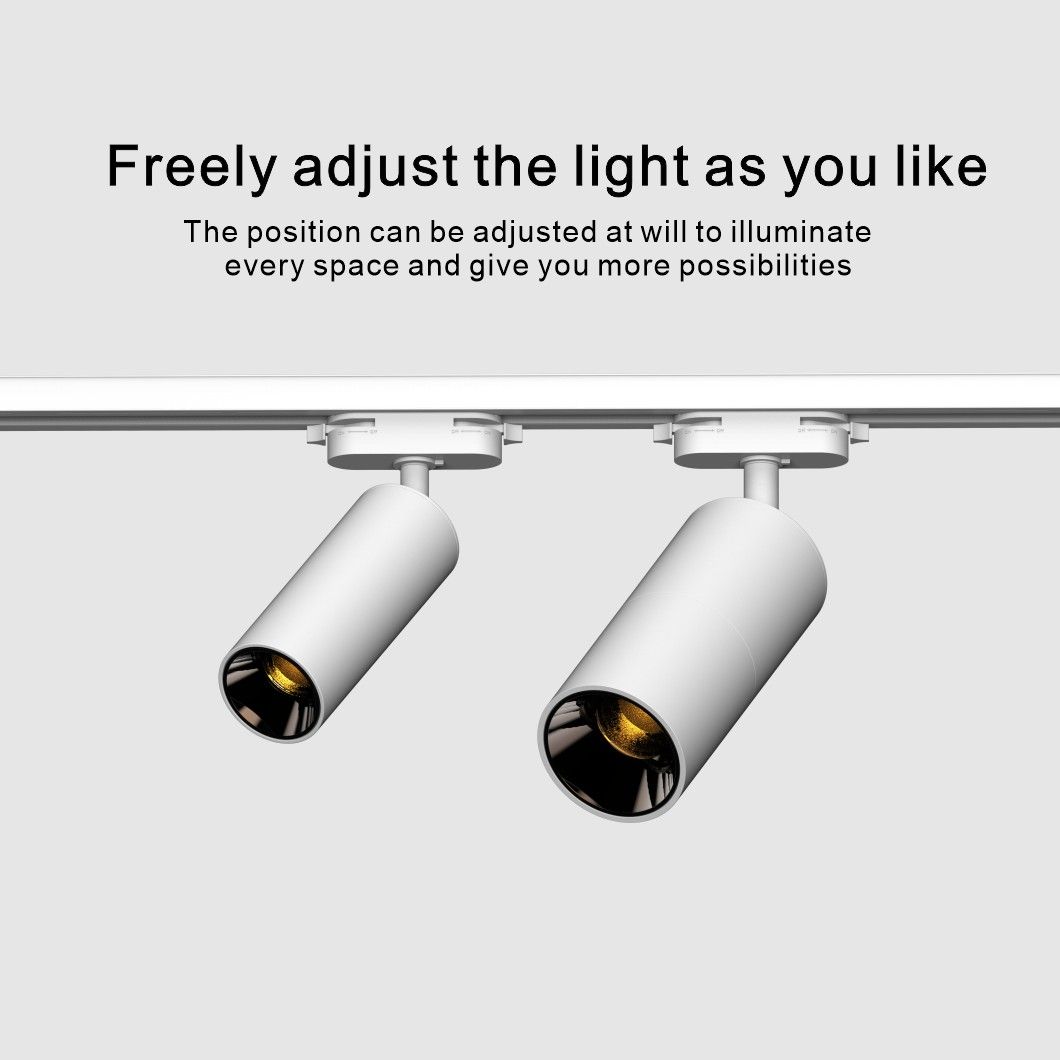

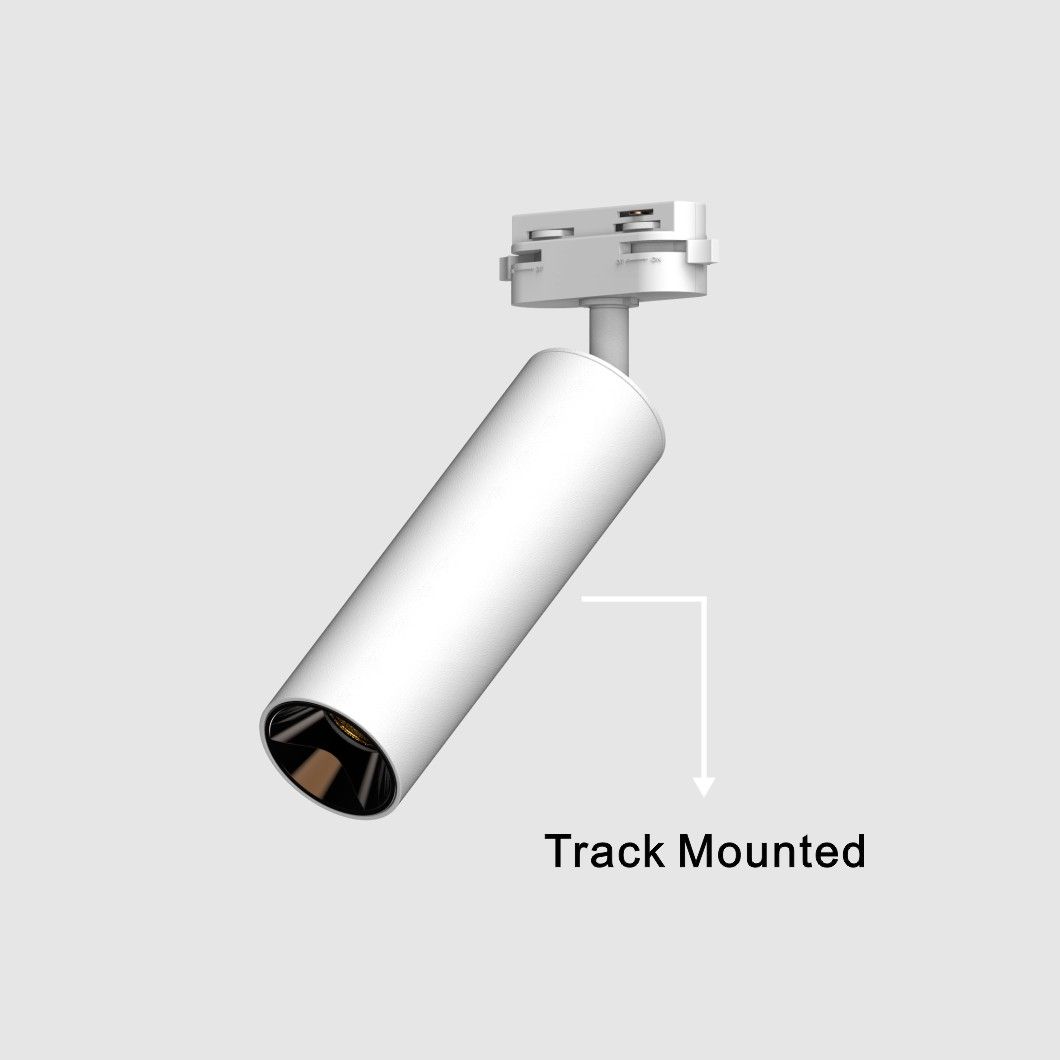

| Track Mounted | ||||
| Model | Power | Product Size | Direction | Shape |
| FL-GAORTRA-07W | 7W | φ55*137mm | Adjustable | Round |
| FL-GAORTRA-10W | 10W | φ55*172mm | ||
Application：
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
