Outdoor Airport Sport Field Court 1000 Watt 1000W 1200W 1440W High Mast LED Stadium Light for Football Field

Watt:
Efficiency:
Light Source:
Beam Angle:
Warranty:
Quantity:
  • HMC-720W/960W/1200W/1440W
  • FOCUS-LIGHTING Manufacturer

led high mast flood light


Specifications

Model HMC-720W HMC960W HMC1200W HMC-1440W
Watt 720W 960W 1200W 1440W
Lumen 111,600lm 148,800lm 186,000lm 223,200lm
N.W 23kgs 27kgs 31.5kgs 37kgs
LED Lumileds 5050
Beam Angle 10/20/40/60/90/140*100/135*60/30*70 degree
CCT 2700K, 3000K, 4000K, 5000K, 5700K, Red, Green, Blue
CRI Ra70, Ra80, Ra90 option
Driver MEAN WELL, SOSEN
Input Voltage AC100-277V
PF >0.9
IP/IK Rate IP65/IK08
Wind Rate 51-56m/s
Certificate CE, RoHS, LVD, EMC, UL, TUV
Warranty 5-7 years

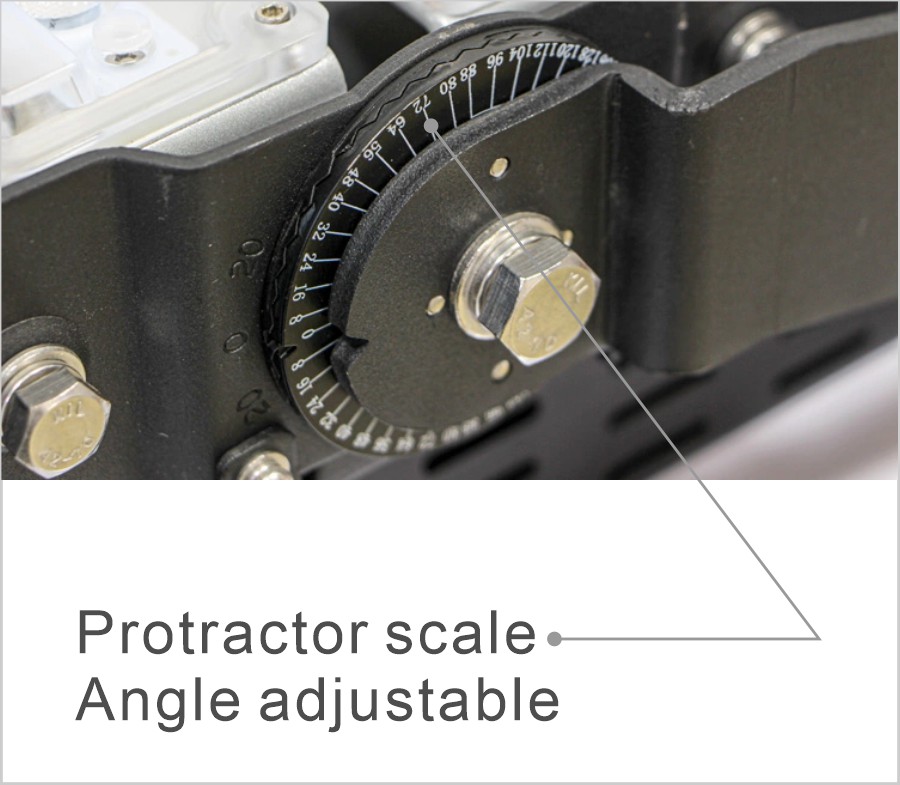

Angle adjustable PC LENS pure aluminum

Features:

> IP65 rated LED floodlight

> Rotatable modules offering maximum customisation

> Heavy duty stirrup mounting bracket

> Multiple optics available

> Can be installed as a floodlight or high bay

> Flicker-free cold start, and industry-leading 160Lm/W.

> Protractor scale for easier aiming

> 50,000-hour operating life means years of maintenancefree operation.

> Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.

> Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.


Electrical:
> MEAN WELL/SOSEN driver
> Power: 720W-1440W optional.
> Direct wire rang voltage AC100~277V.
> Power Factor : >0.9
> Power efficiency: >90%
> IP65, IP08

Optical:
> Top Brand Lumileds 5050 LEDs, 150-160lm/w.
> CCT 2700K-6500K optional, other color customized.
> CRI: Ra70, Ra80

> Dimmable, Non-dimmable

1440W led highmast light heat sink

Dimension

720W led highmast light960W led highmast light

1200W led highmast light1440W led highmast light

Beam Angle

10/20/40/60/90/120/140*100 degree option

led high mast flood light beam angle

All Beam angle .ies file for DIALux

718_high mast light lighting simulation


Adjustable Mount

led highmast light adjustable mount


Application

Outdoor lighting, Security lighting, Industrial lighting, Sports field lighting, Construction lighting, Highmast lighting, Tunnel lighting, High mast lighting.

led high mast light application
