IP66 20W 30W 40W 50W 60W 80W 100W 120W 150W 180W 200W Street Road Lamp LED Street Light

Watt:
Efficiency:
Light Source:
Beam Angle:
Warranty:
Quantity:
  • SSL-20W/30W/40W/50W/60W/80W/100W/120W/150W/180W/200W
  • FOCUS-LIGHTING Manufacturer

MINI LED STREET LIGHT

Specifications

Model SSL-Mini Model SSL-Midel Model SSL-Large Model
Watt 20W, 30W, 40W, 50W, 60W 80W, 100W 120W, 150W, 180W, 200W
Lumen 2,800lm-9,600lm 10,800lm-17,000lm 16,200lm-32,000lm
Dimension 491*190*82mm 547*240*82mm 549*280*92mm
G.W 3kgs 5kgs 6.5kgs
LED Lumileds 3030 for 130lm/w & 150lm/w, Lumileds 5050 for 165lm/w
CCT 4000K, 5000K, 6000K
CRI Ra70, Ra80
Driver Sosen, MEAN WELL
Input Volt
Sosen Driver AC100-240V, AC100-305V
PF >0.9
IP/IK IP66, IK08
Certificated CE, RoHS, SAA, TUV, LVD
Warranty 5 years

LED STREET LIGHT FEATURE 1 LED STREET LIGHT FEATURE 2 LED STREET LIGHT FEATURE 3

Features:

> IP66 IK08 rated LED stree light.

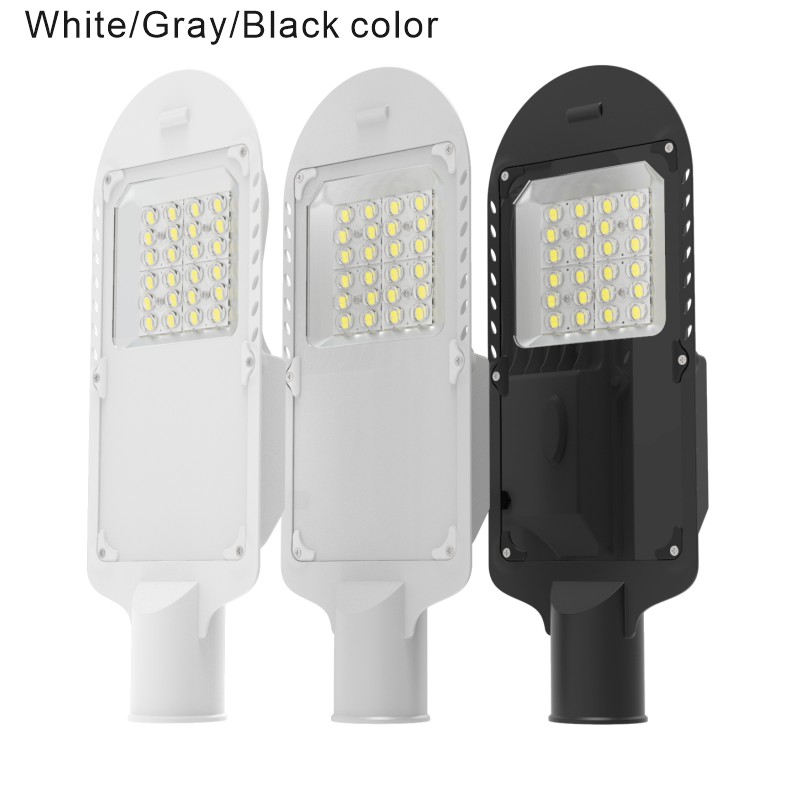

> White, Gray, Black housing option.

> 20-200W available for any place. (Mounting Height: 4-12M)

> Modern appearance, streamlined design, the shell is made of die-casting aluminum which durable, fast air flow and large heat dissipation area.

> Use tempered glass + lens In order to prevent the lens turning into yellow.

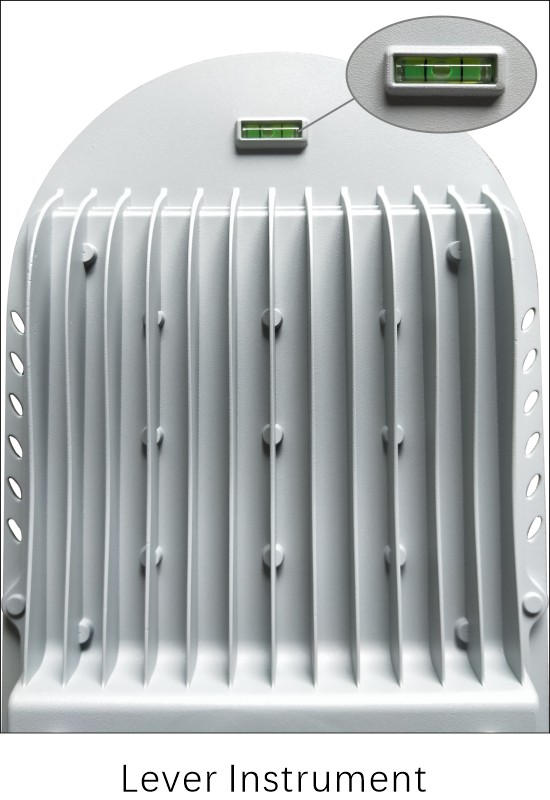

> The level instrument accurates the installation of lamps.

>The unique breathing valve design keeps the air circulating inside and outside the lamp without condensation.

> Flicker-free cold start, and industry-leading. High luminaire efficiency up to 130lm/w, 150lm/w, 165lm/w.

> 50,000-hour operating life means years of maintenancefree operation.


Electrical:
> MEAN WELL/SOSEN driver
> Power: 20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W optional.
> Direct wire rang voltage AC100~240V, AC100-305V.
> Power Factor : >0.9
> Power efficiency: >90%
> IP65, IP08

Optical:
> Top Brand Lumileds 3030/5050 LEDs, 130lm/w, 150lm/w, 165lm/w option.
> CCT 4000K-6000K optional, other color customized.
> CRI: Ra70, Ra80

> Dimmable, Non-dimmable

1 road lamp led street light2 road lamp led street light3 road lamp led street light4 LED STREET LIGHT waterproof6 LED STREET LIGHT waterproof7 LED STREET LIGHT waterproof

Dimension

20W 30W 40W 50W 60W MINI LED STREET LIGHT80W 100W MINI LED STREET LIGHT

120W 150W 180W 200W MINI LED STREET LIGHT

Beam Angle

Type II, Type III degree option, all power & beam angle .ies file for DIALux available.

Type 2 II  Type 3 III


Application

Roadway lighting, Area Lighting, City lighting, Parking lot Lighting, Outdoor landscape Lighting.

LED STREET LIGHT application

Package

Model Watt Carton Size G.W/Unite Qty/20ft Container
Mini Model 20W/30W/40W/50W/60W 57*26*14cm
3.3kgs 1400pcs
Middle Model 80W/100W 62*32*15cm 5.3kgs 900pcs
Larger Model 120W/150W/180W/200W 62*35*16cm
6.8kgs 800pcs

Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
