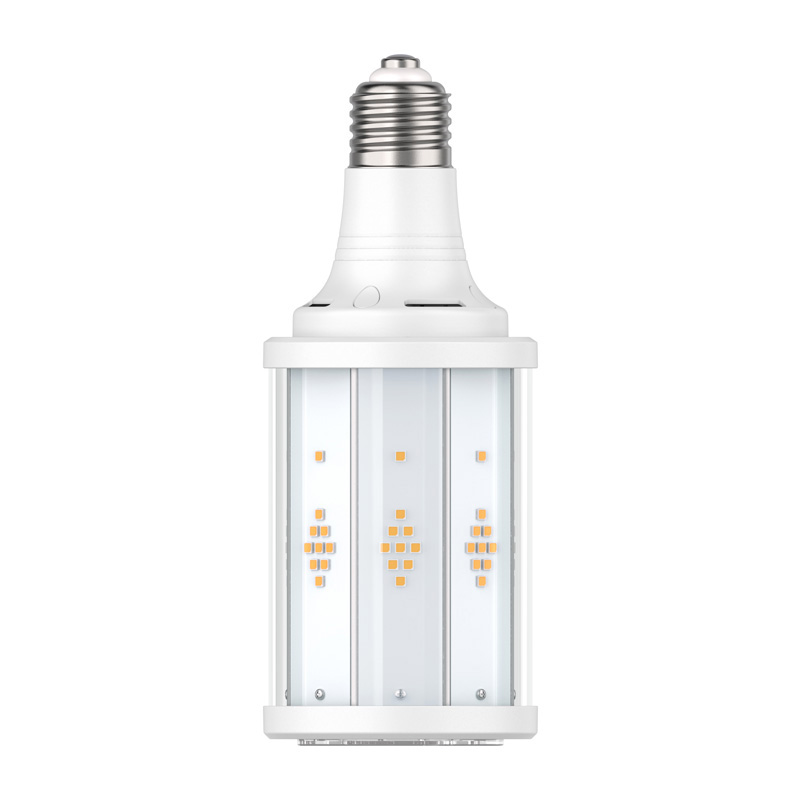

High Power 35W 50W 80W 160lm/w LED Corn Bulb E27 E40 Metal Halide Bulb LED HID Bulb for Street Light HPS Replacement

Watt:
Lumen:
Input Voltage:
Base:
Warranty:
Availability:
Quantity:
  • WYX-35/50/80W-160R

  • LED HID BULB SUPPLIER

LED Replacement Halogen

Why design and produce this bulb?
We produce LED corn bulb for traditional lamp replacement since 2013. At that time, we mainly produced 12-54w corn Bulbs for 3-50w CFL and 50-135w HPL replacement. We serve a lot of distributors and project contractor. Some of the project contractor want higher power LED bulb to replace 250W-400w HPL, 150W-400W SON, 175W-1000w MHL bulb, so there are many 80-200w corn lamps in the market.

But the high-power LED bulbs on the market have these problem:
1. The size of high-power LED bulbs is too big,bulbs cannot put inside the old fixtures.
2. The weight of high-power LED bulbs is too heavy, E base is falling down and potential safety problems.
3. LED bulb replaces traditional lamp, and the light distribution is poor.

So in 2017, we designed this small size and high lumen LED bulb with the help of our customers, which is called genius bulb by our customers.


Specification

Model WYX-35W-160R WYX-50W-160R WYX-80W-160R
Watt 35W 50W 80W
Lumen 5600lm (135lm/w) 8000lm (135lm/w) 12800lm (135lm/w)
Product Size Dia70 x L175mm Dia70 x L195mm Dia70 x L205mm
Weight 0.45kg 0.52kg 0.62kg
Input Voltage AC90-265V, 50/60Hz
Power Factor >0.95
Base E26, E27 screw base, E39, E40 adapater
LED chips PHILIPS 3030 SMD
CCT 2200k, 2700k, 3000k, 4000k, 5000k, 6000k, other color customized
CRI Ra70
Beam Angle 360 degree
Cover Clear cover
IP Rating IP54
Ambient Temp -20℃-55℃
Rate Lifespan 50,000+ hours
Certificate CE, RoHS, EMC, LVD
Warranty 3 years


Dimension:

35W 50W 80W R 160LPW LED HID BULB


Features:

> Design for small & enclosed lighting fixture.
> Mainly to replace HID, HPL, SON, MHL bulb.
 (for High Pressure Mercury lamp, High Pressure Sodium lamp, Metal Halide Lamp replacement)
 Especially used for Post top, High bay, Floodlight, Street Light fixtures.
> E26, E27,E39 or EX39 base available
> Flame retardant material
> Life Span: 50000 hours, @25°C
> 3-5 years warranty.

Electrical:
> Self design internal led drivers with high quality components
> Power: 24W-175W optional.
> Direct wire rang voltage AC90~305V.
> Power Factor : >0.95
> Power efficiency: >90%
> 6KV, 10KV suger protection

Optical:
> High bright 3030 LEDs, up to 160lm/W.
> CCT 2200K-6000K optional, other color customized.
> CRI: Ra70/Ra80
> Bean angle 360°




Installation

LED corn light installation

Application

Based on different places, according to the installation height and lux requirements, choose different models and brightness of lights. You can tell us your request, we recommend the right one for you.

Feedback from our customers, our corn lights are useful in these places: street, shoebox, garden, walkpack, high bay, road, area lighting, shoe box, flood light, cobra head, pathway, parking lot, garage backyard, wall pack, post top, industrial, gas station, lawn, bollard, backyard, park, low bay, courtyard, canopy, barn porch, lotus, Post Top, Security Lighting, Warehouse Lighting, Bollards/Walkways, Historic / Vintage Fixtures, Explosion-Proof Fixtures, Decorative Lighting, Jelly Jar Lights, Wall Packs, Recessed Cans, Stairwells/Corridors, Freezers & Cold Storage, Driveways, Walkways, Commercial, Industrieanlagen, Werkstatten, Lagerhallen, Offentlichen, industriellen, industriomraden, gardsbelysningar, industriele hanglampen, fabriekshallen, loodsen, warenhuizen, koelhallen.

35W 50W 80W LED HID BULB Application



Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
