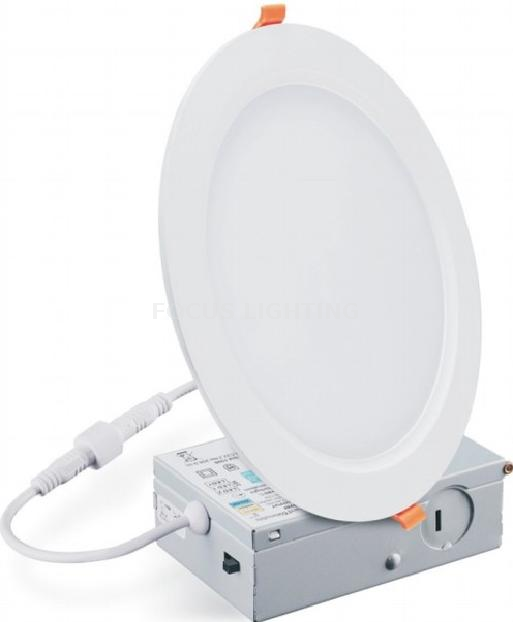

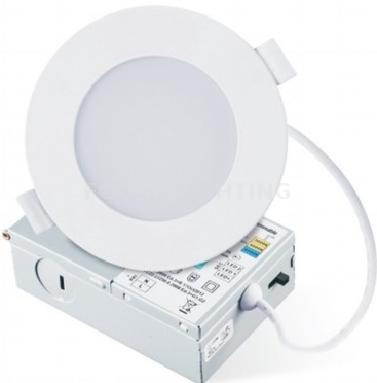

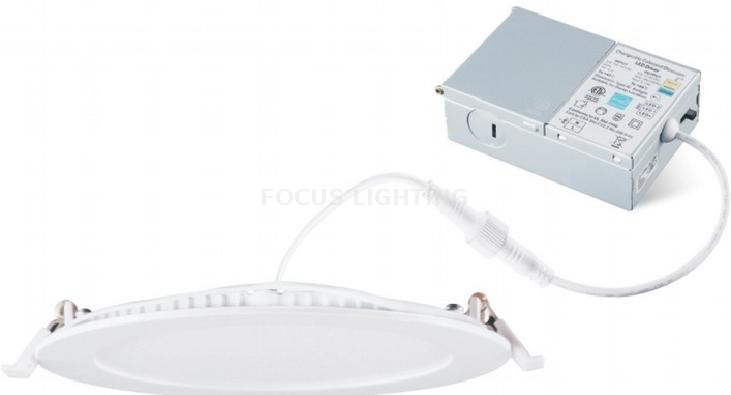

ETL Approval 3'', 4'', 5'', 6'', 7'', 8'' , 8.5'' , 11'' Slim Panel Light

Share to:

ETL TUV CE Approval 3'', 4'', 5'', 6'', 7'', 8'' , 8.5'' , 11'' Slim Panel Light

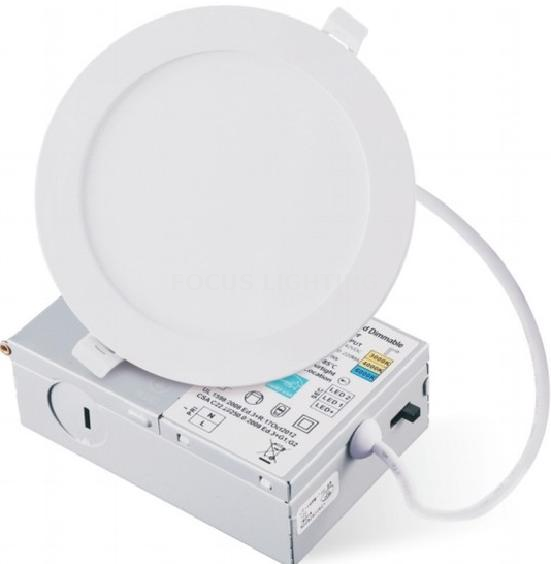

ETL TUV CE Approval Slim LED Panel Light
3CCT
5CCT
Triac dimmable

Watt:	5W/9W/10W/12W/15W/18W/20-25W/24W
Efficiency:	80-1000lm/w
CRI:	Ra80/ Ra90
Voltage:	100-130V 100-277V 100-347V
Warranty:	5 years
Availability:

Quantity:



Inquire Add to Basket

Model:
P02103 / P02104 / P02105 / P02106 / P02107 / P02108 / P021085 / P02111
Brand:
FOCUS-LIGHTING SUPPLIER

Product Description

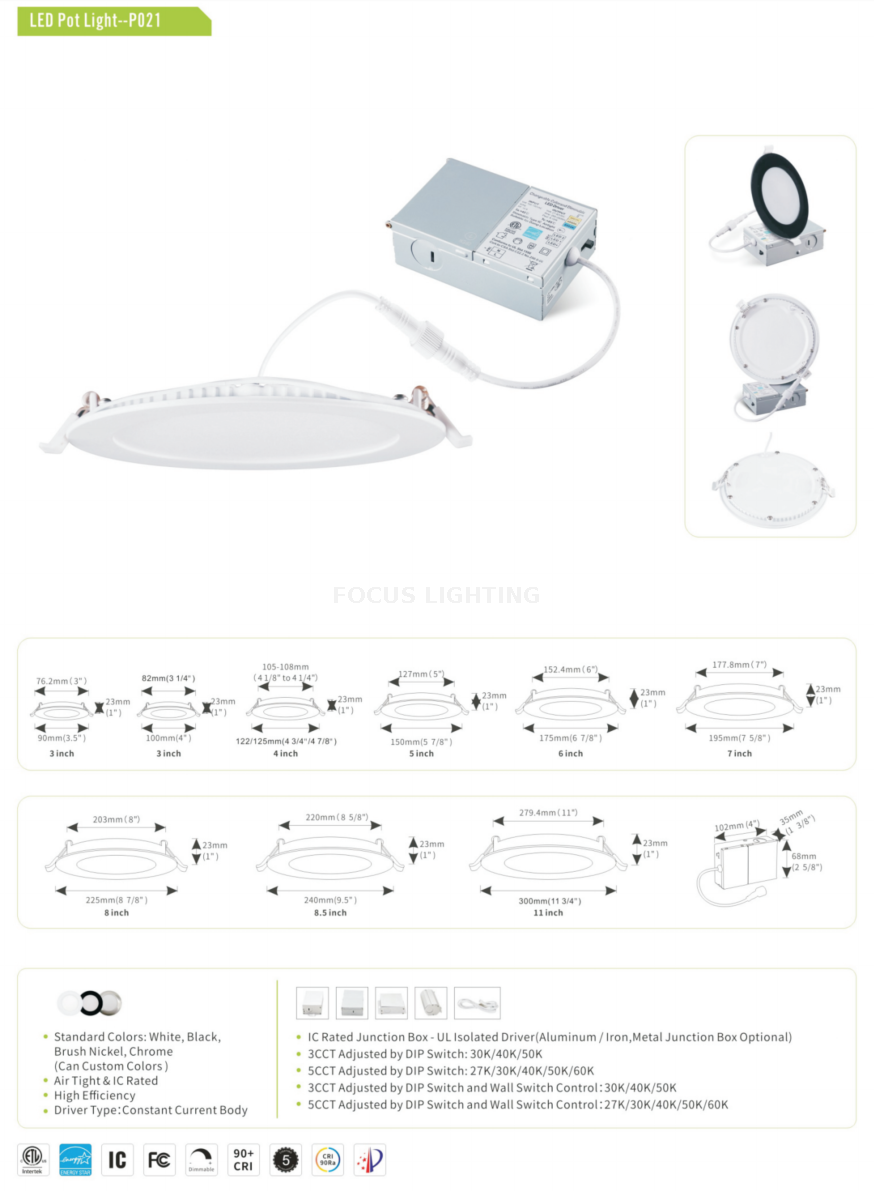

Slim panel light specification

Specifications

Model	P02103	P02104	P02105	P02106	P02107	P02108	P021085	P02111
Size	3 inch	4 inch	5 inch	6 inch	7 inch	8 inch	8.5 inch	11 inch
Watt	5W	9W	10W	12W	15W	18W	20-25W	24W
Lumen	80-100lm/w
Beam Angle	110°
Voltage	AC110-130V / AC100-277V / AC100-347V
CCT	2700-6500K, 3CCT: 30K/40K/50K, 5CCT: 27K/30K/40K/50K/60K
CRI	Ra80 / Ra90
Driver	ETL / TUV CE Approval
PF	>0.9
IP	IP20
Function	On/Off, Triac Dimmable
Certificate	CE, RoHS, TUV, ETL
Warranty	5 years

Features:

> SMD2835 LEDs

> 3CCT or 5CCT adjustable

> ETL, TUV- CE, RoHS Approval

> 5-year warranty

Electrical:

> Power: 5W, 9W, 10W, 12W, 15W, 18W, 20-25W, 24W.

> Input voltage: AC100-130V, AC100-277V, AC100-348V.

> Power Factor : >0.9, THD<15%.

> Power efficiency: >90%.
> Function: ON-OFF, TRIAC dimming

Application

> Replacement for fluorescent troffer.

> Offices/Schools.

>Hospitals /Retails

>Corridors /Stairwells.

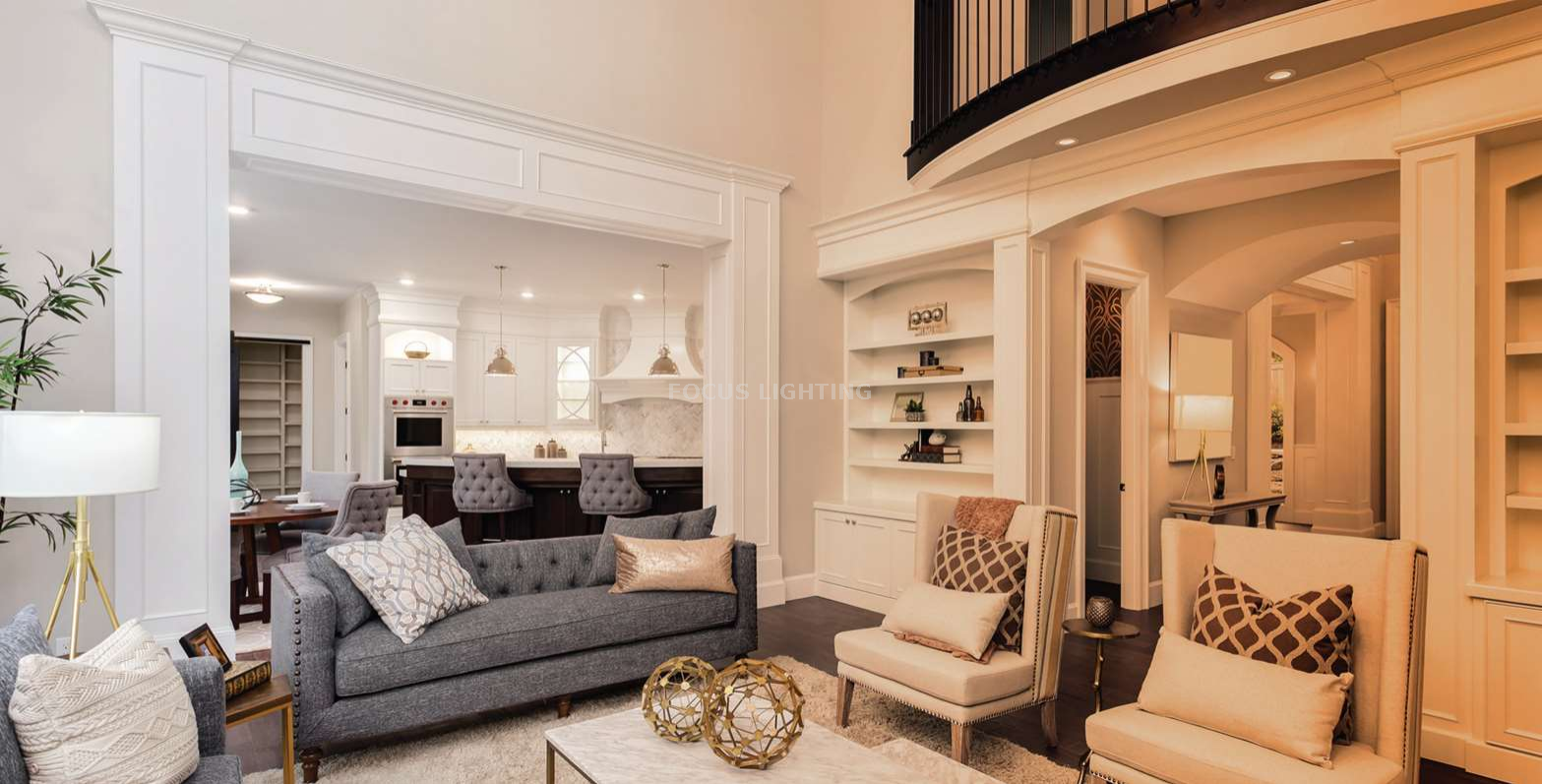

Panel light application

Installation

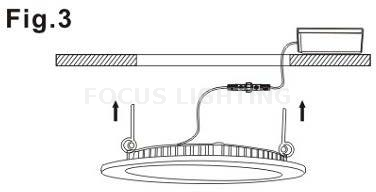

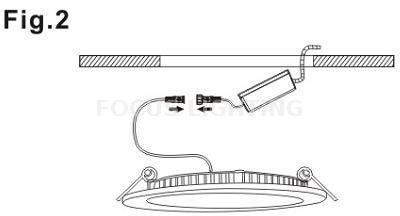

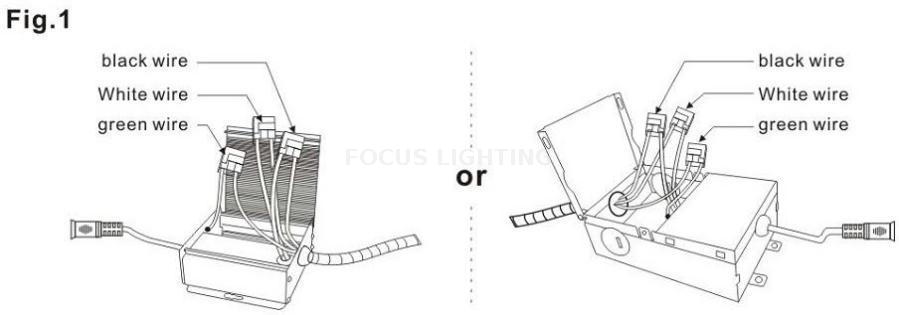

installation 1 installation 2 installation 3

Installatio

Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
