Commercial 60x60 30x120 60x120 Celing Ceiling Lights Lighting Backlit LED Flat Panel Light

Watt:
Efficiency:
CRI:
UGR:
Warranty:
Quantity:
  • TR22-30XN1 -BN
  • FOCUS-LIGHTING SUPPLIER

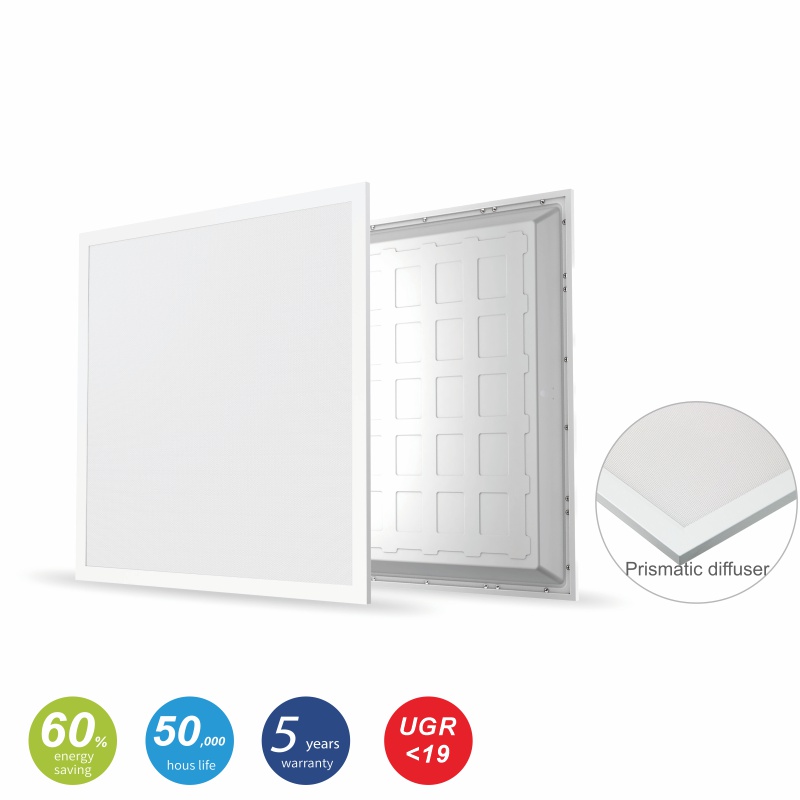

411_15 LED Backlit panel light


Specifications

Model PN22-30XN1-BN PN41-30XN1-BN PN62-30XN1-BN PN42-50XN1-BN
Product Name 600x600 300x1200 620x620 600x1200
Watt 30W 30W 30W 50W
Lumen 3600lm(120lm/w) 3600lm(120lm/w) 3600lm(120lm/w) 6000lm(120lm/w)
Size 2*2ft(595*595mm) 1*4ft(295*1195mm) 2*2ft(620*620mm) 2*4ft(595*1195mm)
Net Weight 1.85kg 1.85kg 1.95kg 3.55kg
Light Guide Plate PS UGR>19, Prismatic UGR<19, TP(a) Fire-proof, TP(a) Fire-proof +Prismatic UGR<19
CCT WW: 3000K, NW: 4000K, PW: 5000K, CW: 6000K, Tri-color: 3000K/5000K mixed4000K
CRI Ra80, SDCM<5
Driver BOKE, Flick Free (no flicker)
Input Voltage AC200-240V, AC100-277V
PF >0.9
IP IP20
Function on/off, 0-10v dimming, DALI dimming, Emergency
Certificate CE, RoHS, TUV, UL
Warranty 5 years

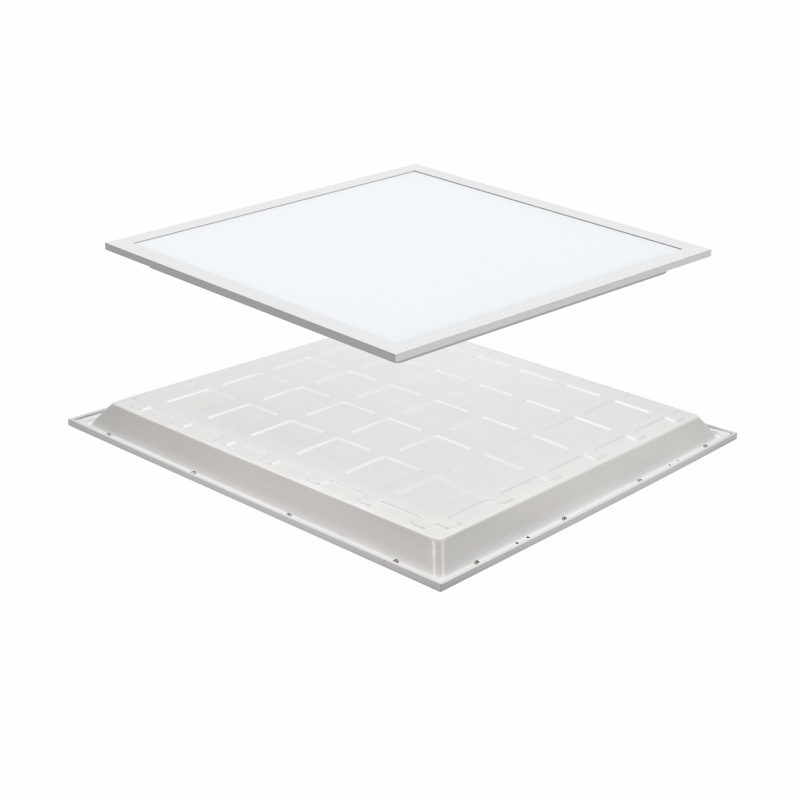

Backlit Design

To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 180° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.

944_06 LED Backlit panel light  414_8 LED Backlit panel light

613_10 LED Backlit panel light  496_11 LED Backlit panel light

Features:

> Own designed ultra flat casing:32mm

>180° degree lens on PCB for Uniform lighting

> Various of different functions

> Tri-color is avaiable

>UGR<19, TP(a) Fire-proof

> 5 years warranty


Electrical:
> Power: 30W, 50W.
> Input voltage: AC100-130V, AC200-240V.
> Power Factor : >0.9, THD<15%.
> Power efficiency: >90%.
> Function : ON-OFF, 1-10V dimming, DALI, Emeegency.
> Starting Time: <0.5S.
> Switching Cycle before Failure: >100,000 times.
> Emergency: 3W 3 hours emergency kit, 6W 3 hours emergency kit.

Optical:

> High bright 2835 SMD LEDs, 105lm/w, 120lm/w, 140lm/w optional.

> CCT: WW:3000K, NW: 4000K, PW: 5000K, CW: 6000K, Tri-color:3000/5000K, Mixed:4000k.

> CRI: Ra80 or CRI90.

> Bean angle: 120°, 90° UGR<19.


Dimension

12 LED Backlit panel light

Application

> Replacement for fluroescent troffer.

> Offices/Schools.

>Hospitals /Retails

>Corridors /Stairwells.

LED Backlit panel light application


Wire Method

13 LED Backlit panel light

Installation

14 LED Backlit panel light

Package

Product Type Power Carton Size Qty/Carton Unite N.W G.W/Carton
600x600mm 30W 61.5*43*65cm 10pcs 1.85kgs 23.75kgs
620x620mm 30W 65.5*44.5*67cm 10pcs 1.95kgs 24.5kgs
300x1200mm 30W 128*23*33cm 5pcs 1.85kgs 12kgs
600x1200mm 50W 128*23*63cm 5pcs 3.55kgs 24kgs
