Han series
Focus Lighting Manufacturer

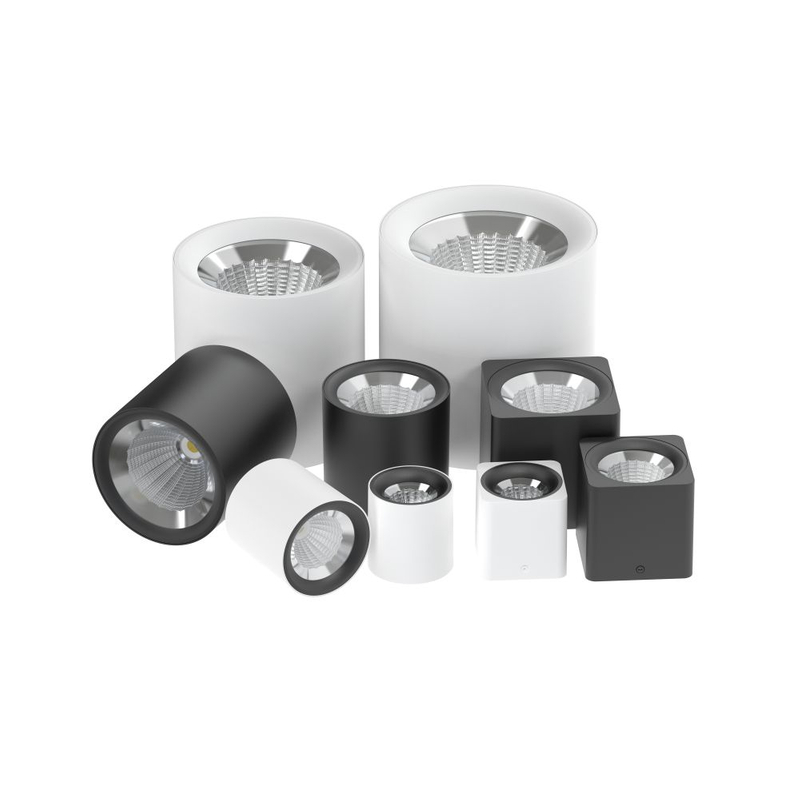

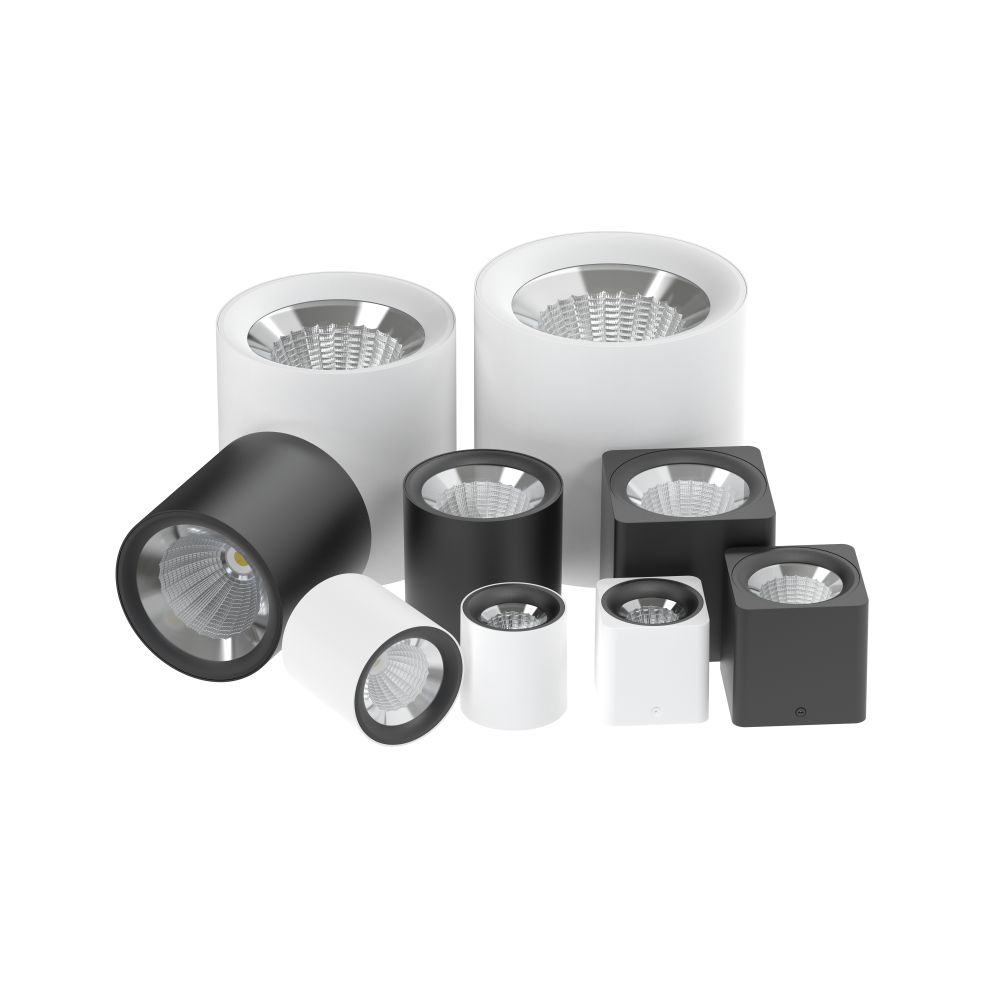

HAN SERIES
Big can 40w Dali Downlight Aging :
Features:
High Efficiency reach to 125lm/w, UGR<19

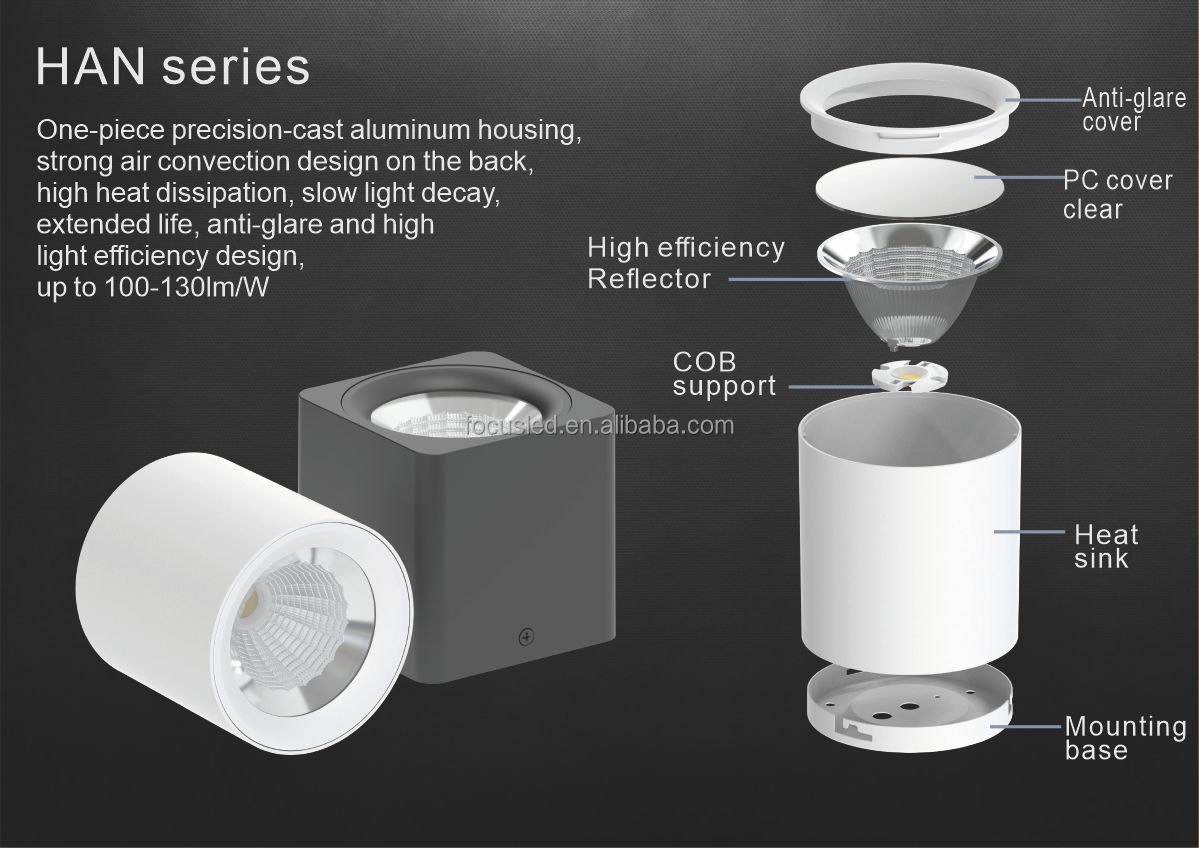

Glass + Aluminum material, high quality

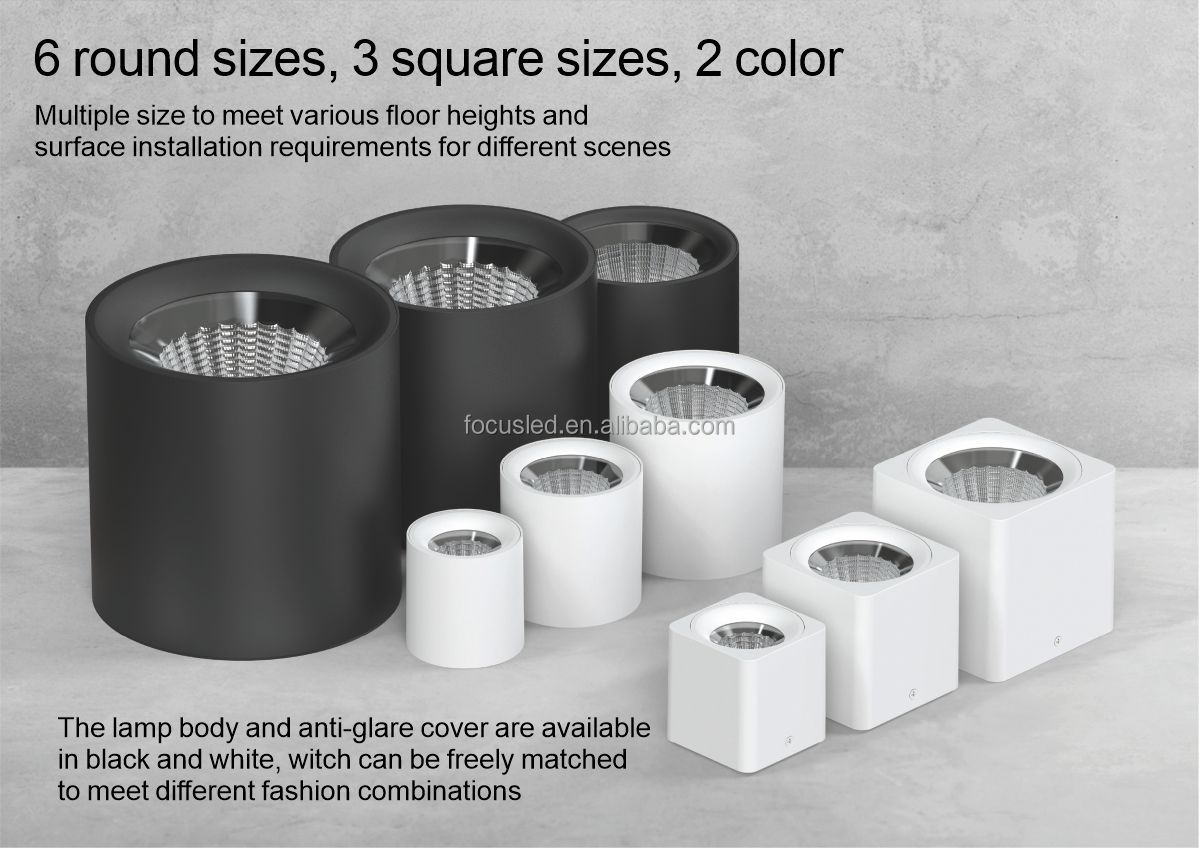

Power: 10W, 15W, 20W, 30W, 40W, 60W

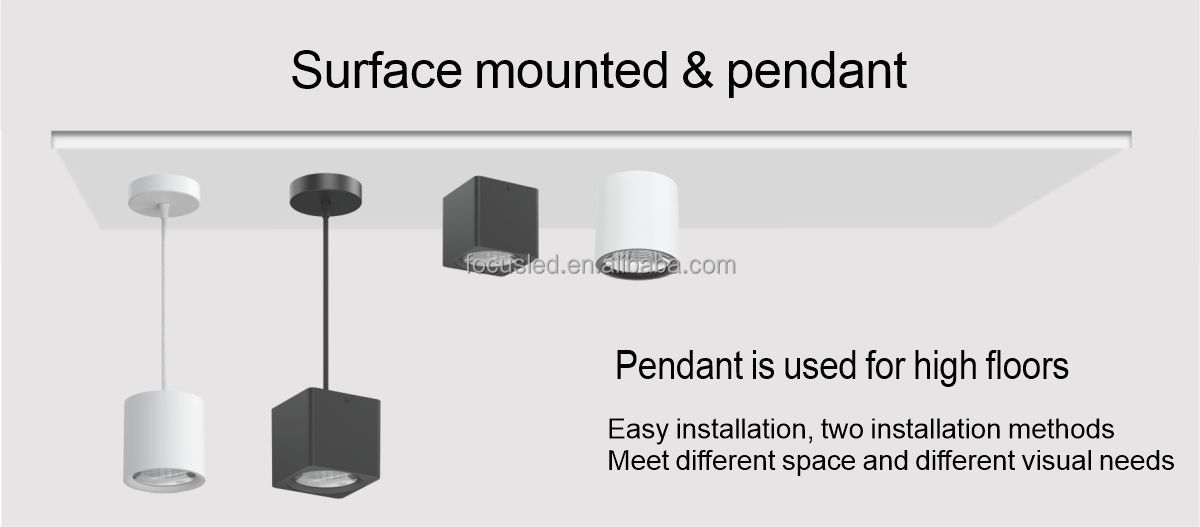

Recessed, Surface or Pendant Installation
Input Voltage：AC110V, AC220V, DC24V, DC48V
Lighting Efficiency：125lm/w
CCT：2700K, 3000K, 3500K, 4000K, 5000K, CCT tunable
CRI (Ra>)：Ra80, Ra90, Ra97
Working Temperature(ºC)：-25ºC-45ºC
Working Lifetime(Hour)：50,000h
IP Rating：IP20(IP65 customized)
Beam Angle(°)：Lens 20°/40°/45°/60°
Function：ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee / PHILI P Hue dimming
Housing Color：White/ Black Housing
Warranty：5 years

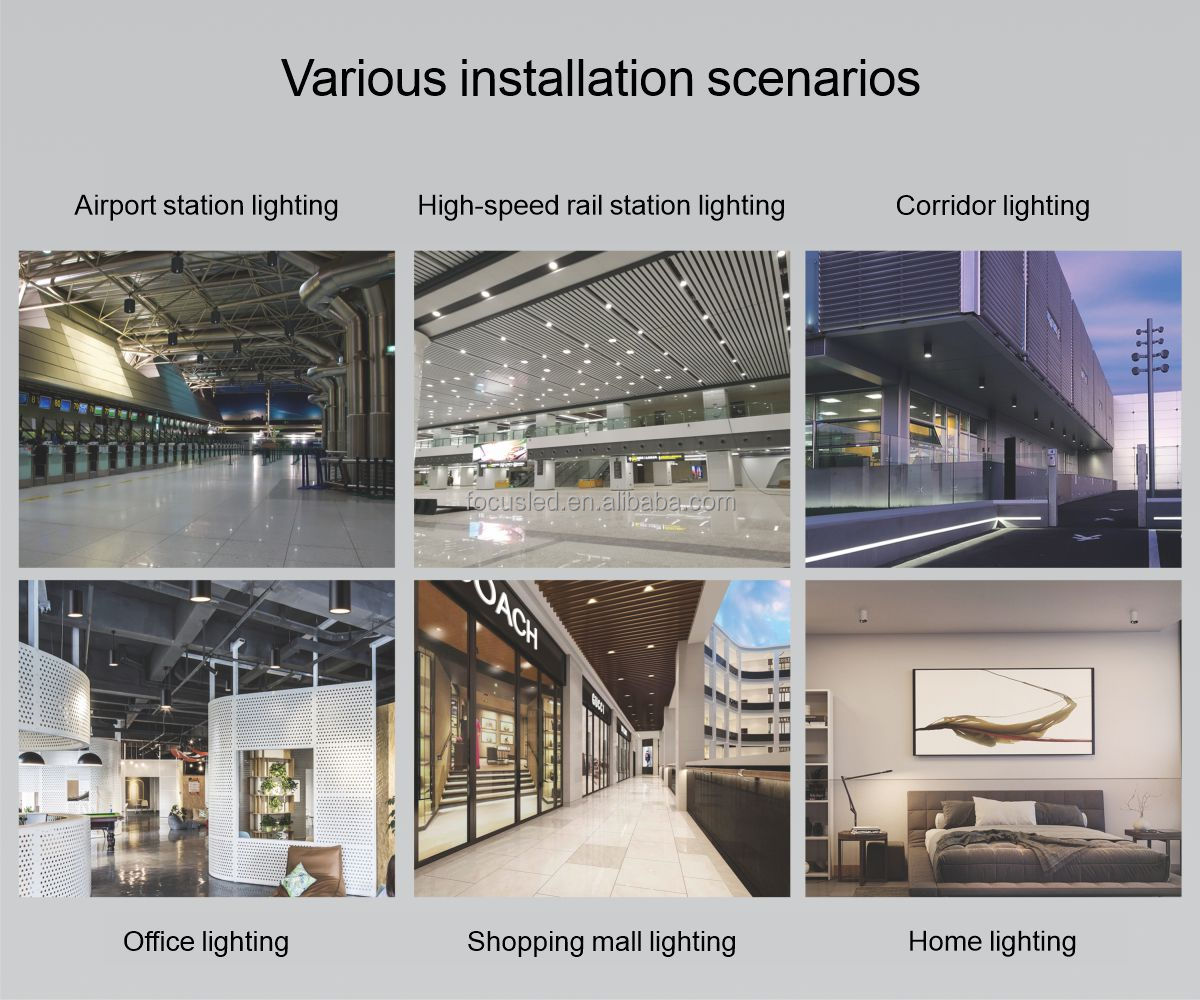

Application：Hotel, Mall, Supermarket, Living room, Villa, Apartment, Office Building
Specifications：
| Recessed Mounted | ||||||
| Model | Power | Product Size | Cuthole | Direction | Beam Angle | Shape |
| FL-HAN75RRF-10W | 10W | φ85*54mm | φ75mm | Fixed | 45° | Round |
| FL-HAN95RRF-15W | 15W | φ105*65mm | φ95mm | |||
| FL-HAN115RRF-20W | 20W | φ131*75mm | φ115mm | |||
| FL-HAN135RRF-30W | 30W | φ150*80mm | φ135mm | |||
| FL-HAN175RRF-40W | 40W | φ191*95mm | φ175mm | |||
| FL-HAN200RRF-60W | 60W | φ215*105mm | φ200mm | |||

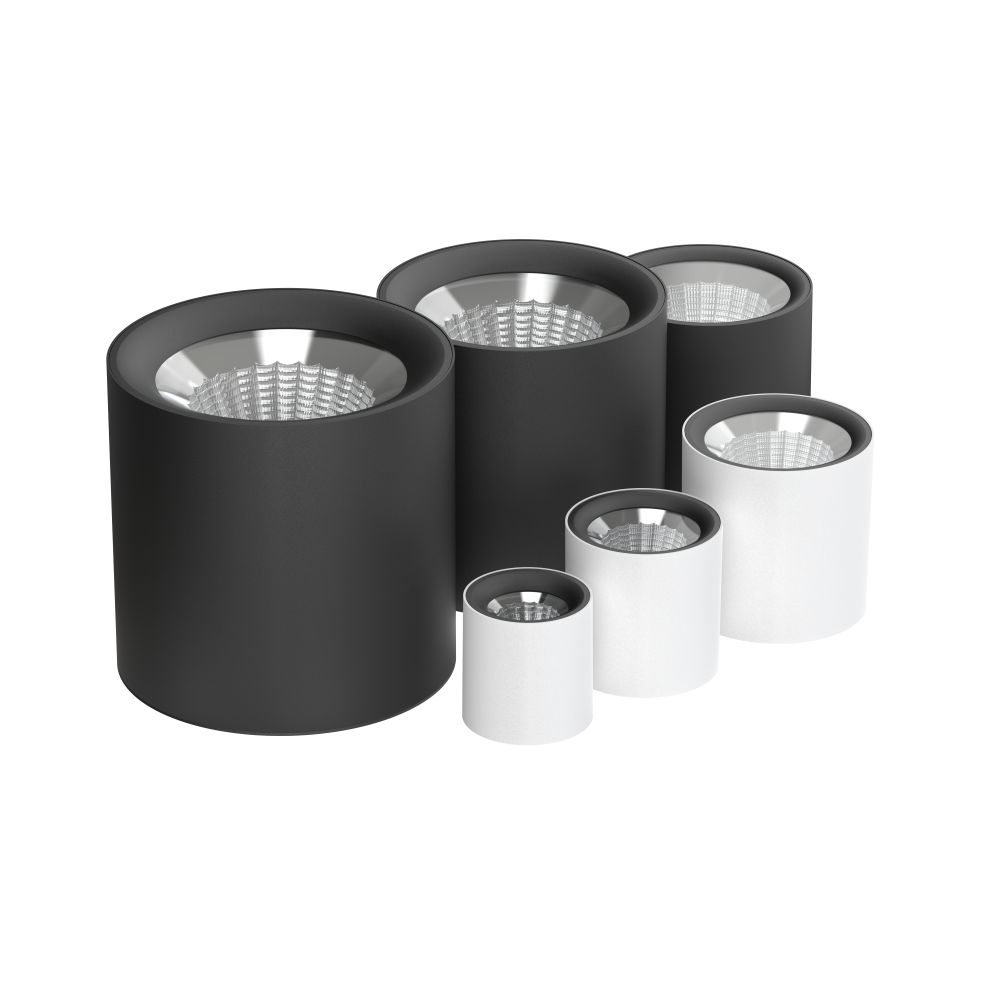

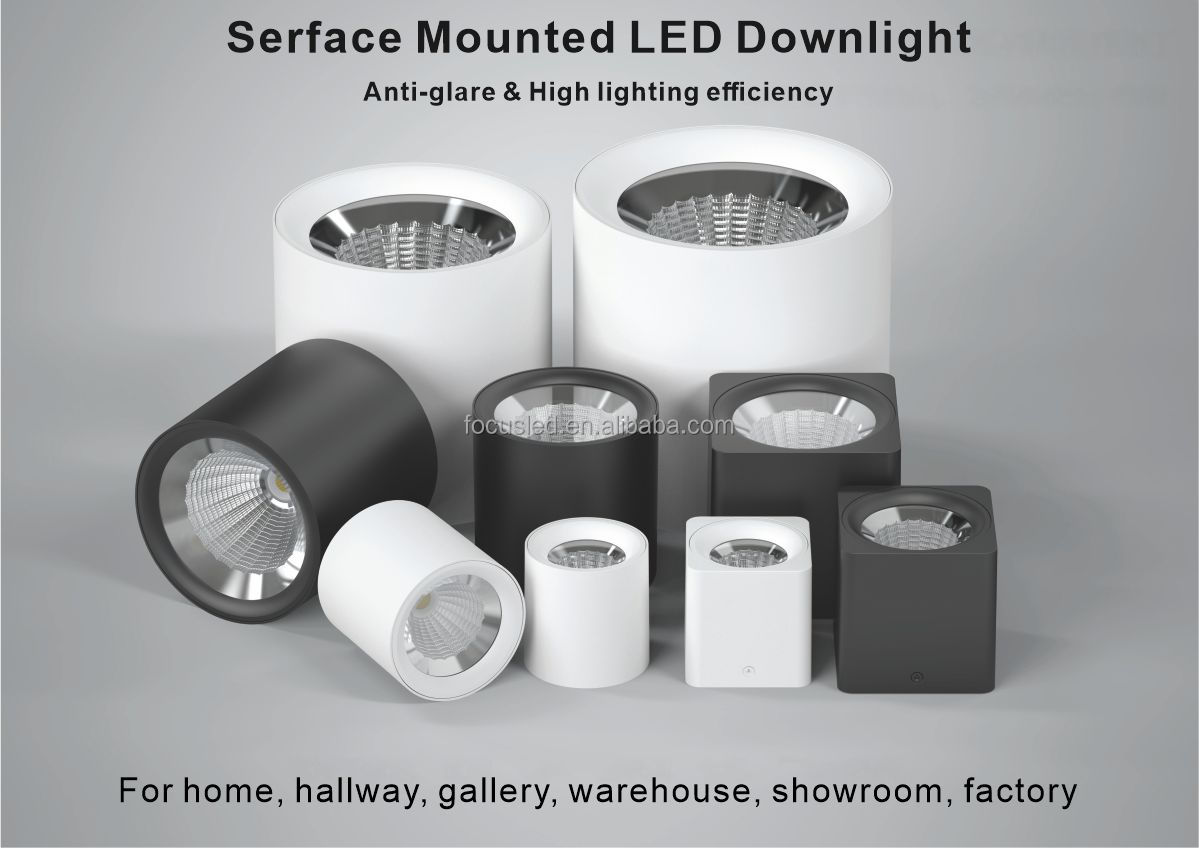

| Surface Mounted | |||||
| Model | Power | Product Size | Direction | Beam Angle | Shape |
| FL-HANRSF-10W | 10W | φ72*H75mm | Fixed | Reflector 20°/40°/60° | Round |
| FL-HANRSF-15W | 15W | φ90*H90mm | |||
| FL-HANRSF-20W | 20W | φ111*H110mm | |||
| FL-HANRSF-30W | 30W | φ130*H130mm | |||
| FL-HANRSF-40W | 40W | φ170*H170mm | |||
| FL-HANSSF-60W | 50W | φ195*H190mm | |||
| FL-HANSSF-15W | 15W | φ72*H75mm | Square | ||
| FL-HANSSF-20W | 20W | φ90*H90mm | |||
| FL-HANSSF-30W | 30W | φ111*H110mm | |||

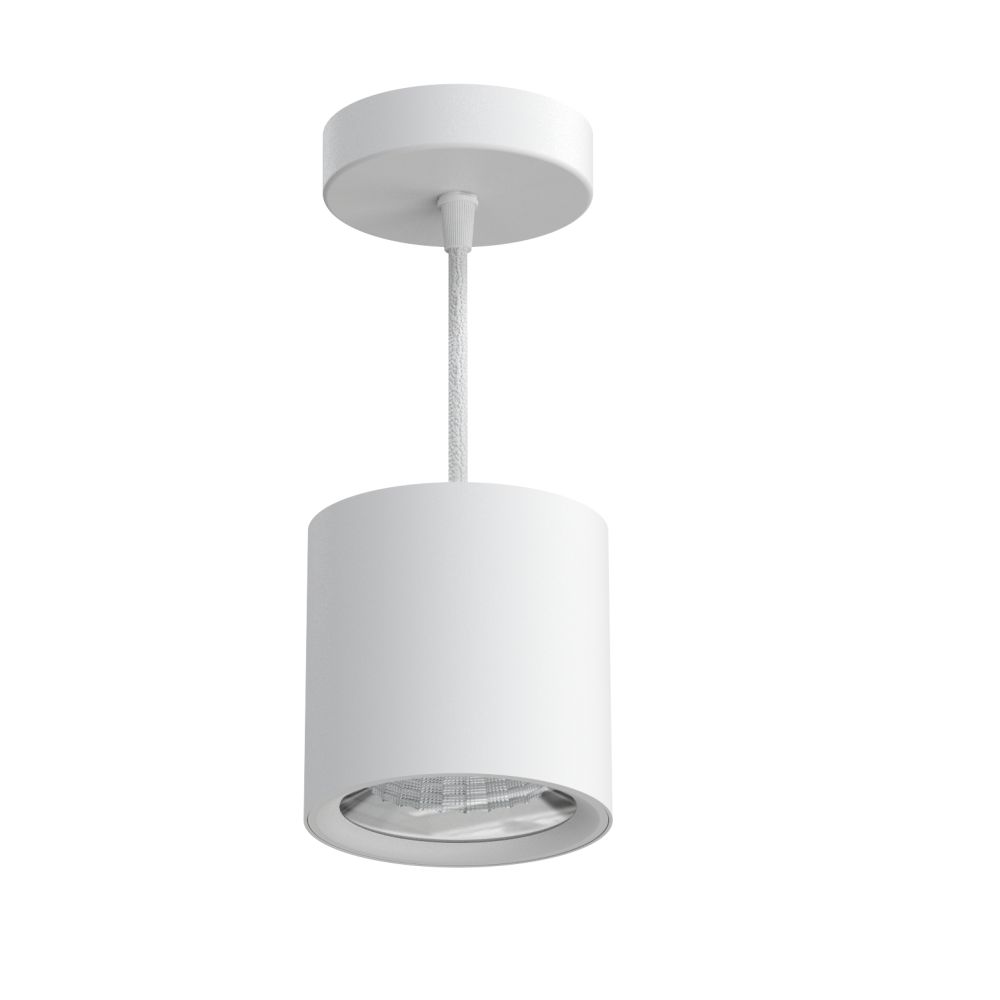

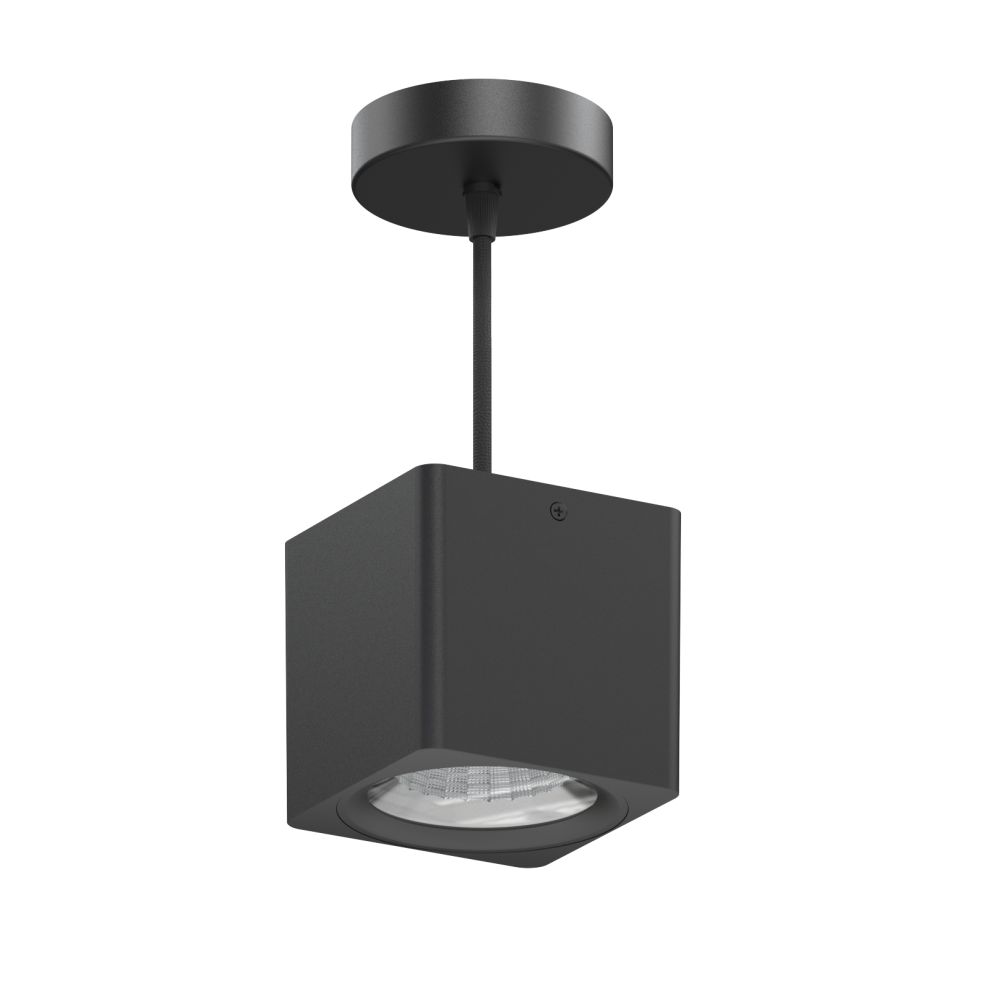

| Hanging Mounted | |||||
| Model | Power | Product Size | Installation | Beam Angle | Shape |
| FL-HANRHF-10W | 10W | φ72*H75mm | Hanging Cable 1 meter | Lens 20°/40°/60° | Round |
| FL-HANRHF-15W | 15W | φ90*H90mm | |||
| FL-HANRHF-20W | 20W | φ111*H110mm | |||
| FL-HANRHF-30W | 30W | φ130*H130mm | |||
| FL-HANRHF-40W | 40W | φ170*H170mm | |||
| FL-HANSHF-60W | 60W | φ195*H190mm | |||
| FL-HANSHF-15W | 15W | φ72*H75mm | Square | ||
| FL-HANSHF-20W | 20W | φ90*H90mm | |||
| FL-HANSHF-30W | 30W | φ111*H110mm | |||
| Wall Mounted | |||||
| Model | Power | Product Size | Direction | Beam Angle | Shape |
| FL-SONGRWF-10W | 10W | φ75*H152mm | Fixed | Lens 20°/40°/60° | Round |
| FL-SONGRWF-15W | 15W | φ95*H152mm | |||
| FL-SONGRWF-20W | 20W | φ115*H152mm | |||
Focus Lighting is a professional and trusted LED Smart Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
