Home / product / Industrial Lighting / LED High Mast Light / 300W 600W 900W 1200W 1800W High Mast Pole Sport Arena Portable Used LED Tennis Court Stadium Football Field Lighting for Football Field Tennis Court
Share to:

300W 600W 900W 1200W 1800W High Mast Pole Sport Arena Portable Used LED Tennis Court Stadium Football Field Lighting for Football Field Tennis Court

Watt:
Efficiency:
Light Source:
Beam Angle:
Warranty:
Quantity:
  • DHM-300W/600W/900W/1200W/1800W
  • FOCUS-LIGHTING Manufacturer

12_football field floodlight


Specifications

Model DHM-300W DHM-600W DHM-900W DHM-1200W DHM-1800W
Watt 300W 600W 900W 1200W 1800W
Lumen 45,500lm 91,000lm 136,400lm 182,000lm 273,000lm
N.W 9.3kgs 17kgs 24kgs 32kgs 42kgs
LED Lumileds 5050
Beam Angle 10/20/40/60/90/140*100/135*60/30*70 degree
CCT 2700K, 3000K, 4000K, 5000K, 5700K, Red, Green, Blue
CRI Ra70, Ra80, Ra90 optional
Driver MEAN WELL SOSEN
Input Volte AC100-277V
PF >0..9
IP/IK IP65/IK08
Certificated CE, RoHS, LVD, EMC, UL, TUV
Warranty 5-7 years

led highmast light feature 1 led highmast light feature 2 757_led highmast light feature 3


Features:

> Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion.

> Flexible optical lighting distributions for best in class results.

> Compact and low weight design, easy to transport and install.

> Fully controllable solution enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios.

> Instant start and no flicker, so there is no need to worry about startup issues.

> Flicker-free cold start, and industry-leading 160Lm/W.

> Protractor scale for easier aiming

> 50,000-hour operating life means years of maintenancefree operation.

> 5 years warranty


Electrical:
> MEAN WELL/SOSEN driver
> Power: 300W-1800W optional.
> Direct wire rang voltage AC100~277V.
> Power Factor : >0.9
> Power efficiency: >90%
> IP65, IP08

Optical:
> Top Brand Lumileds 5050 LEDs, 150-160lm/w.
> CCT 2700K-6500K optional, other color customized.
> CRI: Ra70, Ra80, Ra90 option

> Dimmable, Non-dimmable

1800W led high mast light heat sink


Dimension

300W A football field floodlight  300W B football field floodlight

600W football field floodlight  900W football field floodlight

1200W football field floodlight  1800W football field floodlight

Beam Angle

10/20/40/60/90/120/140*100 degree option

led high mast flood light beam angle

All Beam angle .ies file for DIALux

718_high mast light lighting simulation

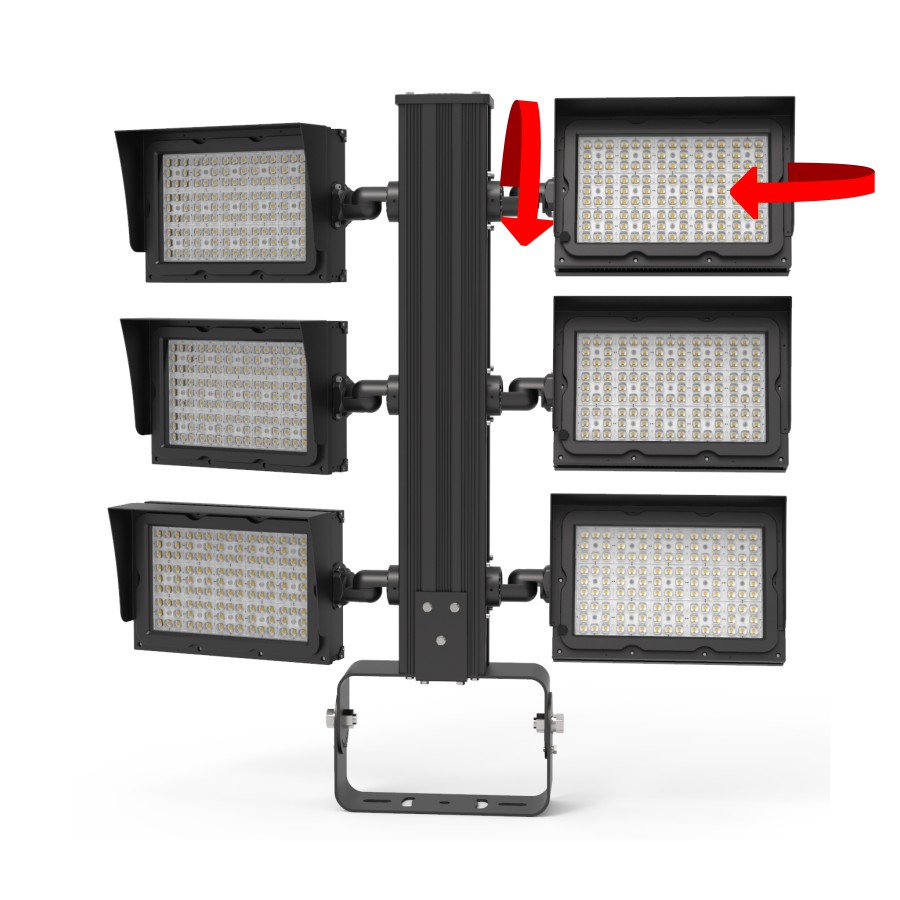

Adjustable mount

led high mast light rotable


Application

Outdoor lighting, Security lighting, Industrial lighting, Sports field lighting, Construction lighting, Highmast lighting, Tunnel lighting, High mast lighting.

led high mast light application

football field floodlight application


Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
