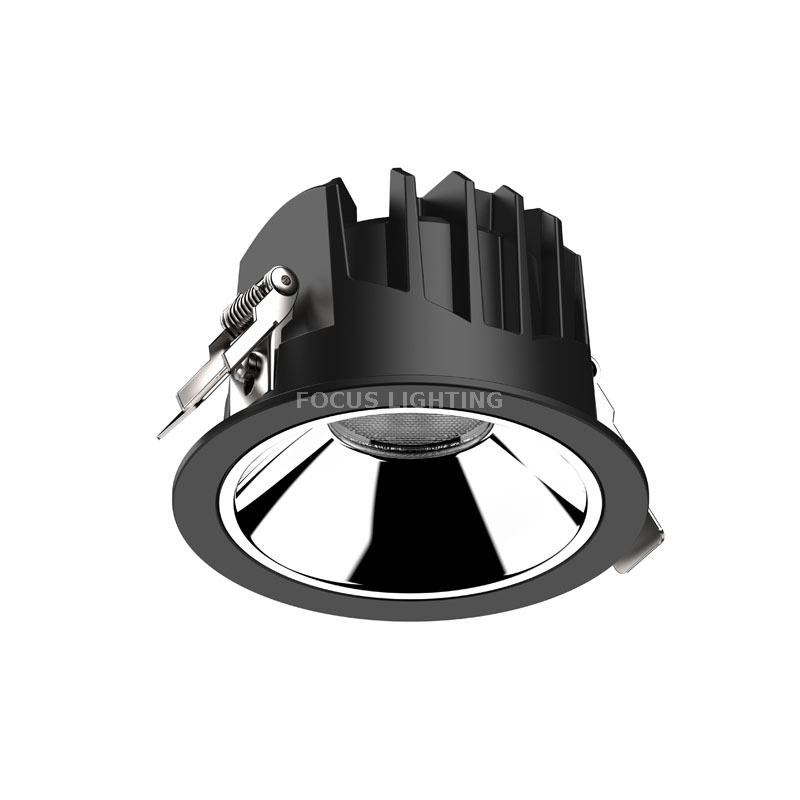

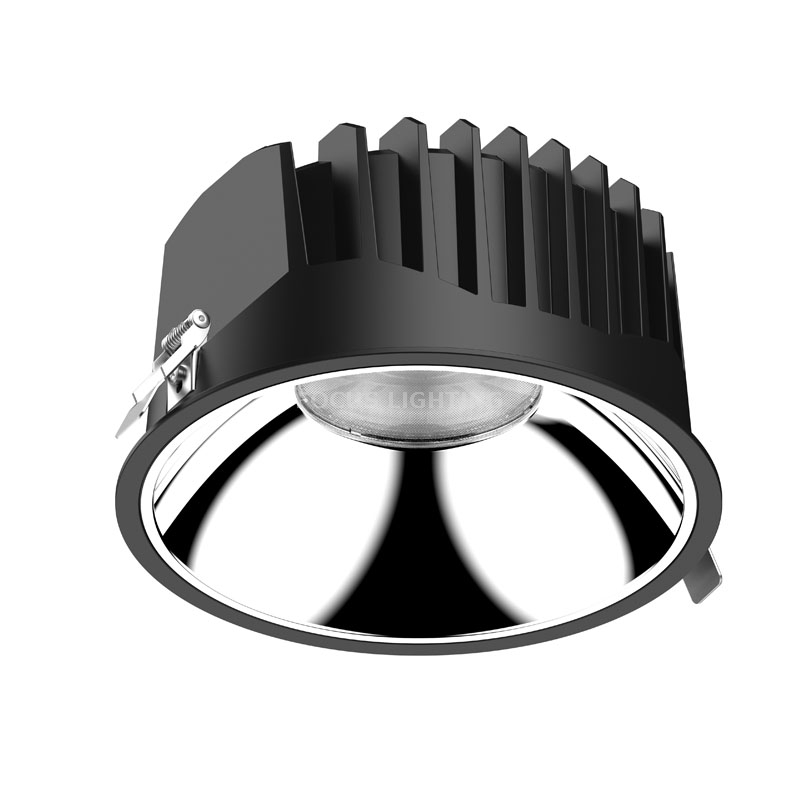

Galaxy Series T8612
FOCUS-LIGHTING Manufacturer
Specifications
| Model | T8612-12W | T8612-15W | T8612-20W | T8612-30W | T8612-40W | ||||
| Watt | 12W | 15W | 20W | 30W | 40W | ||||
Lumen | 1080-1200lm | 1350-1500lm | 1800-2000lm | 2700-3000lm | 3600-4000lm | ||||
| Dimension | Φ86*55mm | Φ101*60mm | Φ140*73mm | Φ180*94mm | Φ212*110mm | ||||
| Cut Hole | 70mm | 85mm | 120mm | 160mm | 195mm | ||||
| COB Brand | OSRAM, LUMILEDS, PHILIPS, CITIZEN | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5700K, 6000K | ||||||||
| CRI | Ra80, Ra90, Ra97 | ||||||||
| Driver Brand | PHILIPS, Tridonic, Lifud, Eaglerise | ||||||||
| Input Voltage | AC100-130V, AC200-240V, AC100-277V | ||||||||
| PF | >0.9 | ||||||||
| Flicker | Flicker Free (No Flicker) | ||||||||
| Function | on/off, 0-10V DIM, TRIAC DIM, DALI DIM | ||||||||
| Certificated | CE, RoHS, LVD, EMC, UL(driver) | ||||||||
| Warranty | 5 years | ||||||||
Application
Anti-glare COB LED downlights are used in five-star hotels, lobbies, 4S shops, shopping malls, clothing stores, airports and other places. It is very atmospheric and does not dazzle the eyes. According to the height of the building, choose the appropriate wattage and beam angle to make the light evenly.
Dimension
Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
Specifications
| Model | T8612-12W | T8612-15W | T8612-20W | T8612-30W | T8612-40W | ||||
| Watt | 12W | 15W | 20W | 30W | 40W | ||||
Lumen | 1080-1200lm | 1350-1500lm | 1800-2000lm | 2700-3000lm | 3600-4000lm | ||||
| Dimension | Φ86*55mm | Φ101*60mm | Φ140*73mm | Φ180*94mm | Φ212*110mm | ||||
| Cut Hole | 70mm | 85mm | 120mm | 160mm | 195mm | ||||
| COB Brand | OSRAM, LUMILEDS, PHILIPS, CITIZEN | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5700K, 6000K | ||||||||
| CRI | Ra80, Ra90, Ra97 | ||||||||
| Driver Brand | PHILIPS, Tridonic, Lifud, Eaglerise | ||||||||
| Input Voltage | AC100-130V, AC200-240V, AC100-277V | ||||||||
| PF | >0.9 | ||||||||
| Flicker | Flicker Free (No Flicker) | ||||||||
| Function | on/off, 0-10V DIM, TRIAC DIM, DALI DIM | ||||||||
| Certificated | CE, RoHS, LVD, EMC, UL(driver) | ||||||||
| Warranty | 5 years | ||||||||
Application
Anti-glare COB LED downlights are used in five-star hotels, lobbies, 4S shops, shopping malls, clothing stores, airports and other places. It is very atmospheric and does not dazzle the eyes. According to the height of the building, choose the appropriate wattage and beam angle to make the light evenly.
Dimension
Focus Lighting is a professional and trusted LED Lighting manufacturer who has a high reputation among Chinese export companies. Our reputation comes from providing high quality and safe products to worldwide customers in different projects to help them relieve customer complaints and achieve success.
